RHZK9/A(CCCF) SCBA comprises full facemask, HUD, demand valve, air cylinder & valve, pressure reducer unit, backplate, electronic pressure gauge.
For fire-fighting.


US 30-day money-back guarantee
物流时间表
售后

DOSEEM RHZK9/A (CCCF) Self-contained Breathing Apparatus

Article number: 01210

Model: RHZK9/A (CCCF)

Standard

GA124:2013

Odoo image and text block

Fulfill the standard

EN 137:2006; GB/16556-2007;  NFPA 1981:2003

Introduction:

DOSEEM RHZK self-contained breathing apparatus is widely used in fire control, chemical, ship, oil, smelting, electric power, warehouse, laboratory, mine and other key departments for fire fighting, fire, gas, steam, and oxygen. It is a safe and effective for fire extinguishing and rescue. An ideal personal breathing protection device.

Recommended field: Fire rescue

Odoo image and text block

DOSEEM RHZK9/A SCBA comprises a full facemask, a HUD, a demand valve, an air cylinder, a pressure gauge cylinder valve, a pressure reducing valve, a high pressure tube, a medium pressure tube, a backplate, a warning whistle and a electronic pressure gauge.

Odoo图像和文字块

               1. Full facemask & HUD

               2. Demand valve

               3. Pressure gauge cylinder Valve

               4. Pressure reducing valve

               5. Electronic pressure gauge

               6. Alarm whistle

               7. High pressure tube

               8. Air cylinder

               9. Medium pressure tube

               10. Fast connector

               11. Backplate

Odoo图像和文字块

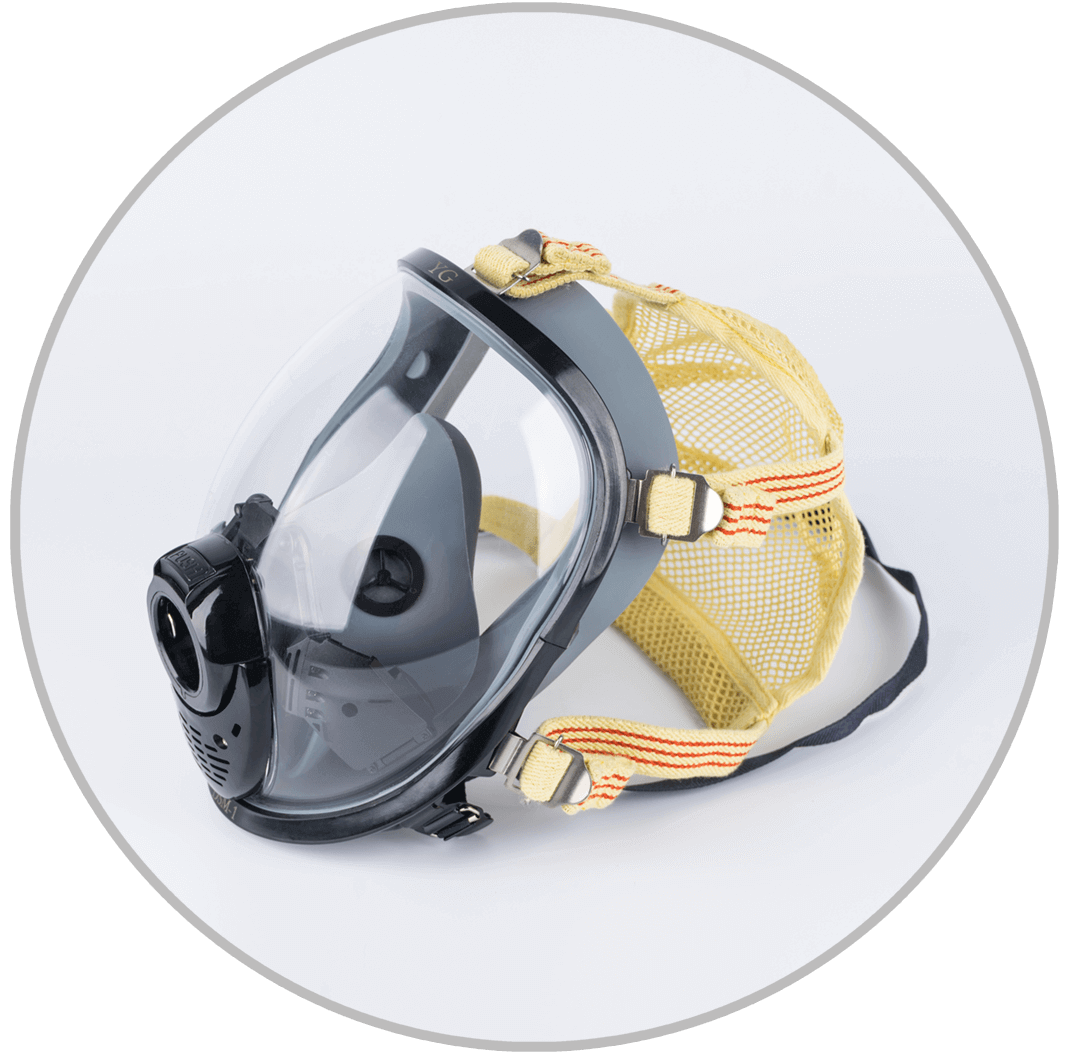

1. Full facemask

The full-face mask is a positive-pressure mask that adopts a single-eye window and a double-layer annular seal, and has the characteristics of wide vision and good transparency. The main frame of the face mask is made of silicone rubber material and has a small mouth nasal mask which is attached to the nose and mouth. It can enhance the full-face mask effective breathing space and reduce respiratory resistance. The face mask is made of polycarbonate, which is always clear, bright and fog-free during use. The head cover is connected with the fast clip with the tightening belt, and the tightening belt can be tightened to make the face mask double seal ring close to the wearer's face so as to ensure the safety of the user's breathing.

More & Tech Datas

Odoo图像和文字块

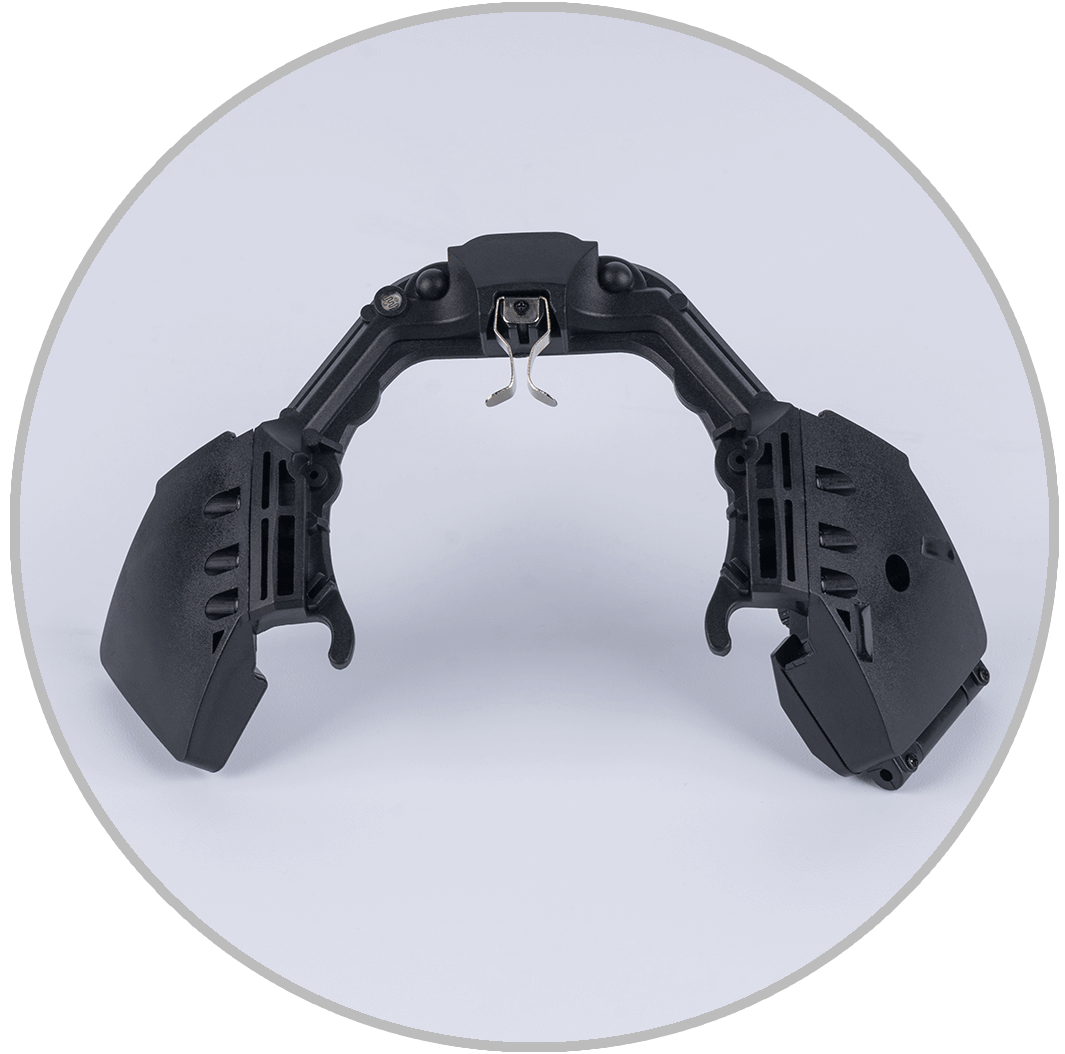

Pressure head-up display device

HUD is mounted on the double current side of the mask, and the color change of the air pressure indicator light can be seen, prompting the use of the gas cylinder. Green light: cylinder pressure above 10MPa; yellow light: cylinder pressure between 10~6MPa; red light: cylinder pressure below 6MPa.

More & Tech Datas

Odoo图像和文字块

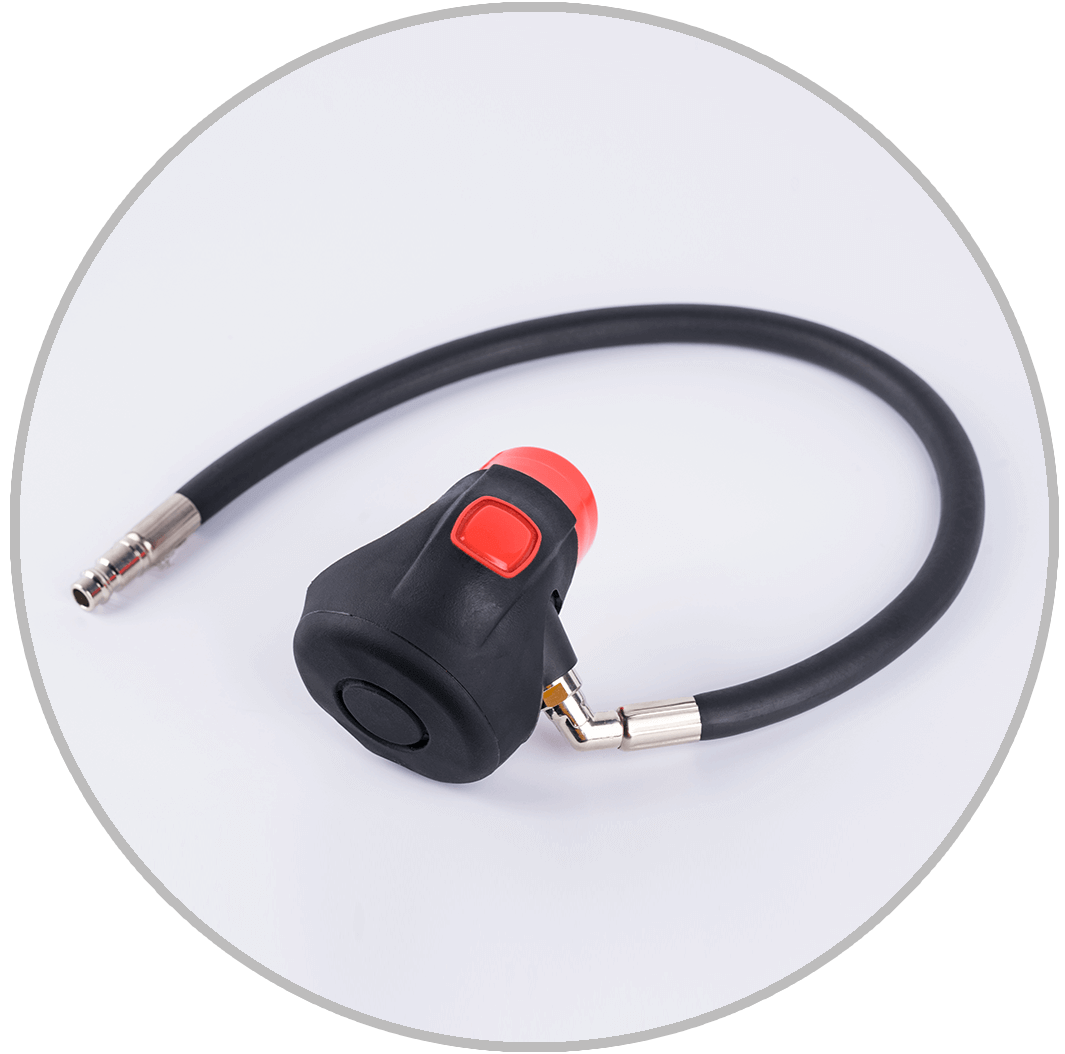

2. Demand valve

This demand valve is a plug-in type positive pressure demand valve. The air supply flow is greater than 300L/minute. Simply insert the mask during use and take a deep breath to open the demand valve for air. Operation method: Place the demand valve inlet Insert the mask directly, and hear a "beep" sound, indicating a smooth insertion. Take a deep breath and the demand valve will automatically open the air.

The bypass valve is a method for the use of an emergency valve designed on the demand valve: when the demand valve fails, the bypass valve button is directly pressed, and the demand valve can supply the mask directly to the air for the operator to evacuate and use.

More & Tech Datas

Odoo图像和文字块

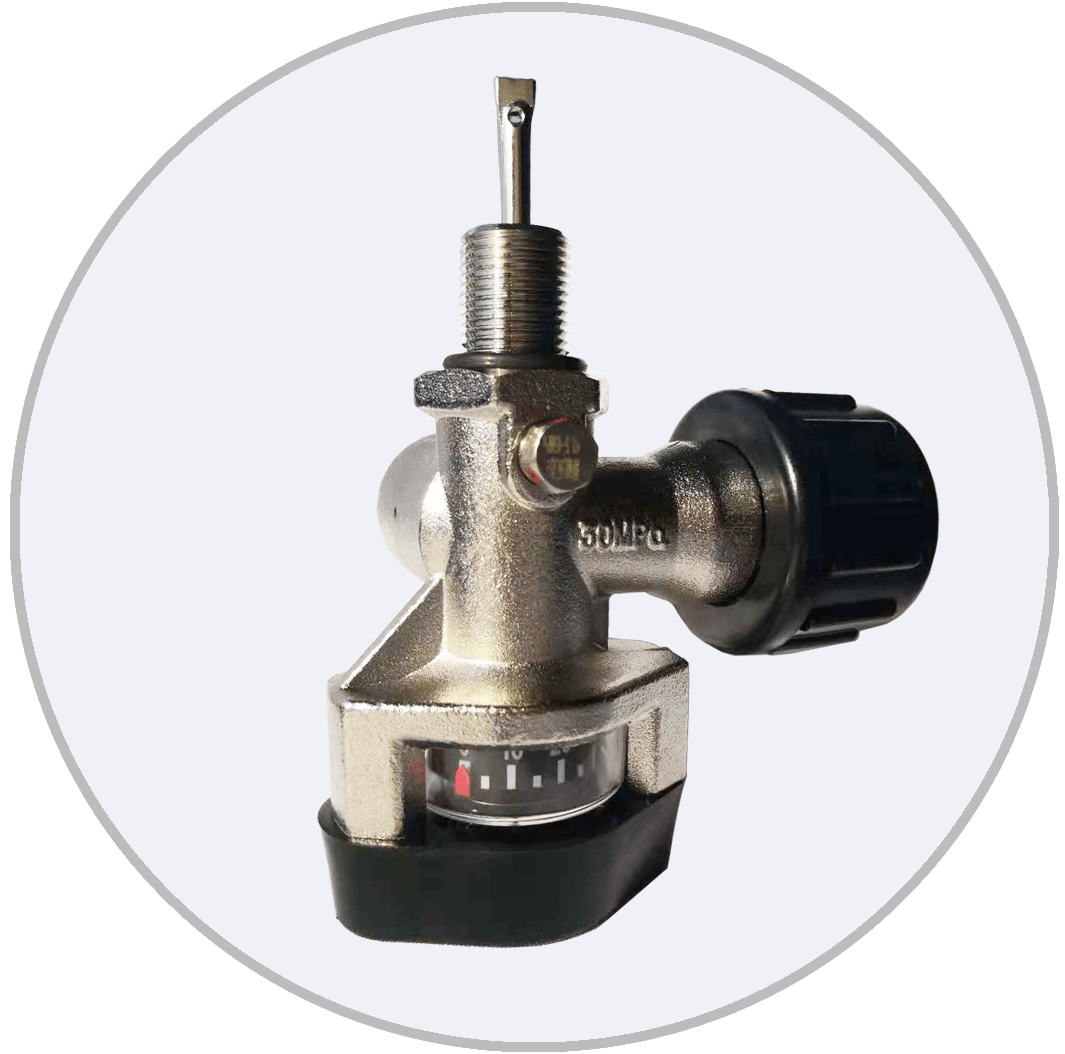

3. Pressure gauge cylinder valve

Air cylinder valve is an important part of the cylinder switch gas source. Its structure is a female threaded bottle valve. The thread is divided into two types: imperial G5/8 and metric M18*1.5. They are matched with the external thread reducer. The cylinder valve of the internal thread structure is equipped with a high-pressure safety diaphragm. When the gas pressure in the cylinder exceeds 38MPa-45MPa, the safety diaphragm will burst and the gas will be rapidly relieved.

The valve also can display the pressure of cylinder directly.

More & Tech Datas

Odoo图像和文字块

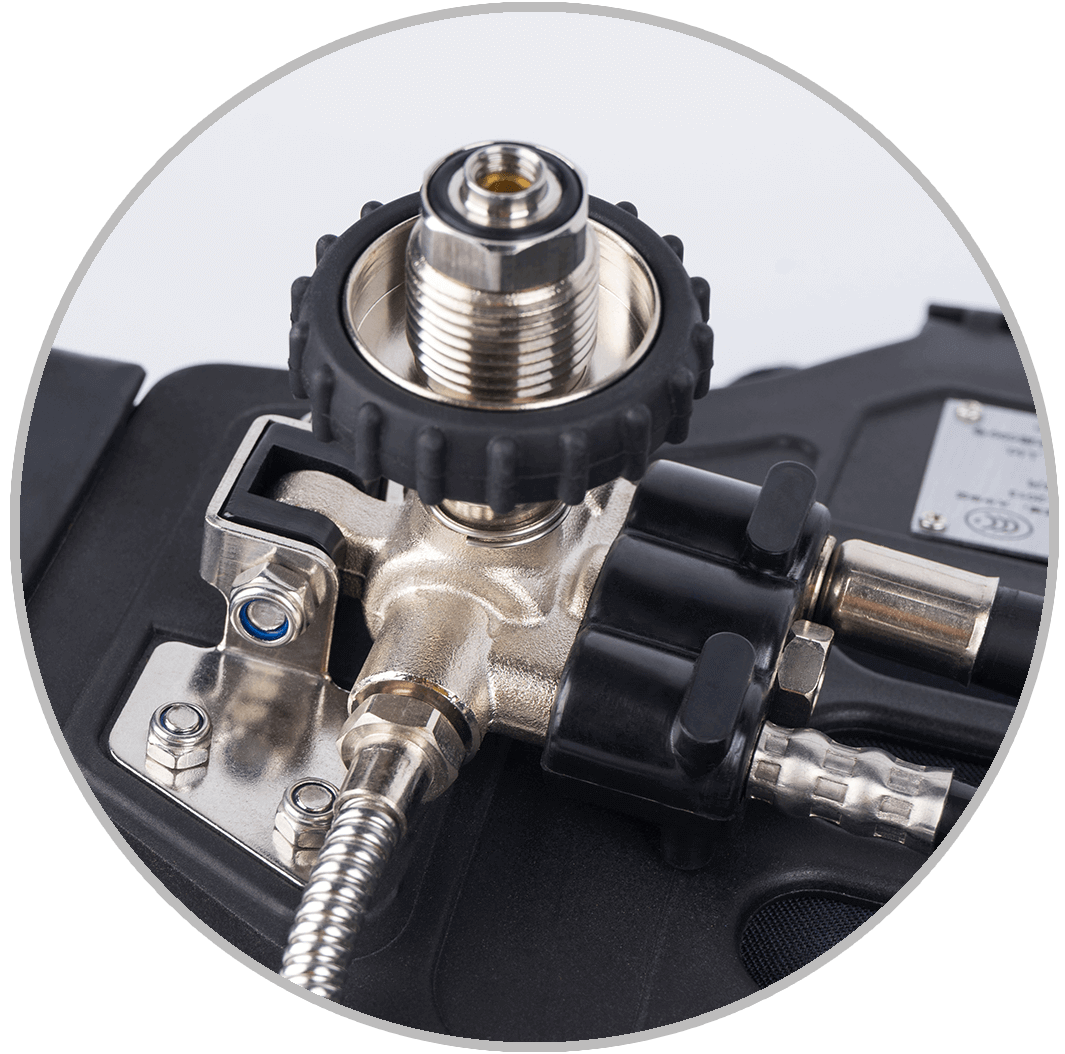

4. Pressure reducing valve

The pressure reducing valve is a device that depressurizes the high-pressure gas to a constant output pressure of 0.8±0.2 MPa and supplies the gas to the demand valve. The pressure relief valve is mounted on the backrest and is linked to the cylinder valve by the connection nut hand-wheel. The gas source output is divided into two parts: high pressure and low pressure. The high-pressure gas source gas is sent to the high pressure meter and residual gas alarm through the high pressure tube. After decompression, the low-pressure gas source is sent to the demand valve through the medium pressure tube, and the low pressure end is provided with a safety valve in the crucible cavity. Pressure relief valve and medium pressure tube, high pressure tube connection are plug-in type, the tube can rotate freely.

More & Tech Datas

Odoo图像和文字块

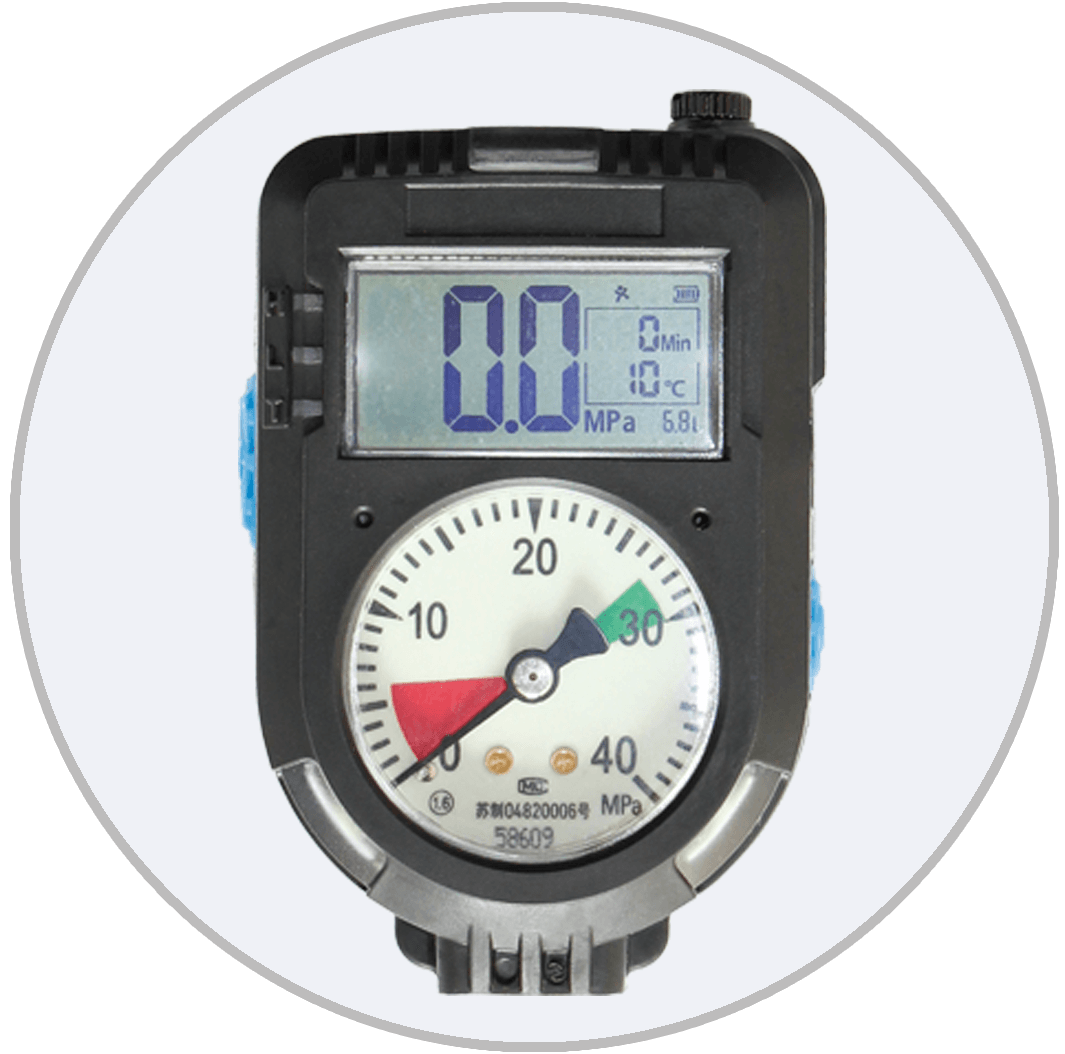

5.  Electronic pressure gauge

Both the pointer and the screen of the electronic pressure gauge can show the cylinder pressure. At the same time, the data is transmitted to the HUD via Bluetooth to light up.

Advantages: Effectively avoid delaying the rescue time by looking down at the pressure gauge and affecting attention.

More & Tech Datas

Odoo图像和文字块

6. Alarm whistle

High pressure tube design combined with front alarm system, when the pressure in the bottle is less than 5±0.5MPa, it will automatically alarm, the alarm decibel is not less than 90db, and the alarm can be heard clearly in relatively noisy environment.

More & Tech Datas

Odoo图像和文字块

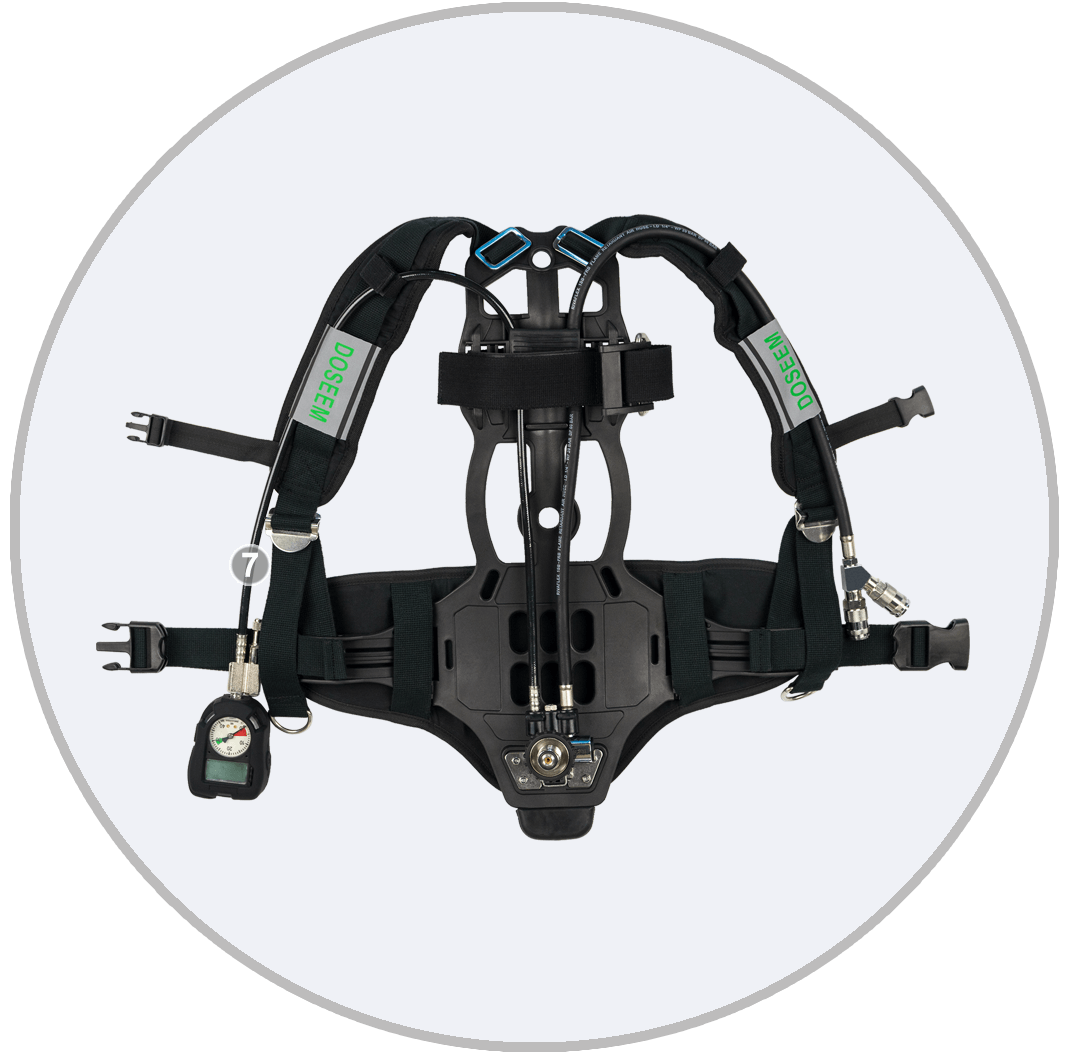

7. High pressure tube

The high-pressure tube is a pressure-resistant rubber tube, and it is responsible for delivering the high-pressure gas source to the high pressure meter and the residual gas alarm system. The combination of a high-voltage gauge and a residual alarm can both indicate the air supply pressure of the cylinder and give an audible alarm when the cylinder reaches the design approval pressure.

Odoo图像和文字块

8. Air cylinder

The gas cylinder is a high-pressure vessel for storing compressed air for human respiratory use. The rated storage pressure is 30 MPa. This gas cylinder is an international high-pressure cylinder.

The process of carbon fiber composite cylinders: In the aluminum alloy liner, high-strength fibers such as carbon fiber and glass fiber are wound together with polymer materials.

Features: light weight, high strength, corrosion resistance, long service life.

More & Tech Datas

Odoo图像和文字块

9. Medium pressure tube

The medium pressure tube is an air output flexible conduit composed of a rubber tube and a quick connector. One end is connected to an demand valve, and the other end is connected to a pressure reducer. The connection method is a card-type connection, which can be quickly loaded and unloaded, and can also be freely rotated in the same plane.

Odoo图像和文字块

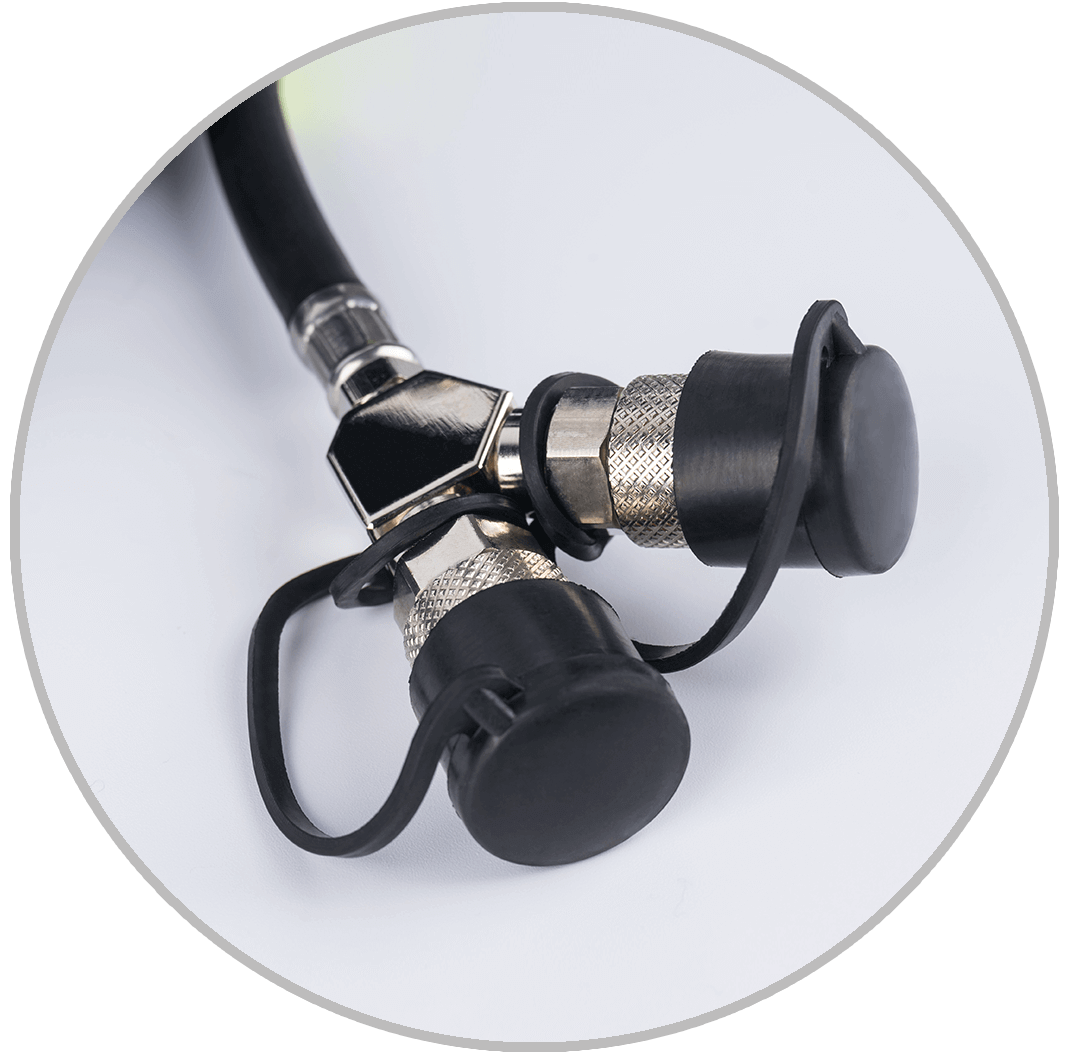

10. Fast connector

High safety standards

  • Imported stainless steel, no rust, corrosion resistance, no deformation resistance

  • Fast locking, convenient loading and unloading

  • Strong air tightness

  • Use safety

Odoo图像和文字块

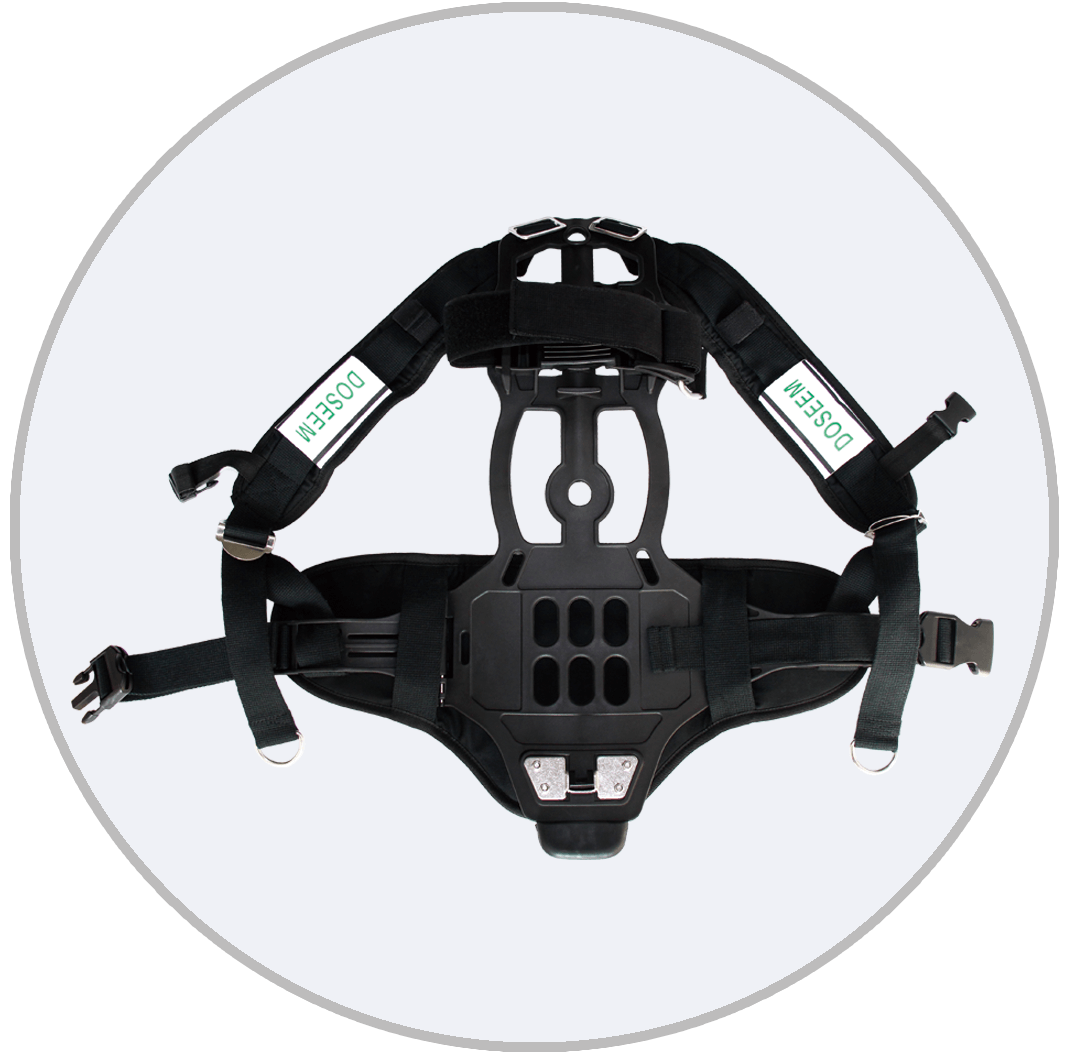

11. Backplate

The role of backplate is to support the fixed cylinder and pressure reducer. The weight on the backplate is evenly distributed on the shoulders by the straps. The strap consists of a shoulder strap and a waistband. Both can be quickly adjusted in length so that the backrest rests on the back and buttocks of the human body. The gas cylinder is fixed on the backrest by a quick fixing device, and the diameter of the cylinder can be adjusted to fix the length of the cylinder.

More & Tech Datas

Odoo-三列示例 1
Odoo-三列示例 1
Odoo-三列示例 1

DOSEEM RHZK9/A Advantages:

Optimized design, easy to use

DOSEEM RHZK9/A self-contained breathing apparatus is one of the lightest fire breathing apparatus in the world. Innovatively developed an ergonomic backsheet with outstanding resistance to heat radiation, abrasion, tear and chemical resistance. Even in the harsh fire environment, DOSEEM RHZK9/A respirator is very comfortable to wear and stable. DOSEEM RHZK9/A not only obtained the latest CCCF mandatory fire certification and LA certification from the Ministry of Public Security, but also passed the EN137 1000℃ high temperature flame test, which has excellent anti-wear and anti-heat radiation characteristics.

Easy maintenance

During service and maintenance, in order to minimize downtime and minimize costs,DOSEEM RHZK9/A incorporates a number of unique designs, all of which can be easily removed or reconnected from the backplane using simple tools. The strap is attached to the backing plate by a single adjustment of the innovative design. The snap connection of the primary pressure relief valve allows the pneumatic section to be quickly installed or removed from the respirator. The tubing can be quickly removed and cleaned from the backing plate.

Enhanced backpack system

DOSEEM RHZK9/A integrates a strap that can be precisely attached to the backplate. Advanced extruded waterproof EVA harness material is protected by a CR rubber edge seal that resists tearing and wear. The wear-resistant and flame-retardant FR-TPE belt ensures a tight fit on the user's body even during large movements. The refined stainless steel metal lock makes the RHZK9/A quality more convenient and easy to use.

Pressure head-up display device

It is convenient for firefighters to check the pressure of the cylinder at any time and completely liberate the hands. DOSEEM pressure head-up display device consists of an electronic pressure gauge and HUD. The special technology of DOSEEM ensures the accuracy of data transmission and the uniqueness of pairing.

Pipeline integration, safe and reliable

In order to reduce the danger of being hooked and avoid physical damage, pressure tube and the air supply tube are integrated in the backplane clamp of DOSEEM RHZK9/A backboard, which not only prevents thermal radiation impact, but also greatly enhances the safety of the enclosed space environment entering and working.

The best performance strap material

RHZK9/A uses state-of-the-art harness materials designed to withstand the high wear and tear that firefighters face every day. The product is equipped with a durable stainless steel lock and a long-life aramid blending belt, making it ideal for long wear and frequent use.

Odoo图像和文字块

Technical parameter

Machine parameters

Model

RHZK9/A (CCCF)

Expiratory resistance (25 times/min)

≤700Pa

Capacity

9L

Expiratory resistance (40 times/min)

≤1000Pa

Storage capacity

2700L

Operating temperature

-30~60℃

Maximum air flow

≥1000L/min

The whole weight

12.2kg

Working pressure

≤30MPa

Alarm intensity

>90db

Alarm pressure

5.5±0.5MPa

Light work usage time

85~120min

Static pressure in a mask cavity

≤500Pa

Moderate work usage time

60~85min

Suction resistance

≤500Pa

Heavy work usage time

40~60min

Packing parameters

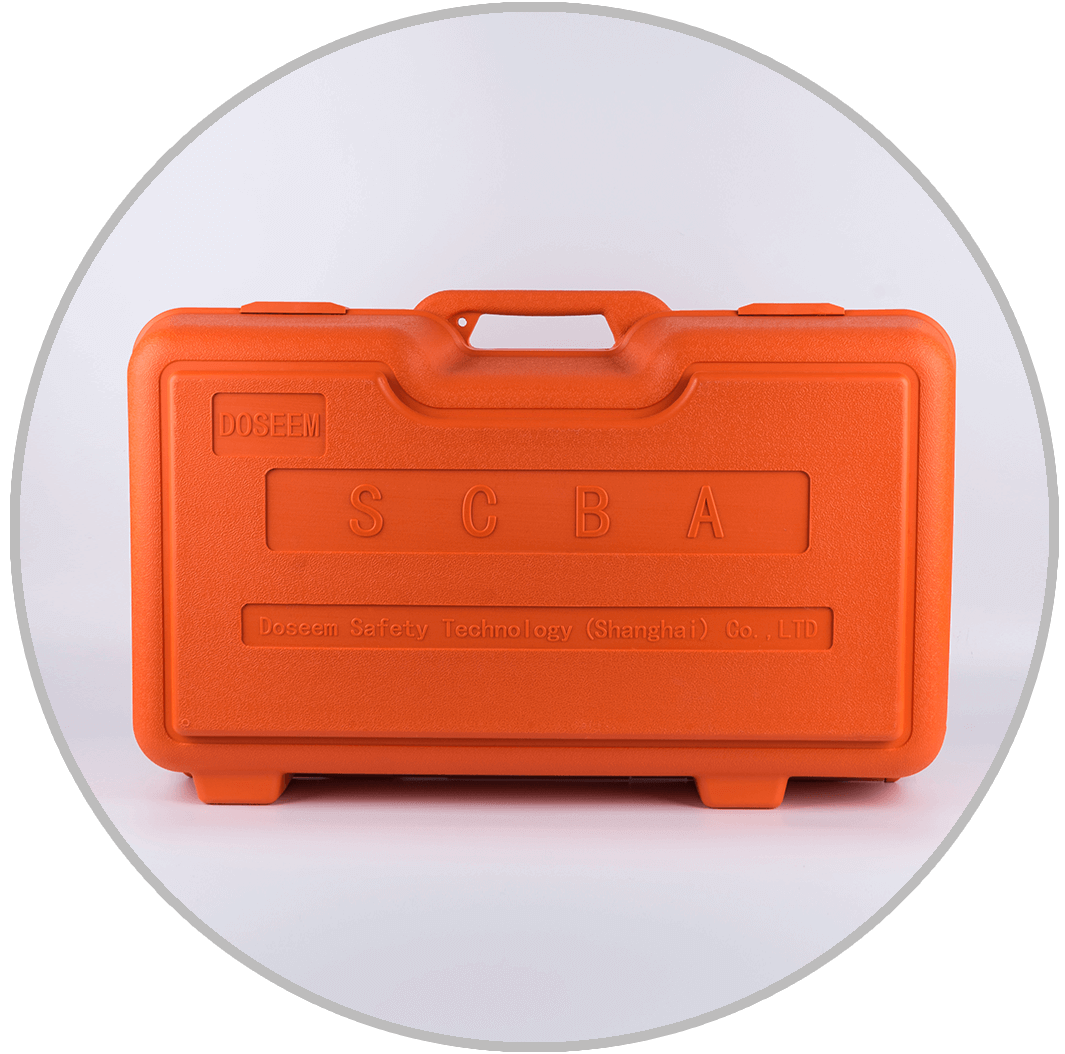

Inner packaging

Material: PC/ABS

Size: 70cm * 29cm * 43cm

Outer packing

Material: moisture-proof carton

Size: 71cm * 30cm * 44cm

Odoo-三列示例 1
Odoo-三列示例 1
Odoo-三列示例 1
Odoo-三列示例 1
Odoo - Sample 1 for three columns

download tech datas

Odoo - Sample 1 for three columns

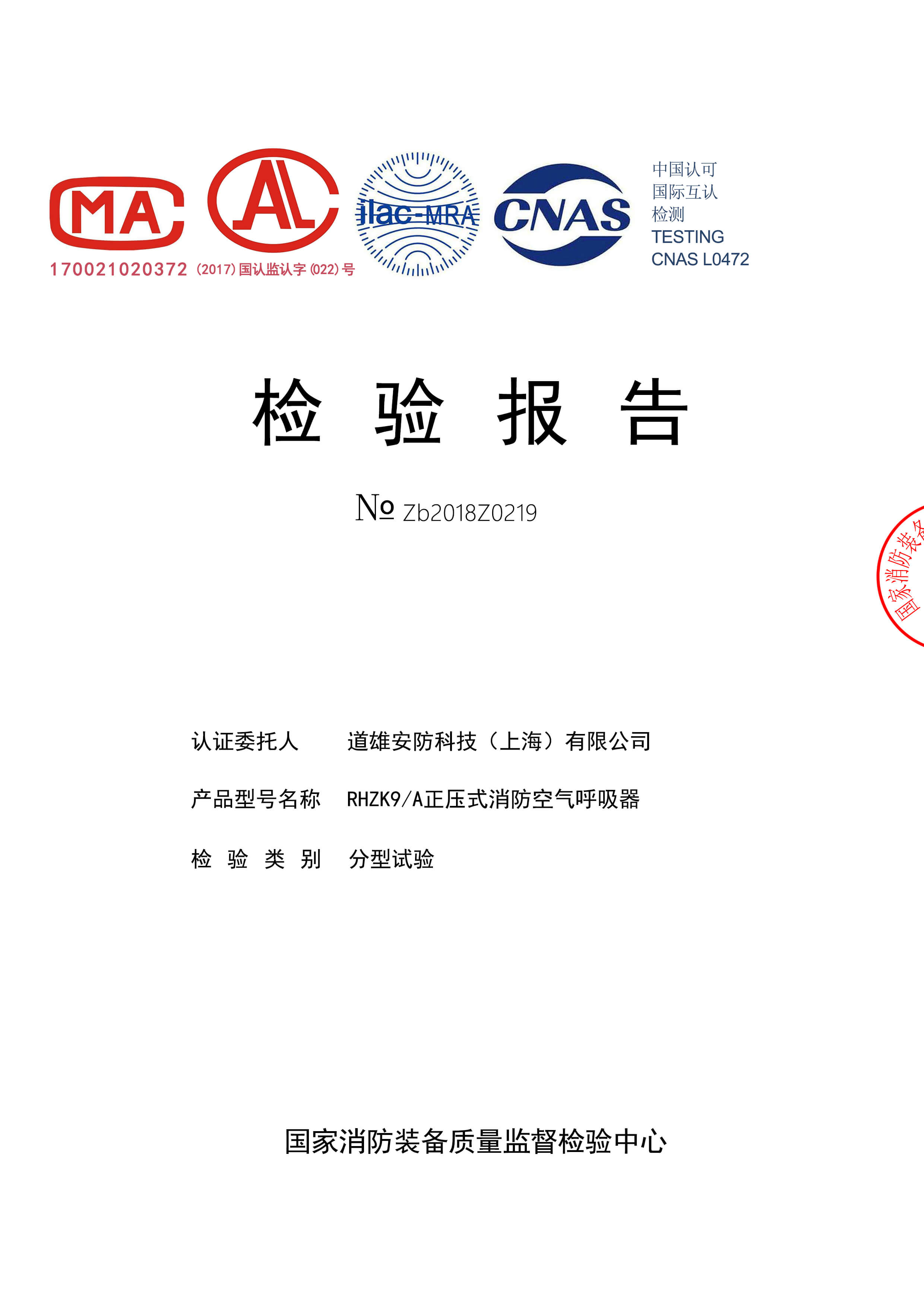

download CCCF certification
