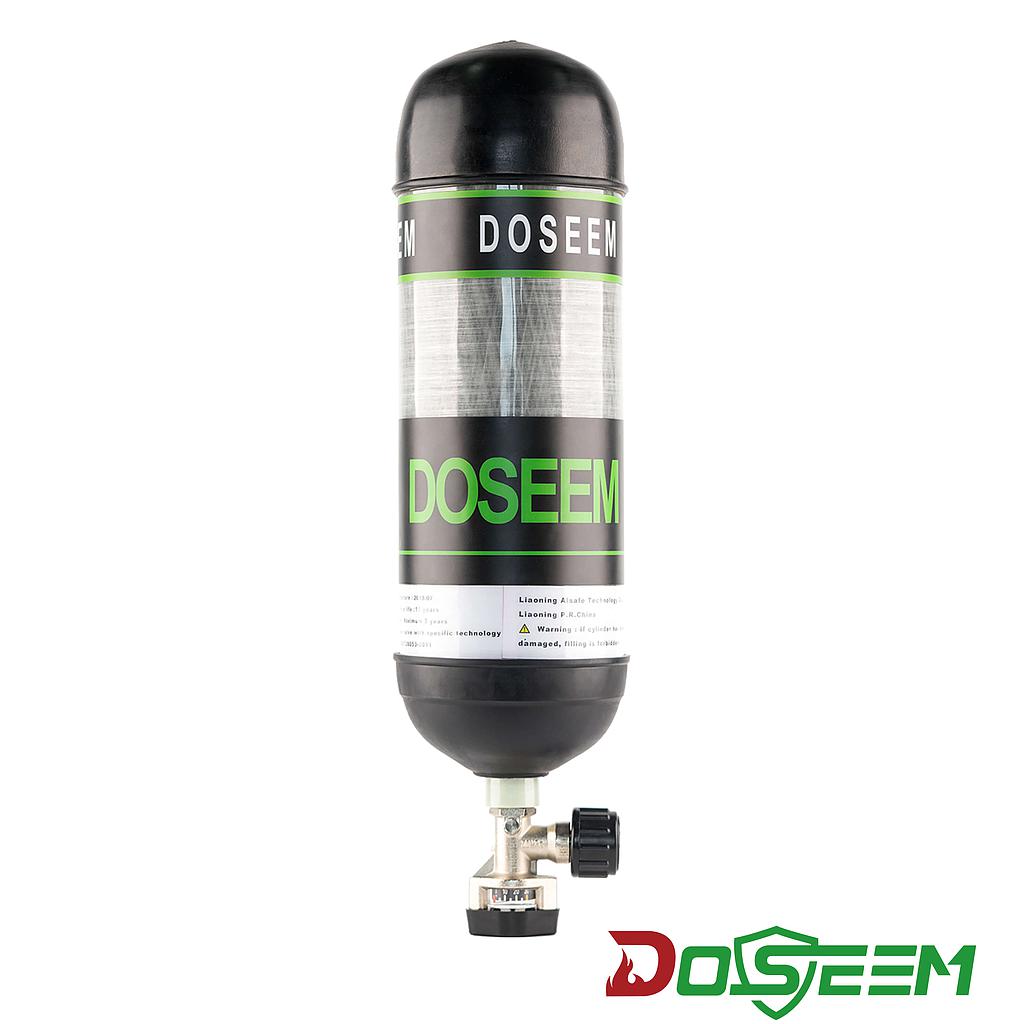

DOSEEM 9L Air cylinder (GB) & Pressure gauge cylinder valve KHF-30SA

DOSEEM 9L Air cylinder (GB) & Pressure gauge cylinder valve KHF-30SA


9L GB Air cylinder is a high-pressure vessel for storing compressed air for human respiratory use. The rated storage pressure is 30 MPa.
KFH-30SA Cylinder valve is used to switch cylinder & can directly display pressure inside bottle.


US 30-day money-back guarantee
物流时间表
售后

9L Air cylinder & Pressure gauge cylinder valve

Article number: 02084

Standard:GB/28053-2011

Introduction:

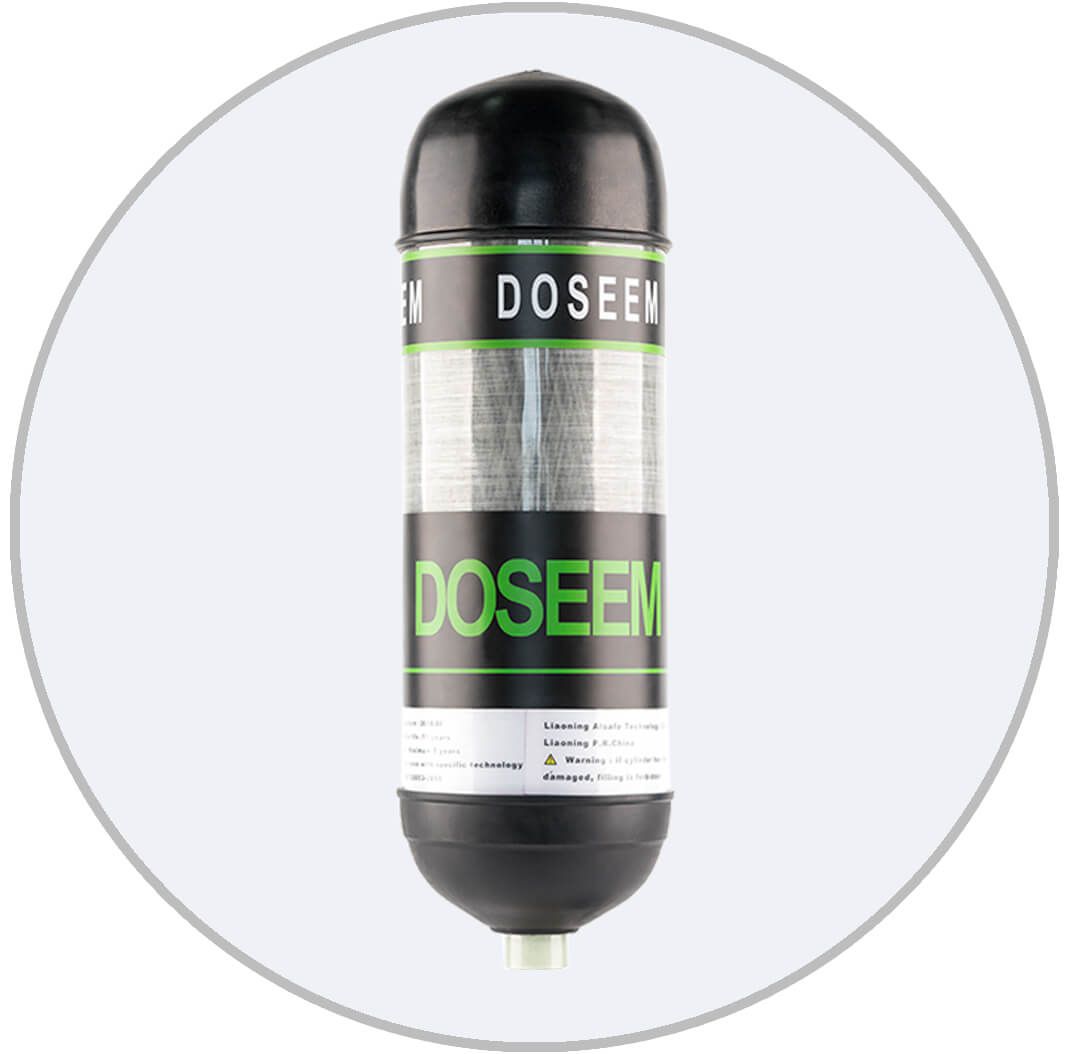

Carbon fiber composite gas cylinders are made of aluminum alloy liners with advanced equipment and processes. They are made of high-strength fibers such as carbon fiber and glass fiber, which are entwined with polymer materials. The gas cylinder is a high-pressure vessel for storing compressed air for human respiratory use. The rated storage pressure is 30 MPa. This gas cylinder is an international high-pressure cylinder.

Software image and text block

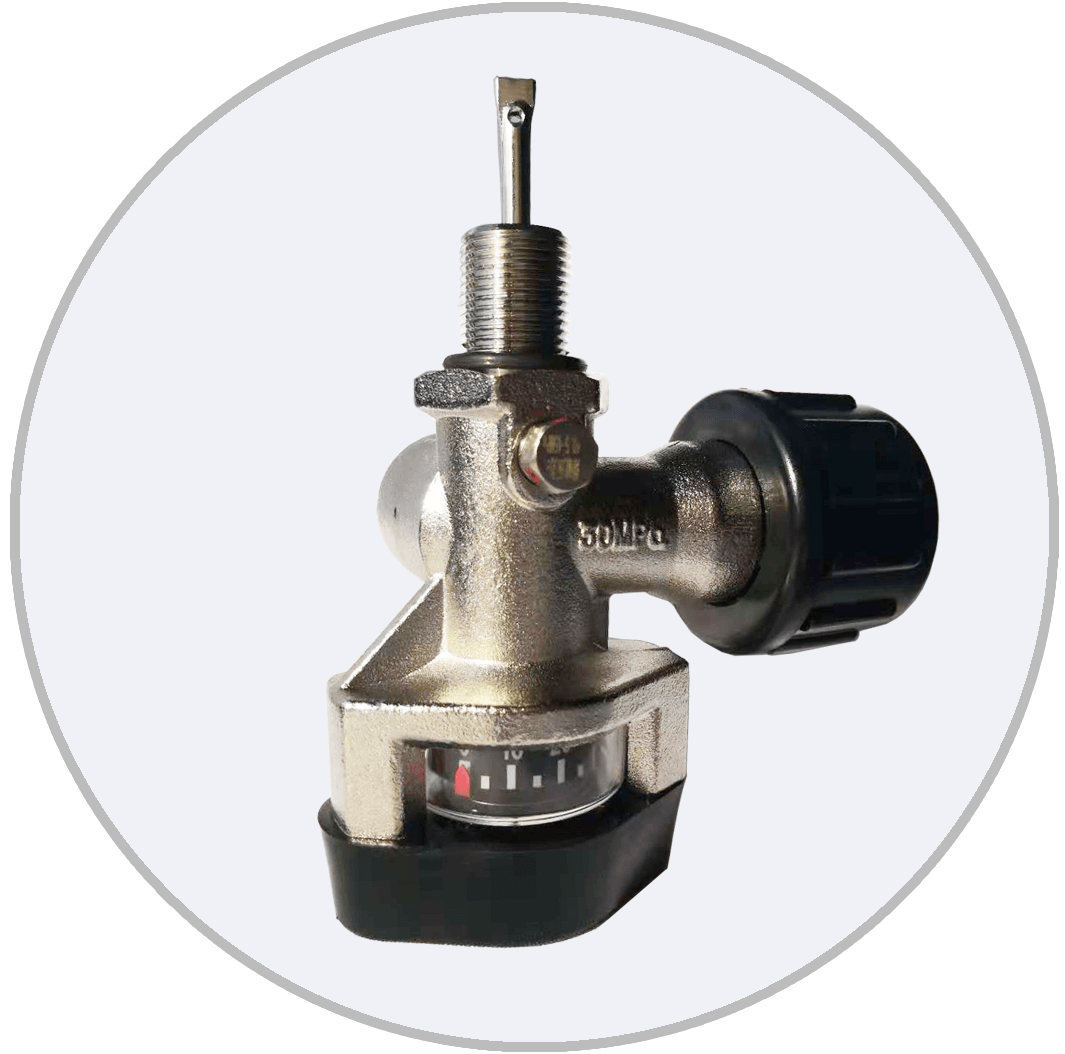

The cylinder valve is an important part of the cylinder switch gas source. Its structure is a female threaded bottle valve. The thread is divided into two types: imperial G5/8 and metric M18*1.5. They are matched with the air cylinder and external thread reducer. The cylinder valve of the internal thread structure is equipped with a high-pressure safety diaphragm. When the gas pressure in the cylinder exceeds 38MPa-45MPa, the safety diaphragm will burst and the gas will be rapidly relieved.

The valve also can display the pressure of cylinder directly.

Software image and text block

Advantage:

Advanced materials, durable

Seamless aluminum alloy liner with carbon fiber entanglement on the epoxy. The outer layer of the epoxy resin is wrapped around the cylinder with glass fiber. The outer layer of glass fiber is used to strengthen the anti-impact and anti-corrosion ability of the cylinder during use and maintenance. Epoxy resin after high temperature treatment, external gel coating on the surface of the cylinder to create a smooth, easy-to-clean surface for the cylinder.

High security

Composite cylinders are difficult to conduct electricity and have neutralization in corrosive environments. The bottle valve has a pressure gauge that displays the pressure inside the bottle in real time. Cylinder valves built-in safety diaphragm, avoid high pressure cylinder bottle burst. Have good elasticity and softness of the TPE pad holder, effectively protect the cylinder knock against fading.

Light quality

Carbon fiber cylinder is about 50% lighter than the same volume cylinder, which greatly reduces the weight of the wearer during work and improves work efficiency.

Wide choice

You can choose from a wide variety of compressed air cylinders and configure respirators according to individual needs. Optional cylinder valves are available and can be configured with the cylinder configurator to meet customer requirements.

Technical parameter

Capacity

9L

REE

160

Storage capacity

2700L

Liner material

6061 aluminum alloy

Cylinder diameter

172mm

First sandwich material

Carbon fiber

Cylinder height

575mm

Second sandwich material

Glass fiber

Cylinder weight

5.1kg

Housing material

Epoxy resin

Medium

Compressed air

Size of external thread of bottle valve

M18*1.5-6H

Filling pressure

30MPa

Size of inner thread of bottle valve

G5/8

Hydraulic test pressure

50MPa

Detection cycle

3 years / cycle

Burst pressure

≥102MPa

Service life

15 years

Software - Sample 1 for three columns

download tech datas
