Pressure head-up display device

Article number: 02056

Type: DSHUD-10

Introduction:

Odoo image and text block

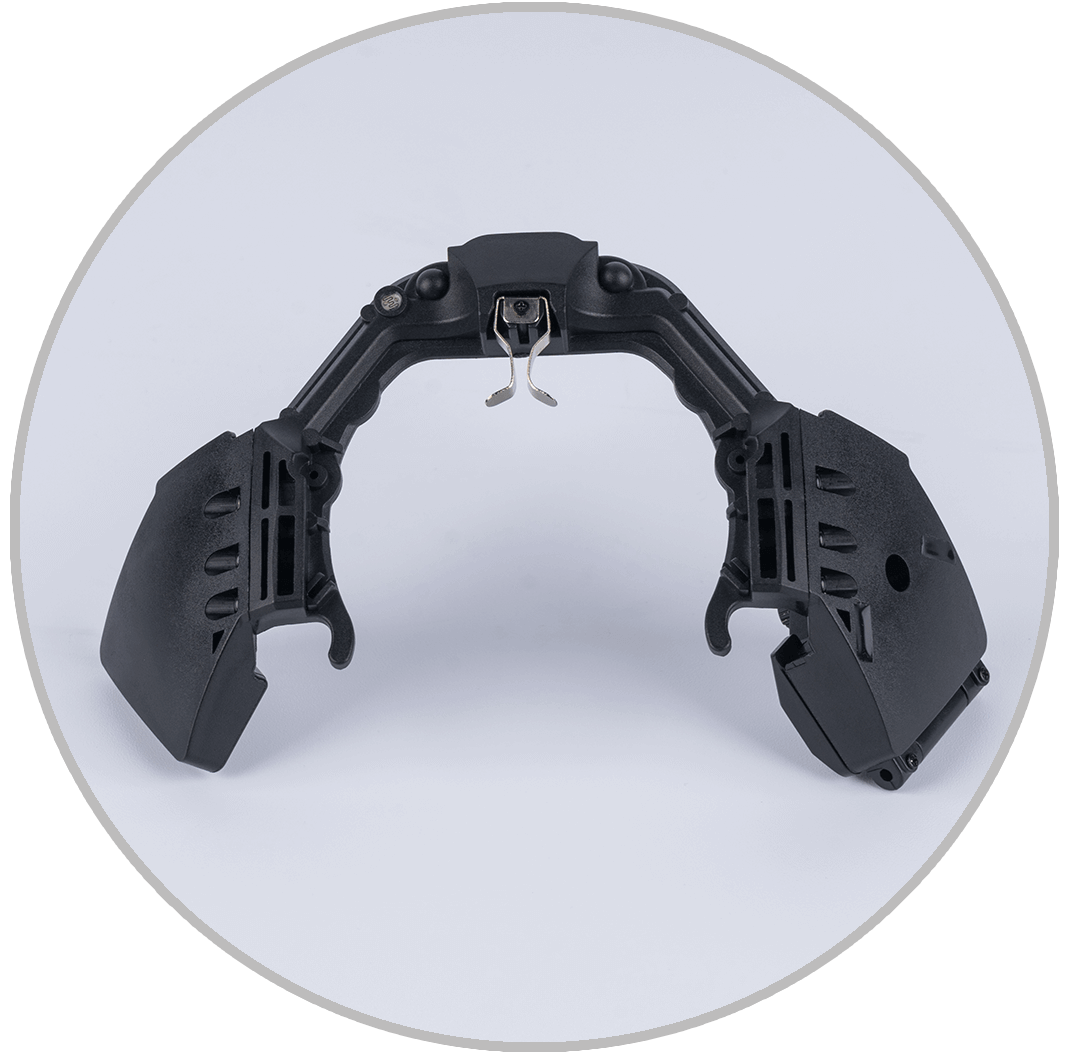

Pressure head-up display device

HUD is mounted on the double current side of the mask, and the color change of the air pressure indicator light can be seen, prompting the use of the gas cylinder. Green light: cylinder pressure above 10MPa; yellow light: cylinder pressure between 10~6MPa; red light: cylinder pressure below 6MPa.

Odoo image and text block
Odoo image and text block

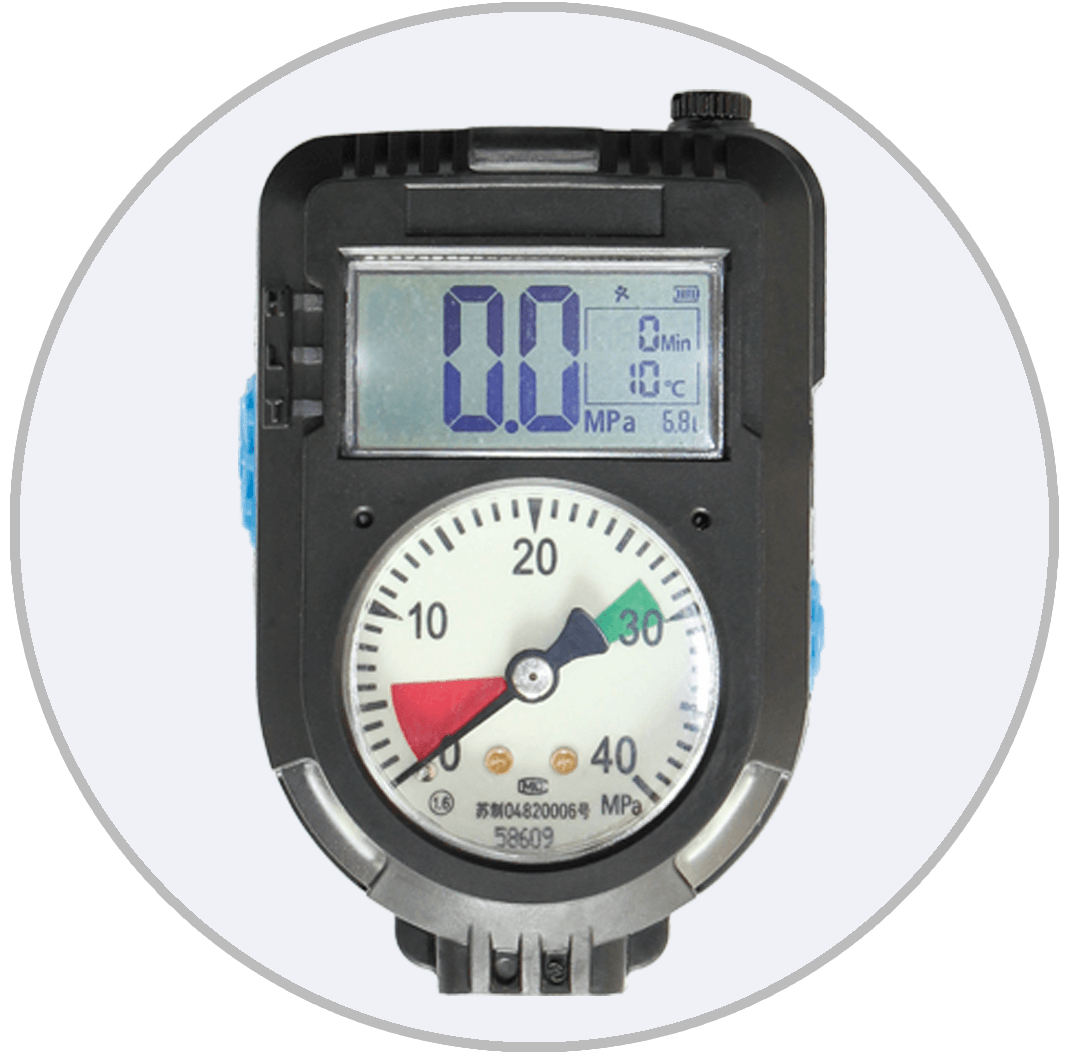

Electronic pressure gauge

Both the pointer and the screen of the electronic pressure gauge can show the cylinder pressure. At the same time, the data is transmitted to the HUD via Bluetooth to light up. Effectively avoid delaying the rescue time by looking down at the pressure gauge and affecting attention.

Article number: 02061

Odoo image and text block
Odoo image and text block

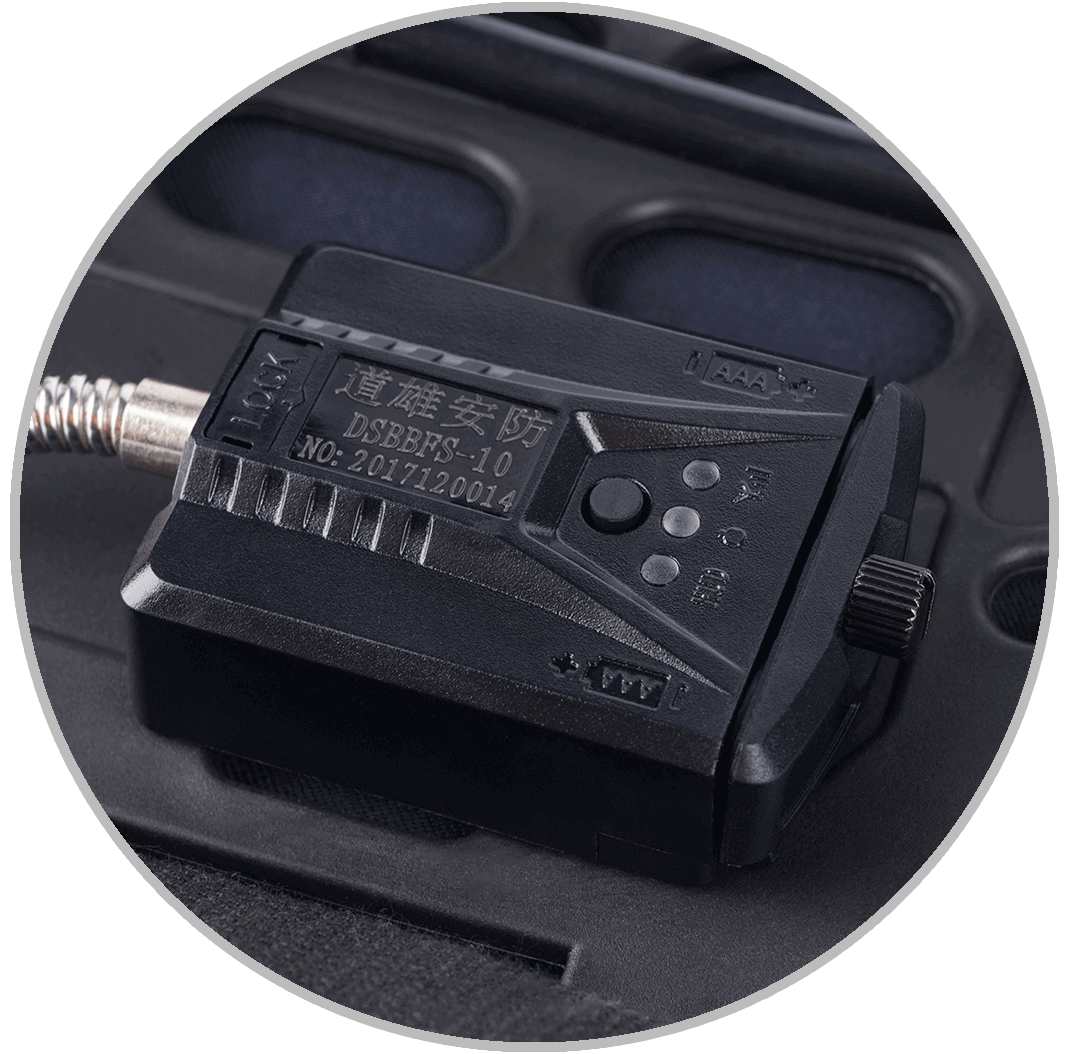

Backplane transmitter

The backplane transmitter can transmit the empty exhalation bottle pressure and the remaining amount of available time data to the pressure head-up device (HUD) via bluetooth for light prompting.

The backplane transmitter maintains continuous output and reception of Bluetooth signals with and pressure head-up display devices.

Advantages:

LED display

Accurate information about the cylinder pressure is always provided by the red, yellow and green LED indicators on the HUD. The pressure gauge uses a high-brightness LED light source, display cylinder pressure, and it is clear. Display automatically adapts to the ambient brightness, and the pressure information can be clearly displayed even under conditions of insufficient light or strong light.

Low pressure sound and light warning

In addition to the low pressure alarm of the positive pressure respirator, if the cylinder pressure reaches the low pressure alarm value, the red LED on the HUD will flash and an alarm tone will sound. Electronic pressure gauge will also emit sound and light alarms at the same time. This provides additional warnings to the operator.

Information display is comprehensive

Electronic pressure gauge can display cylinder pressure, remaining air volume, available air volume available time, on-site ambient temperature, and the respirator information is clear at a glance.

Long usage time

The HUD battery has an average operating time of 200 hours and the electronic pressure gauge has a continuous working time of more than 10 hours. Battery replacement is simple and convenient without using tools.

Bluetooth pairing

Electronic pressure gauge or pressure head-up display device and HUD are paired through Bluetooth to realize real-time data transmission, which is convenient and fast, and reduces cost and connection errors.

Easy loading and unloading

HUD can be easily assembled into the mask and can be assembled quickly without tools, saving time. In case of emergency, it takes only a few seconds to transfer HUD inside the mask.

Quadruple protection

Waterproof, dustproof, drop-proof, explosion-proof (explosion-proof grade: Ex ia IIC T4 Ga). It can adapt to complex working environments.

Comprehensive protection

HUD is fully protected inside the mask and will not be damaged by heat, humidity or chemical shocks.

Tips:

  • When pairing or re-pairing, please pair them one by one. If you turn on multiple devices at the same time, pairing disorder may occur;

  • The fall alarm function is valid only when it is turned on in advance, and it can retain the original mechanical alarm whistle and still sound when there is no electricity.

HUD parameters

Product name

Pressure head-up display device

Model

DSHUD-10 (Receiving end)

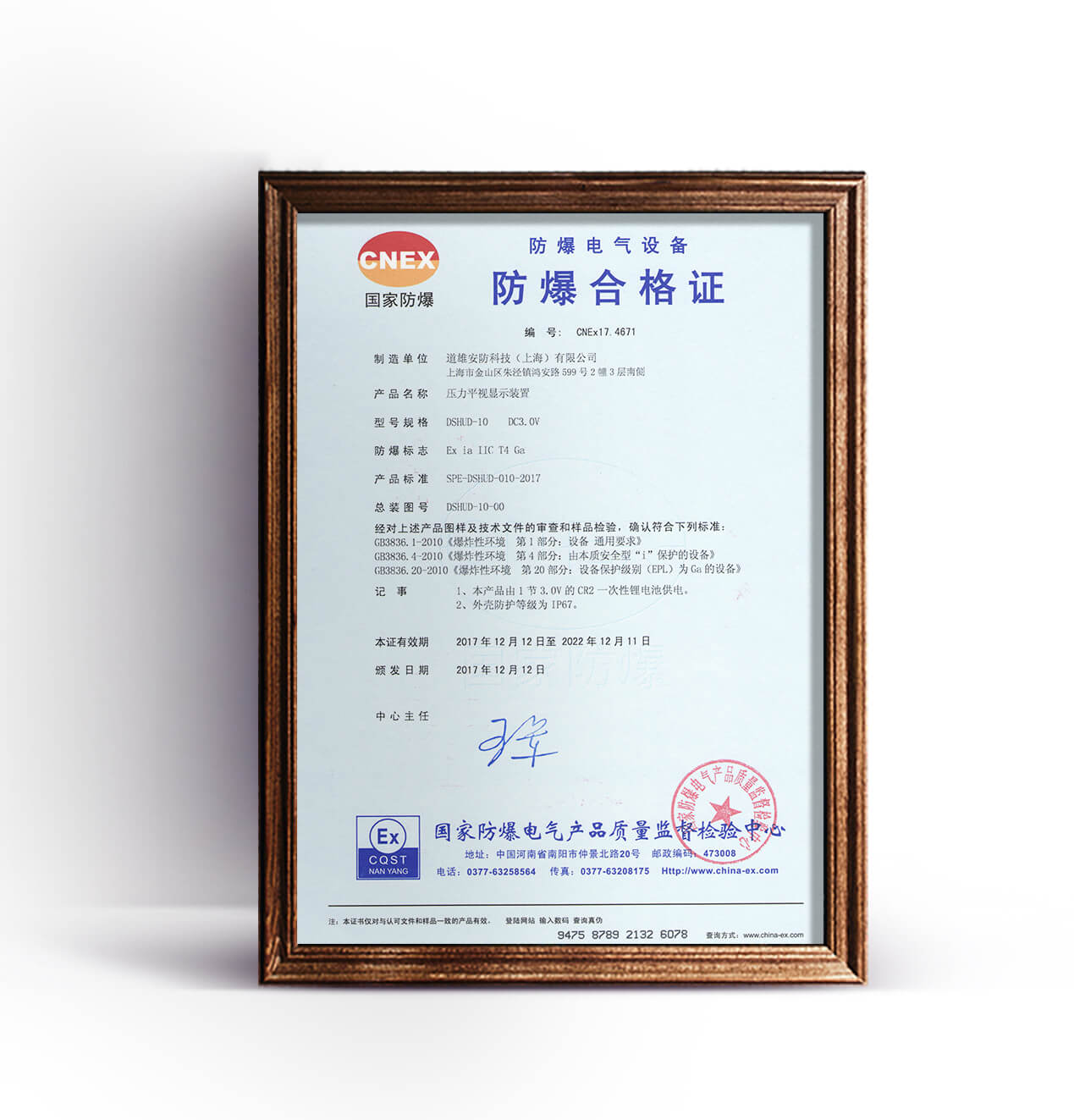

Explosion-proof grade

Ex ia IIC T4 Ga

Operating temperature

-30℃~60℃

Weight

52g

Theoretical standby time

> 1 year

Continuous working time

> 200h

Power supply battery

1 section  3.0V CR2 lithium battery

Continuous operating time when the battery is under voltage

Regular > 24h

Electronic pressure gauge parameters

Product name

Electronic pressure gauge

Model

DSFSB-1 (The transmitting end)

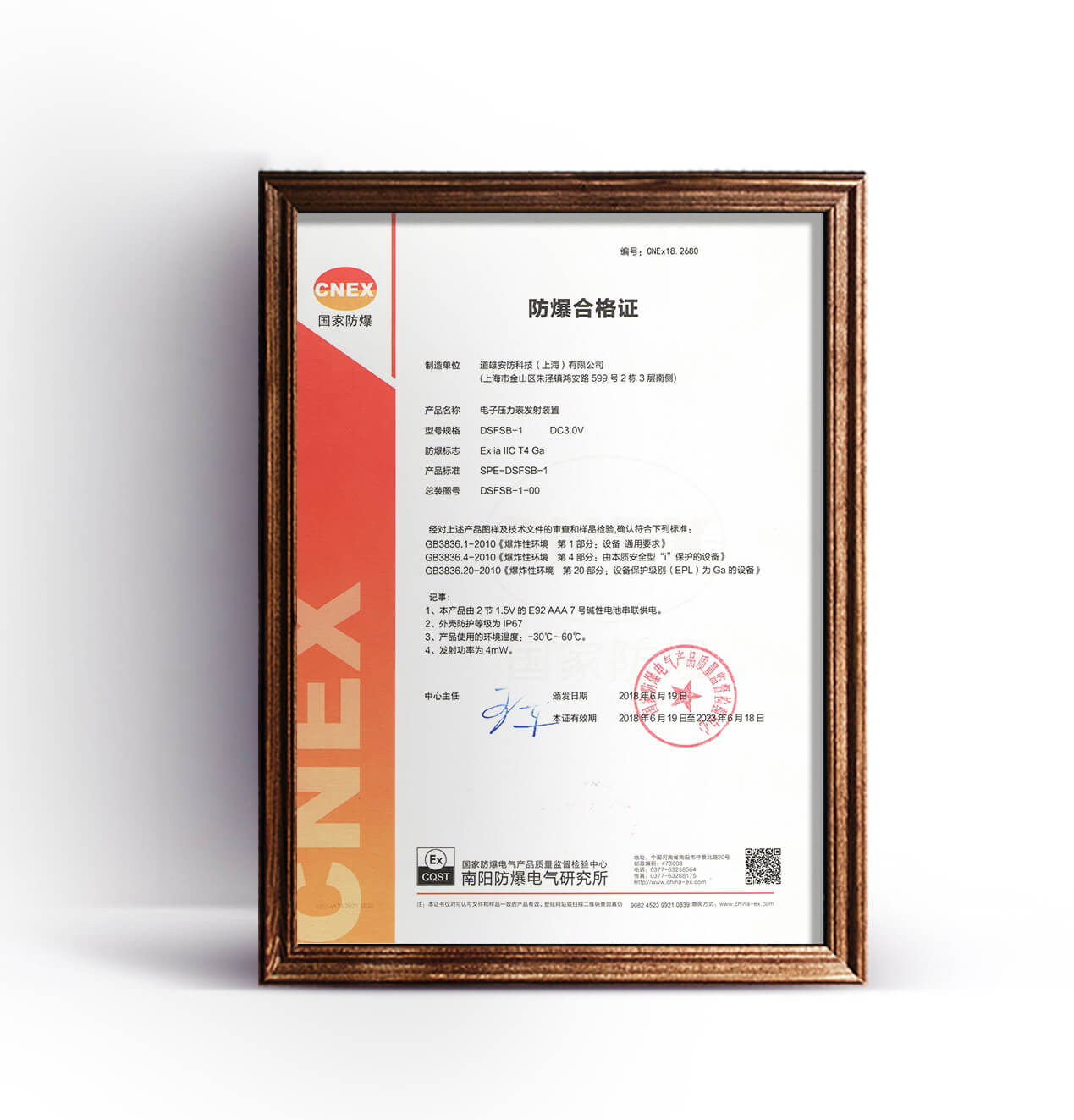

Explosion-proof grade

Ex ia IIC T4 Ga

Pointer display table accuracy

Level 1.6

Digital pressure display accuracy

Level 1.6

Operating temperature

-30℃~60℃

Size

97mm*64mm*40mm

Weight

200g

Continuous working time

>10h

Continuous alarm time

>2h

Theoretical standby time

1 year

Continuous operating time when the battery is under voltage

>2h

Power supply battery

2 Section on the 1.5V E92 AAA 7th batteries

Backplane transmitter parameters

Product name

Backplane transmitter

Model

DSBBFS-10

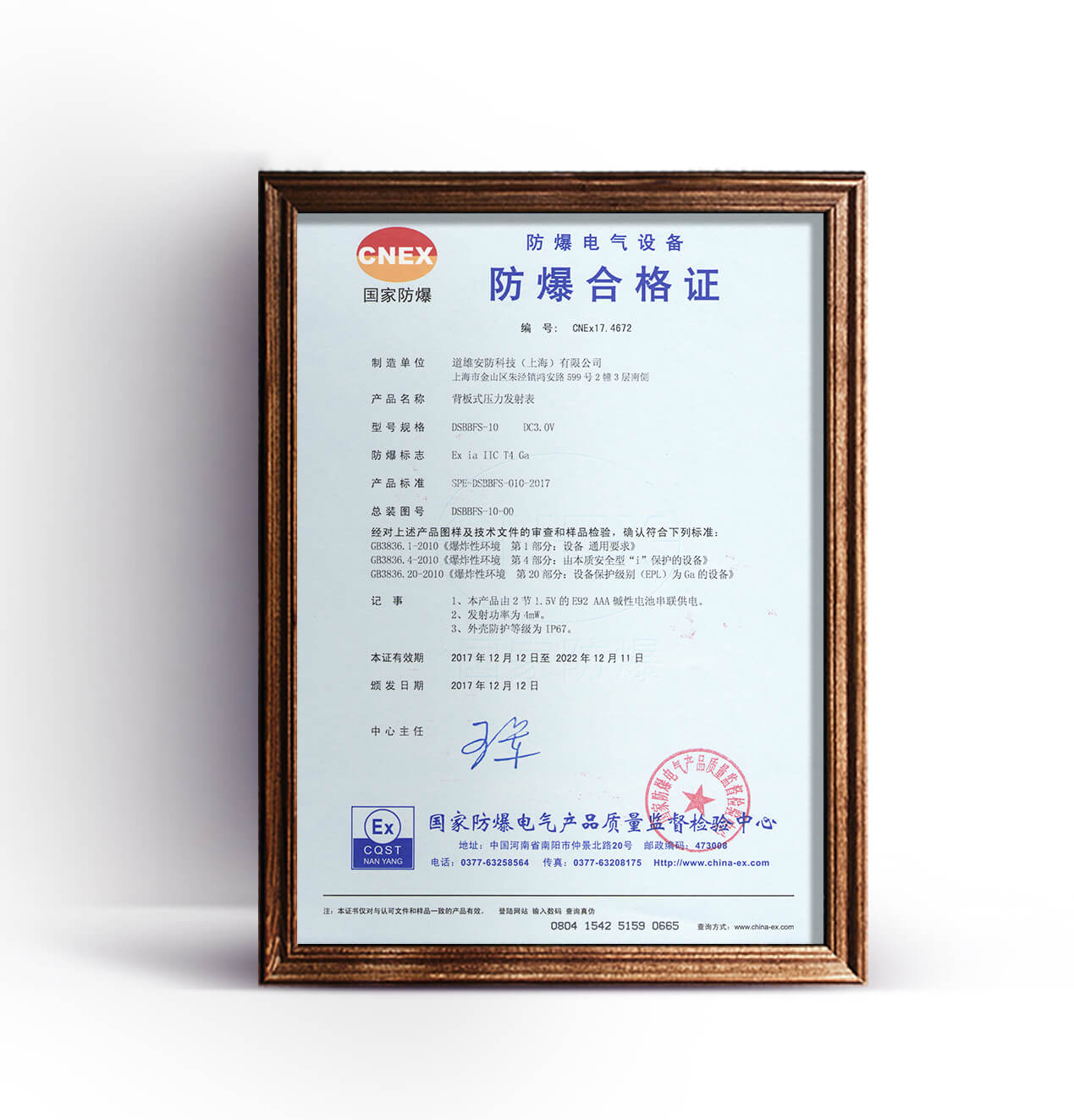

Explosion-proof grade

Ex ia IIC T4 Ga

Enclosure protection level

IP67

Transmit power

4mW

Weight

99g

Power supply battery

2 Section on the  1.5V E92 AAA batteries
