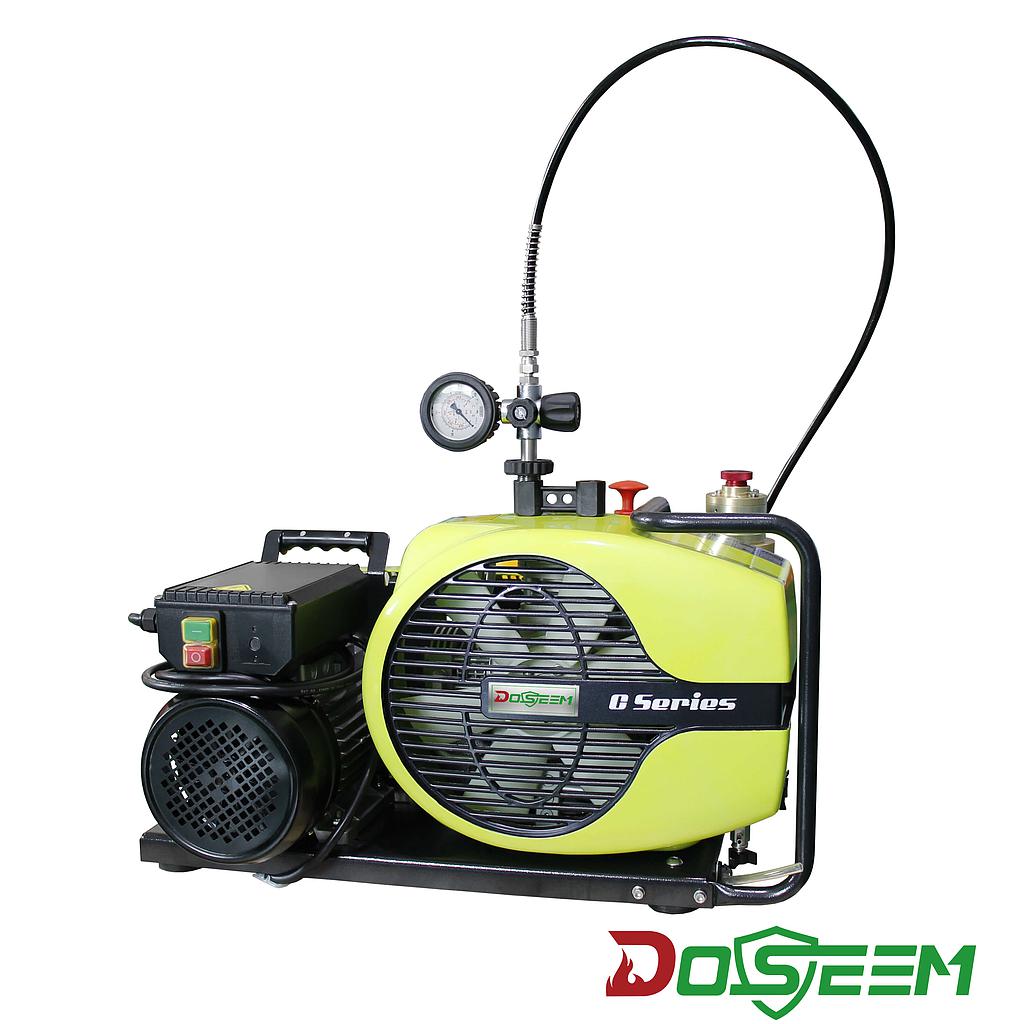

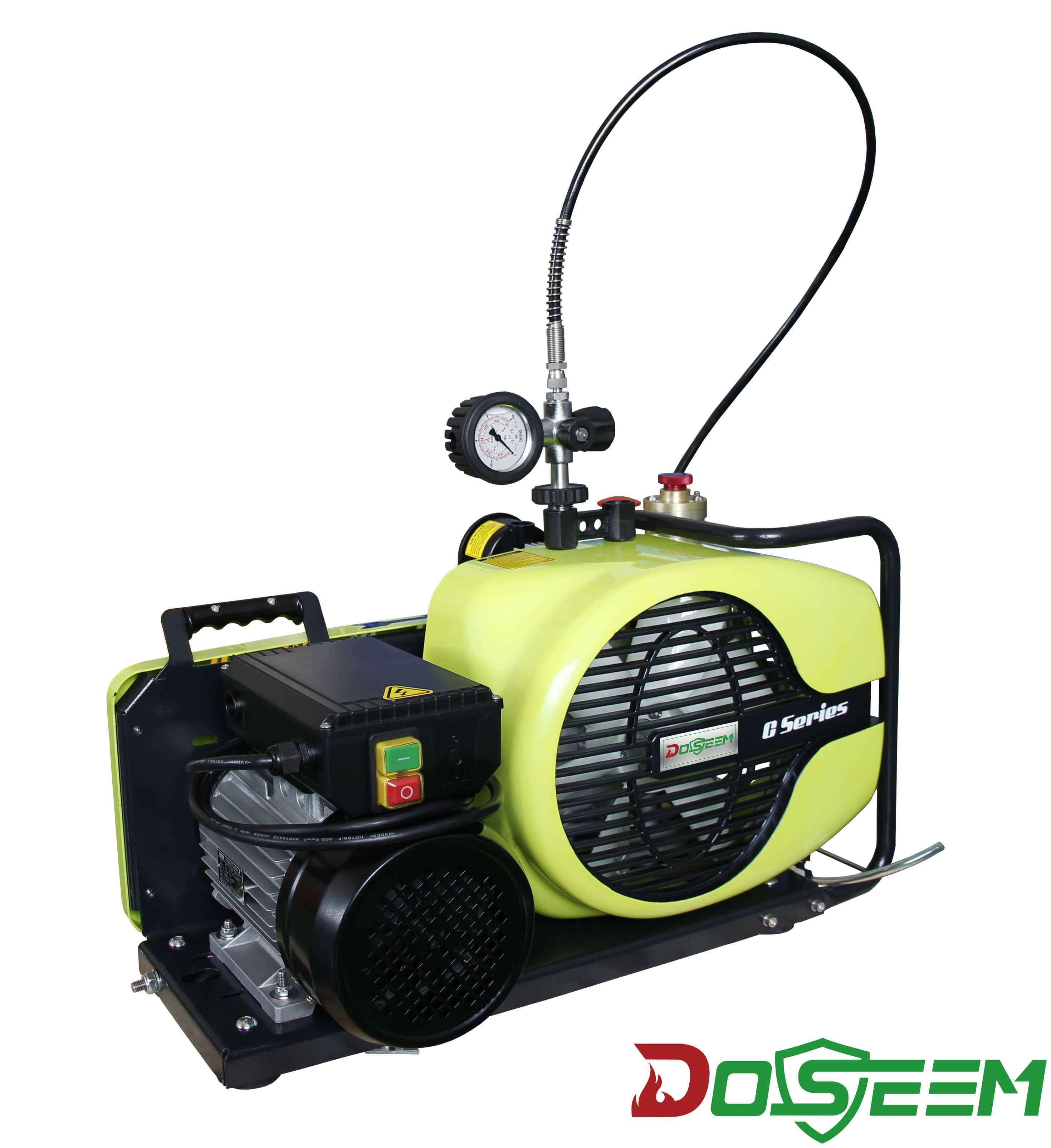

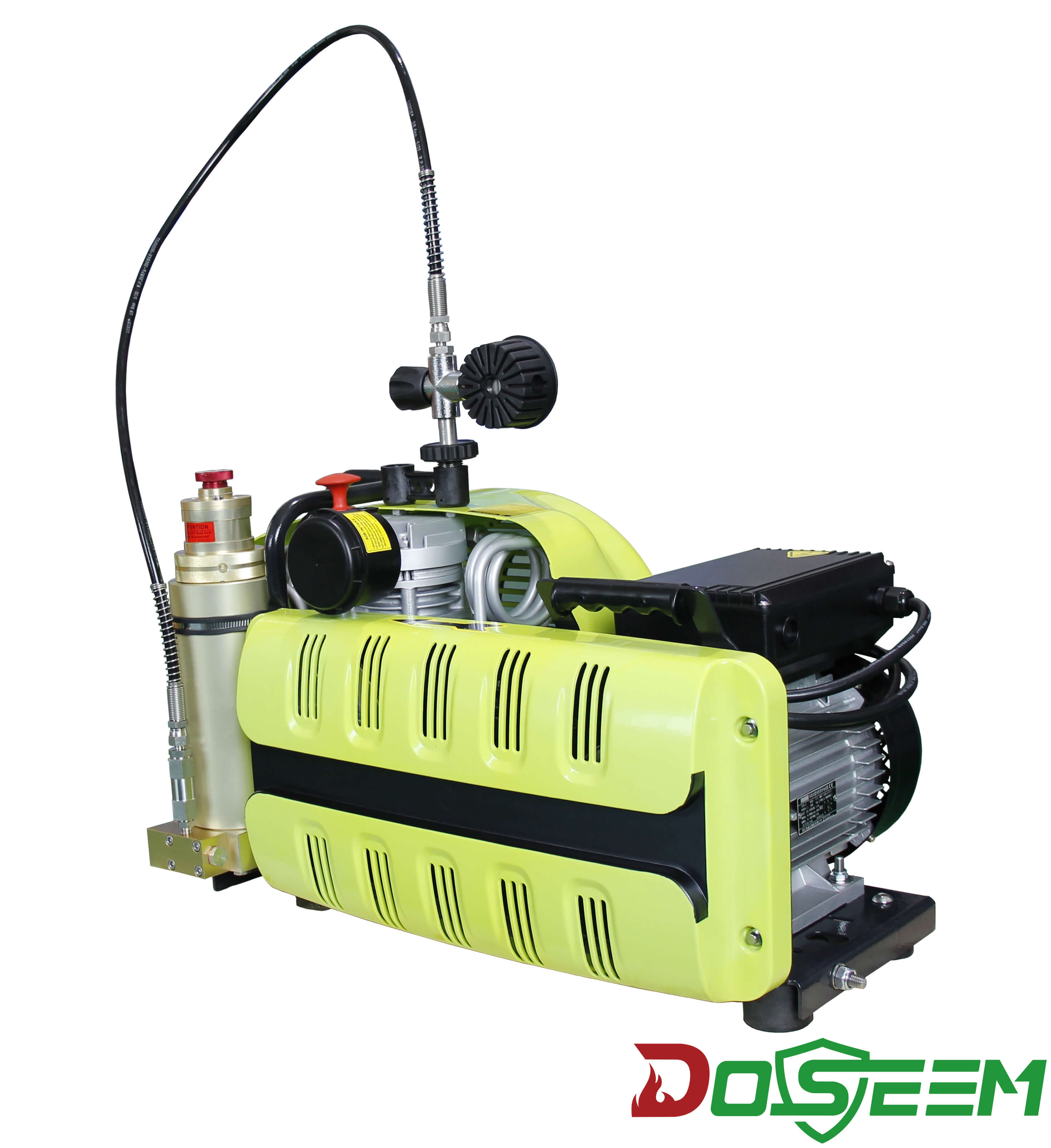

DOSEEM DS120-W Portable Breathing Air Compressor

Article number: 06004

Moldel: DS120-W

Introduction:

DS120-W Series is a worldclass portable breathing air compressor.

Stable, durable and portable, it can be fitted into the boot of the car. Perfect for those in the fire-fighting, chemical and diving industry.

It is also applicable for use in a range of industries including: Recreational Diving, Defence, Shipbuilding, Medical Engineering, Shooting and Automobile Racing.

Image and text block
Image and text block

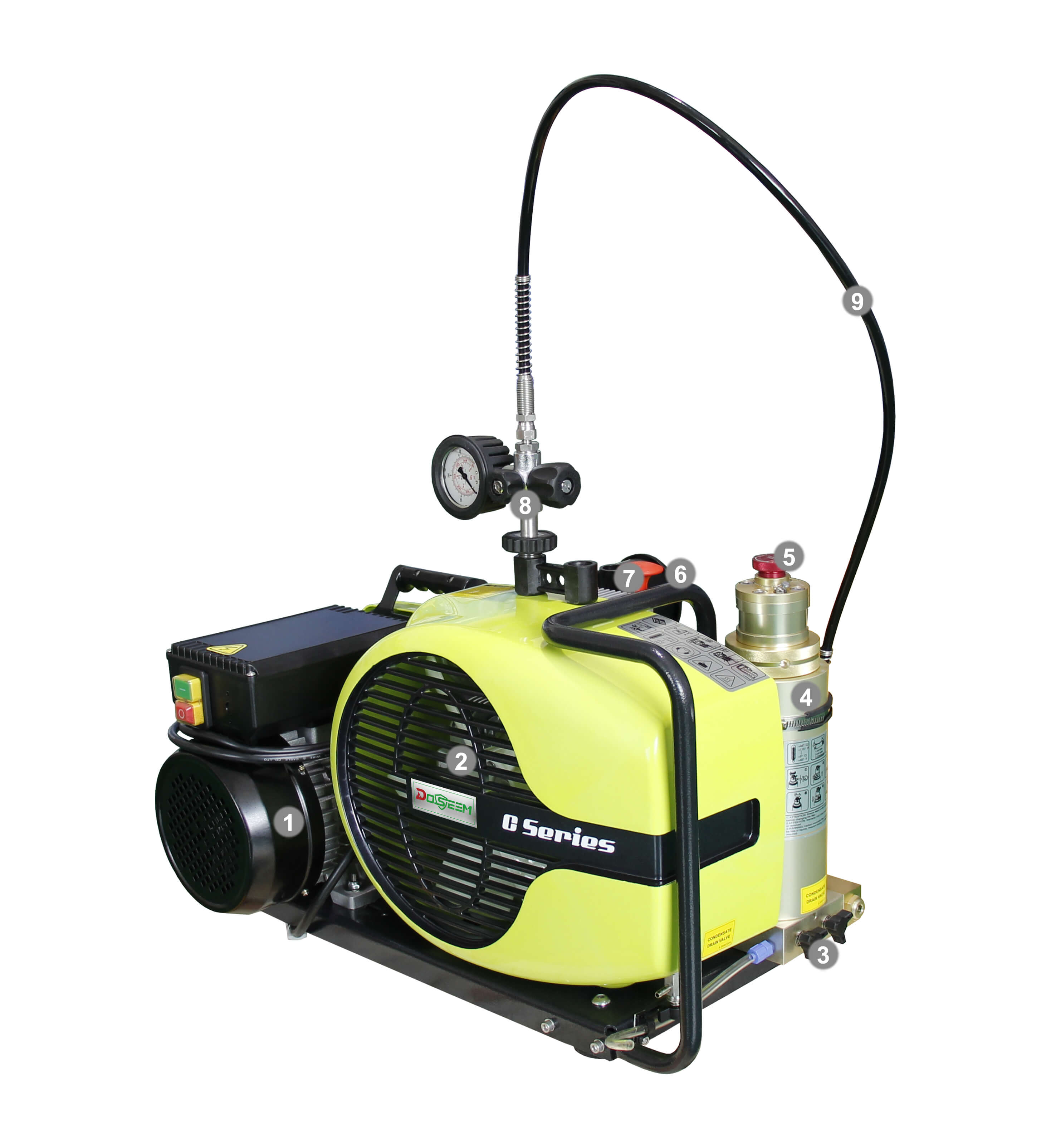

               1. Single Phase Electric Motor

               2. Pumping Unit

               3. Vent Valve

               4. Active Carbon Molecular Sieve Filter

               5. Safety Valve

               6. Intake Filter

               7. Oil Filling Barrel

               8. Filling Valve With Gauge

               9. High pressure tube

Image and text block

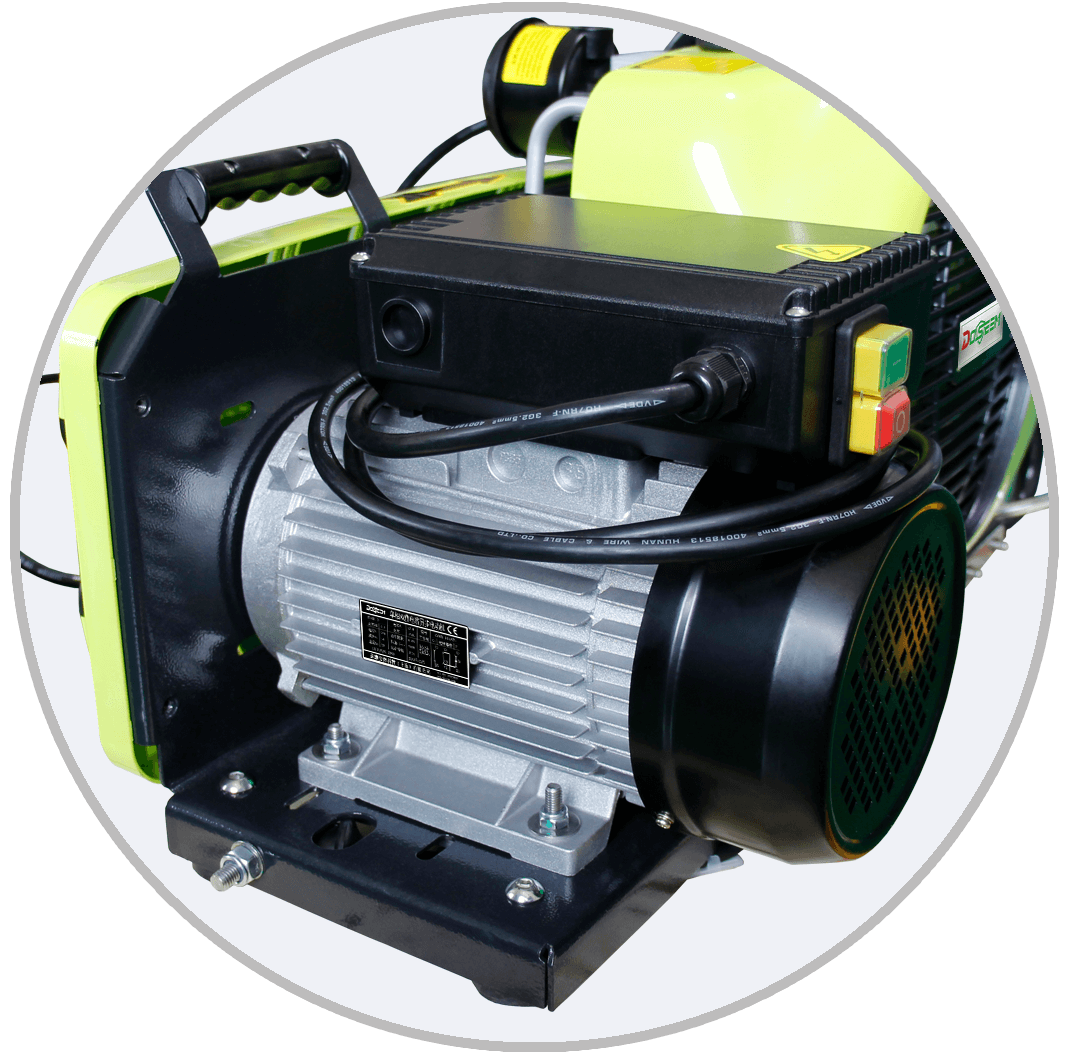

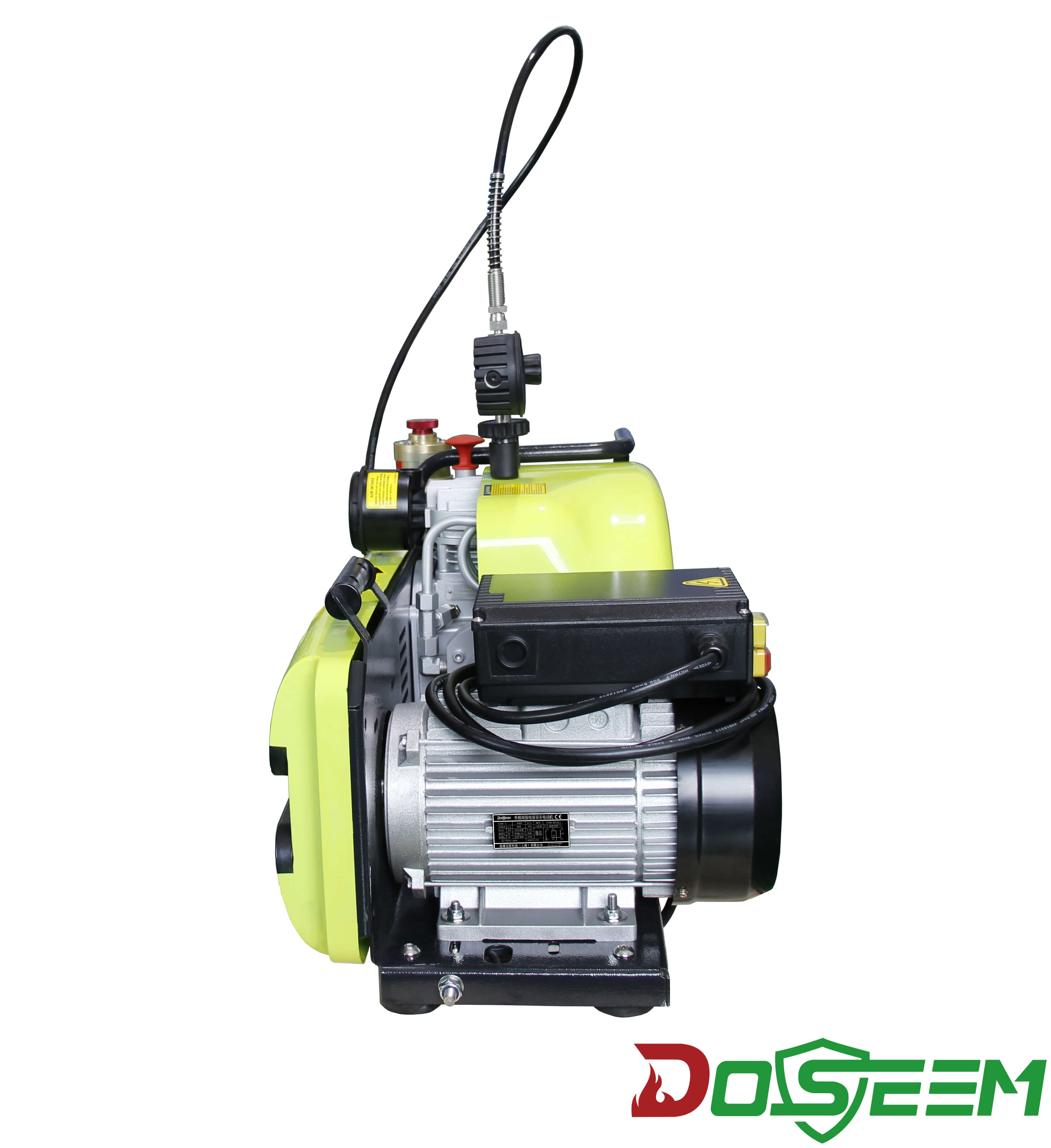

1. Single Phase Electric Motor

Asynchronous motor operated by 220V AC single-phase power supply. Power supply is very convenient and economical.

Image and text block

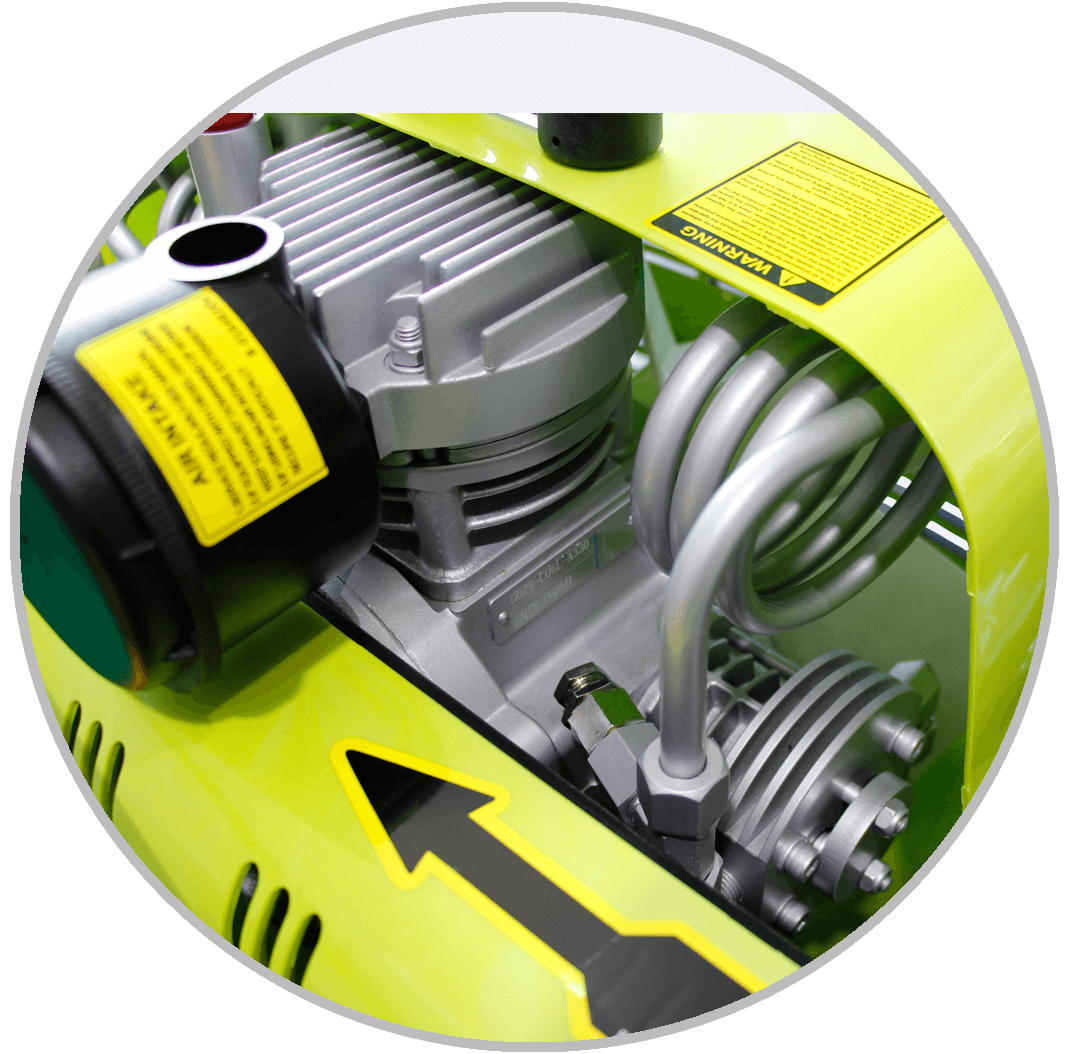

2. Pumping Unit

  • C series pumping unit made in Germany.

  • High-performance 3-stage T type design.

  • Stainless steel interstage condenser pipe.

  • Interstage safety valve.

Image and text block

3. Vent Valve

After filling the cylinder, open the vent valve to discharge the remaining gas in the breathing air compressor, then the cylinder can be removed.

Image and text block

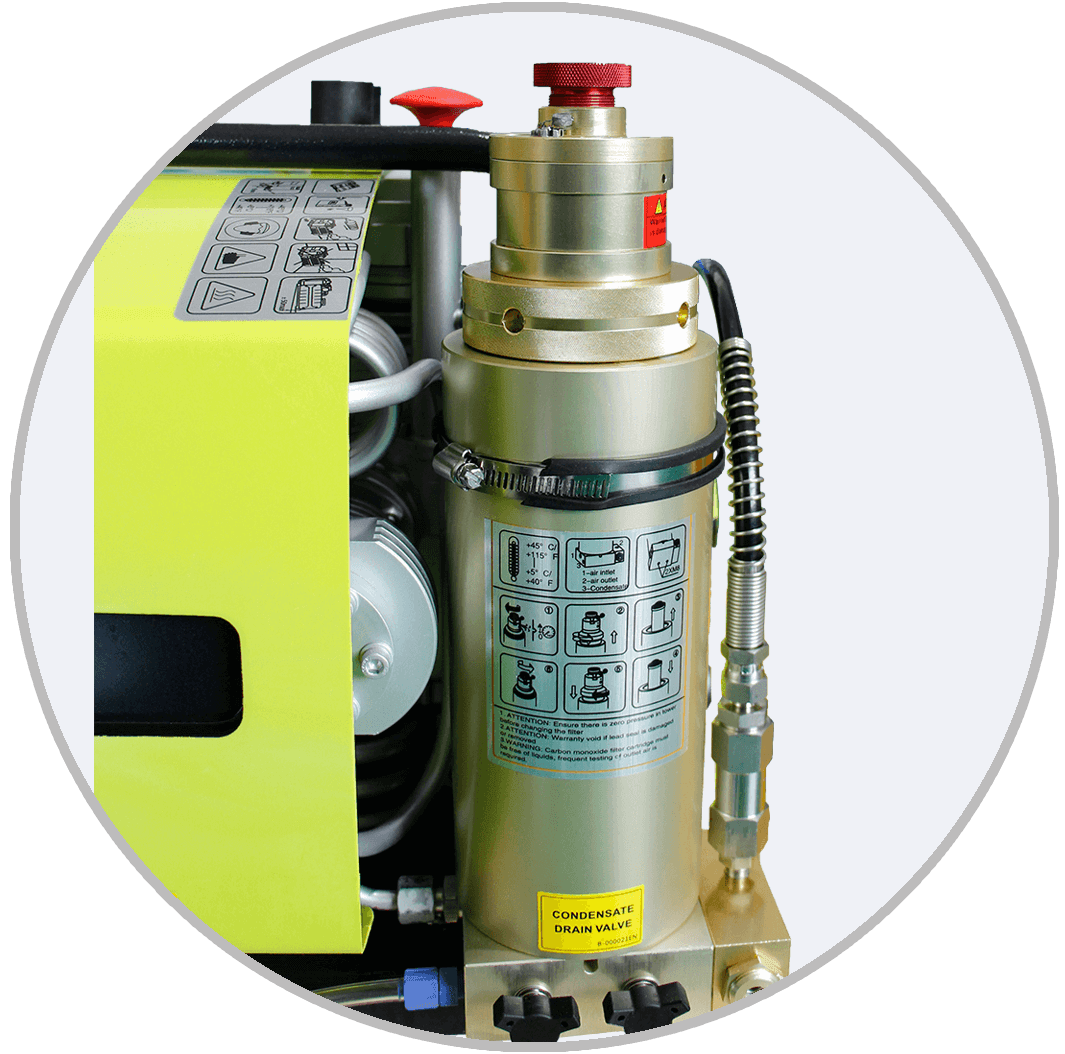

4. Active Carbon Molecular Sieve Filter

High-precision activated carbon molecular sieve filter Air Compressor conforms to the EN12021 Standards.

Has illustrated instructions on the bottle for safe and convenient use.

Pressure-limiting valve extend filter's life span.

Image and text block

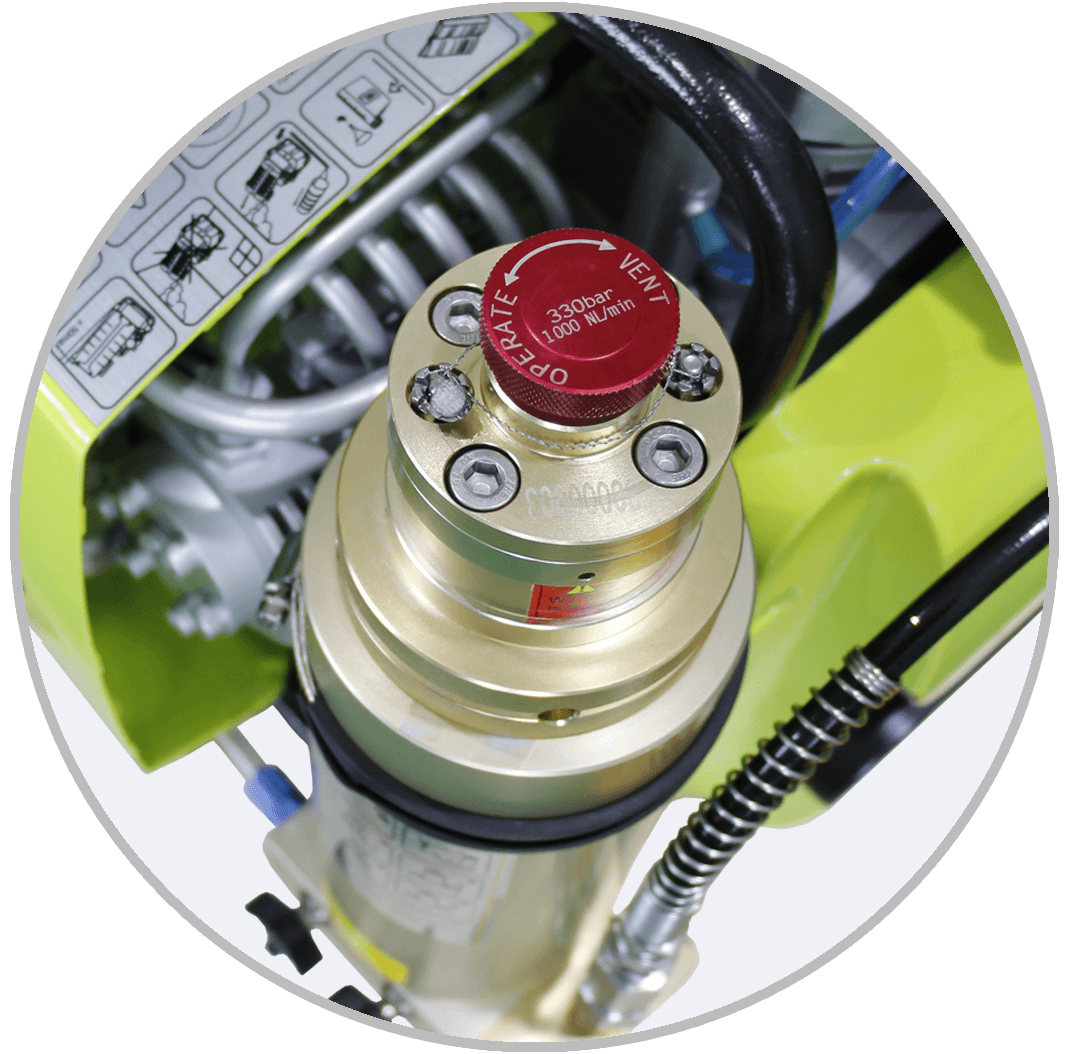

5. Safety valve

Final stage safety valve offer overload protection.

Image and text block

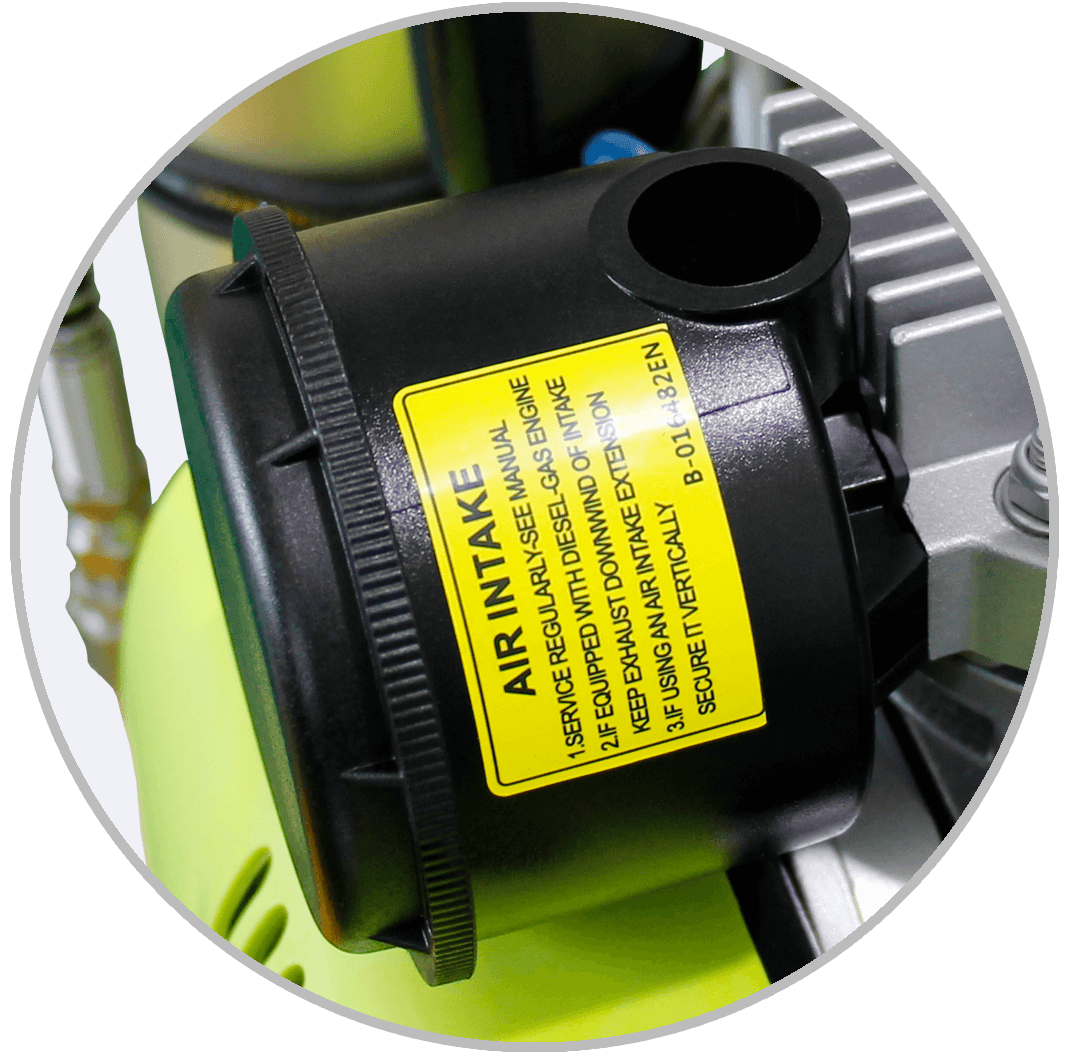

6. Intake Filter

Filter air to make compressed air comply with the EN12021 standard.

Image and text block

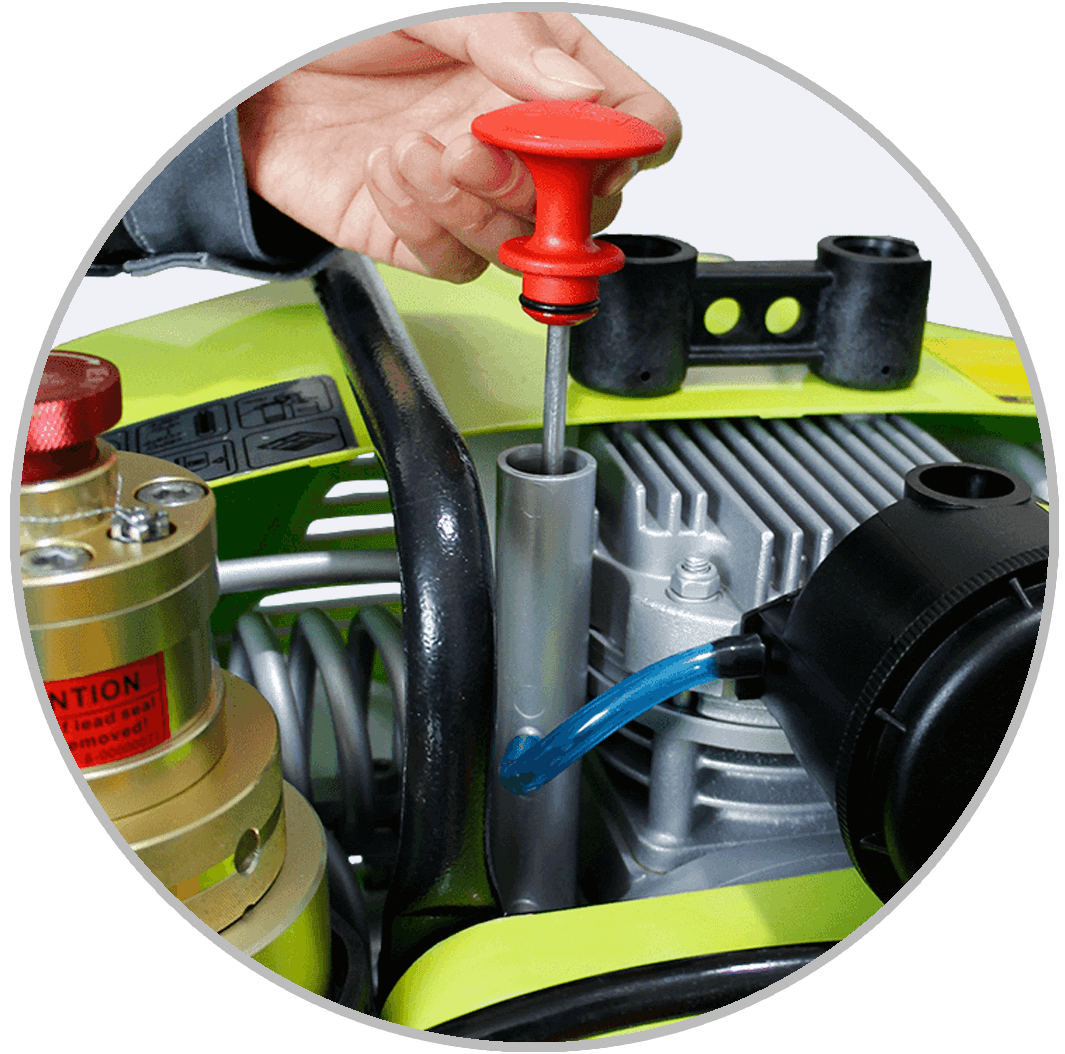

7. Oil Filling Barrel

Lubricating oil is thus injected, and lubrication is performed while the machine is running, thereby reducing wear and prolonging service life.

Image and text block

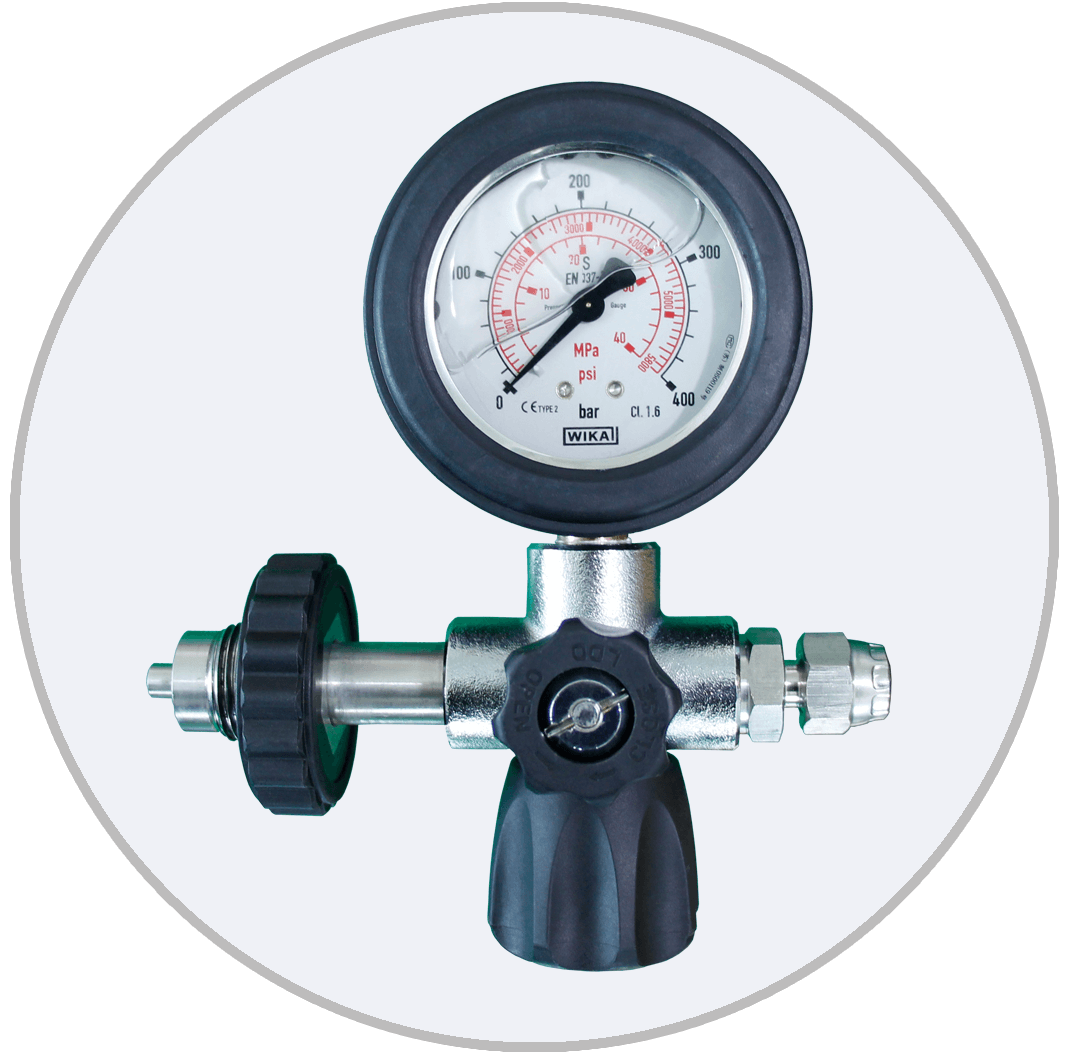

8. Filling Valve With Gauge

Pressure display and pressure relief valve, easy to operate.

Image and text block

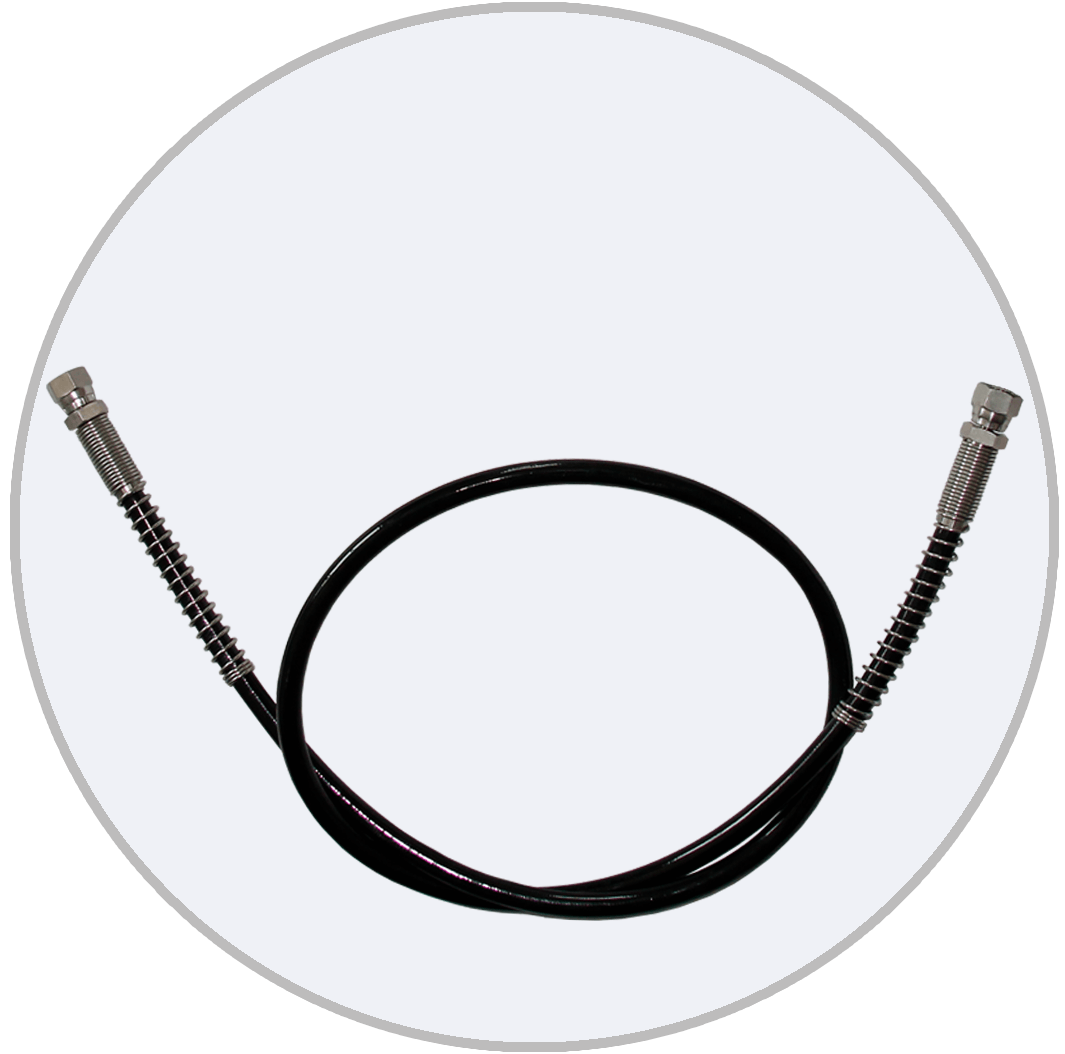

9. High pressure tube

Breathing air compressor special inflatable hose——12*1200.

Image and text block
Image and text block
Image and text block
Image and text block

Specifications

  • With power line and magnetic starting switch

  • Oil-water separator and filter using aluminum alloy integrated design

  • Final stage safety valve offer overload protection

  • Button or switch with start and stop

  • Metal frame with spray coating

  • Stainless steel interstage condenser pipe

  • Active carbon molecular sieve filter

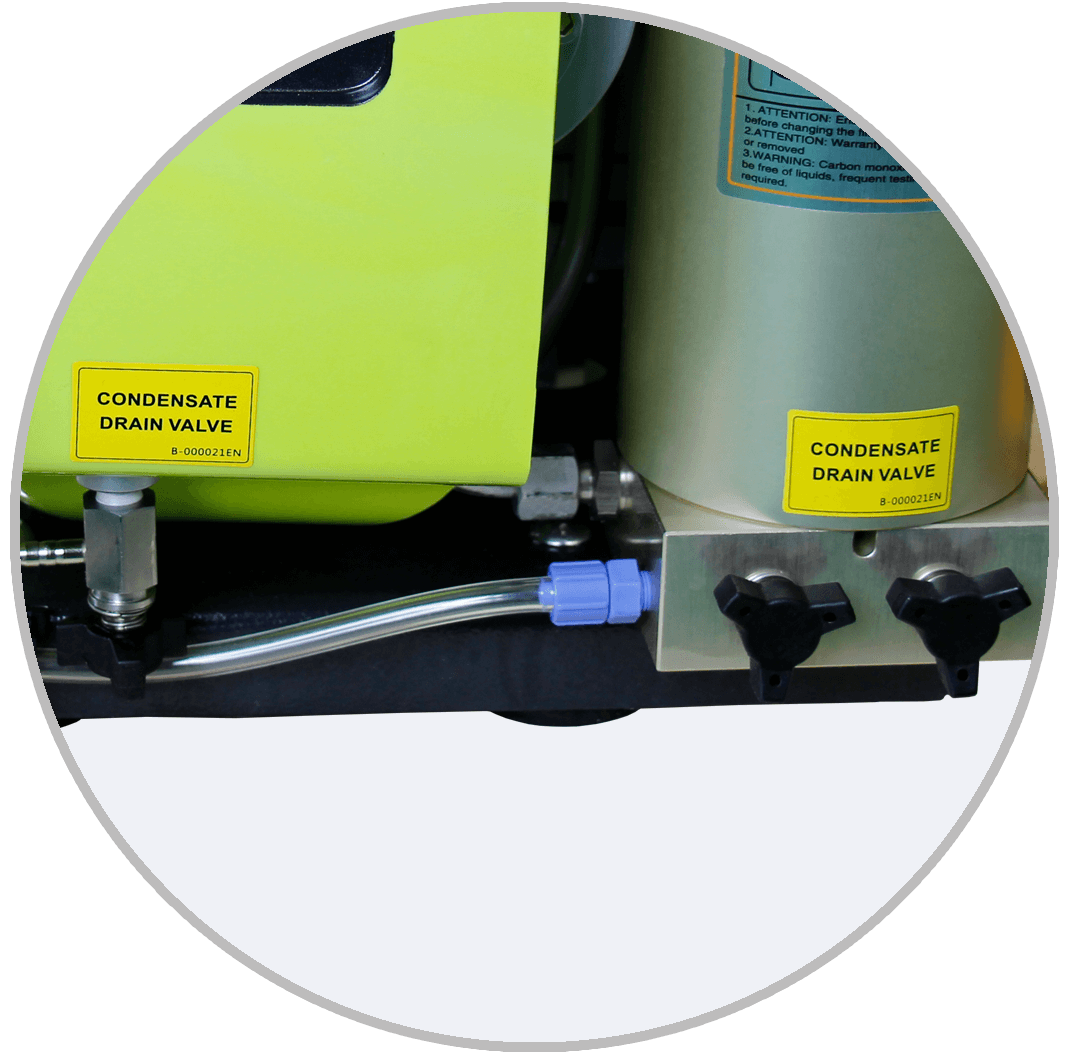

  • Condensate drain valve

  • Final pressure-limiting valve

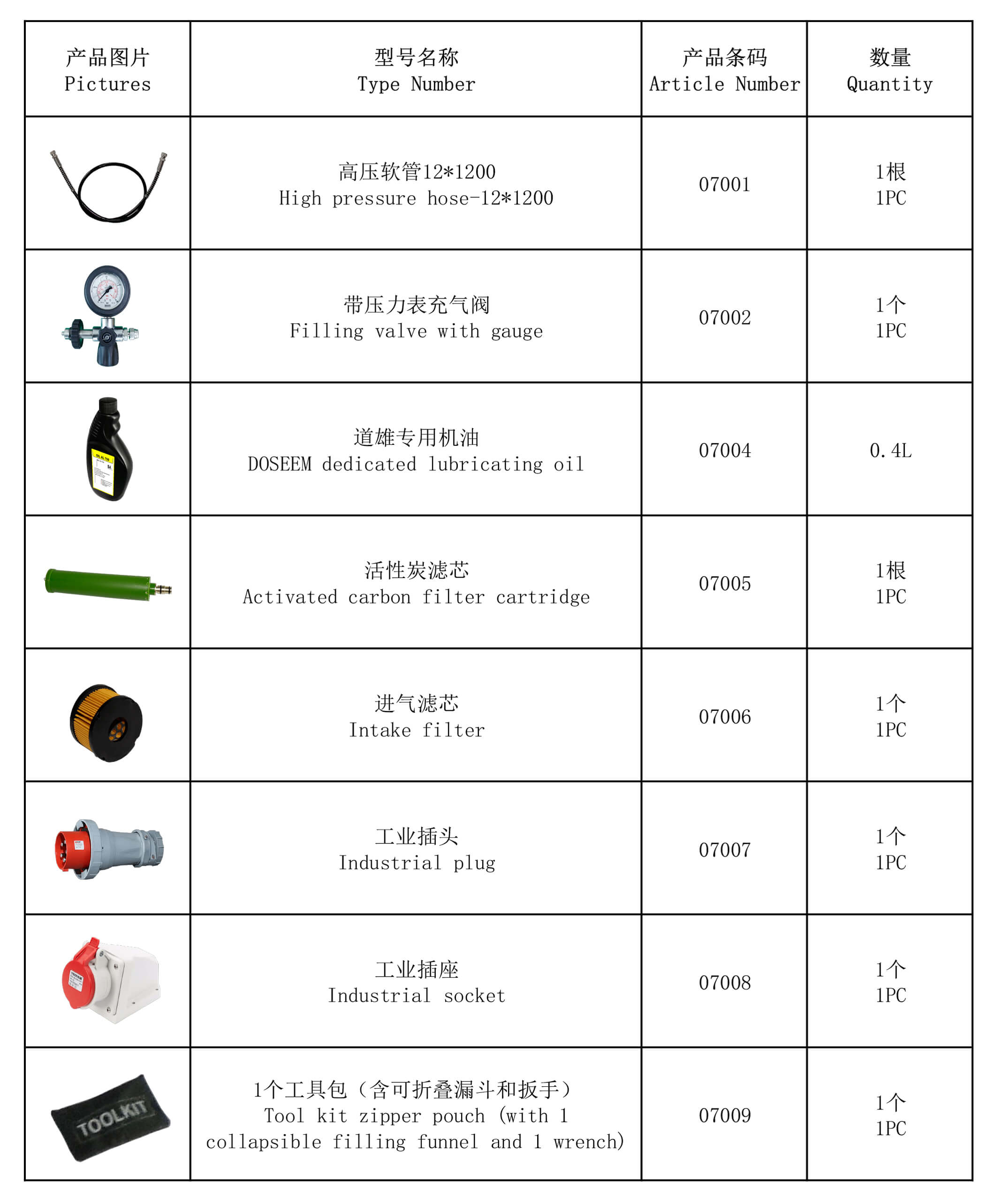

Standard Configuration

Sample 1 for three columns

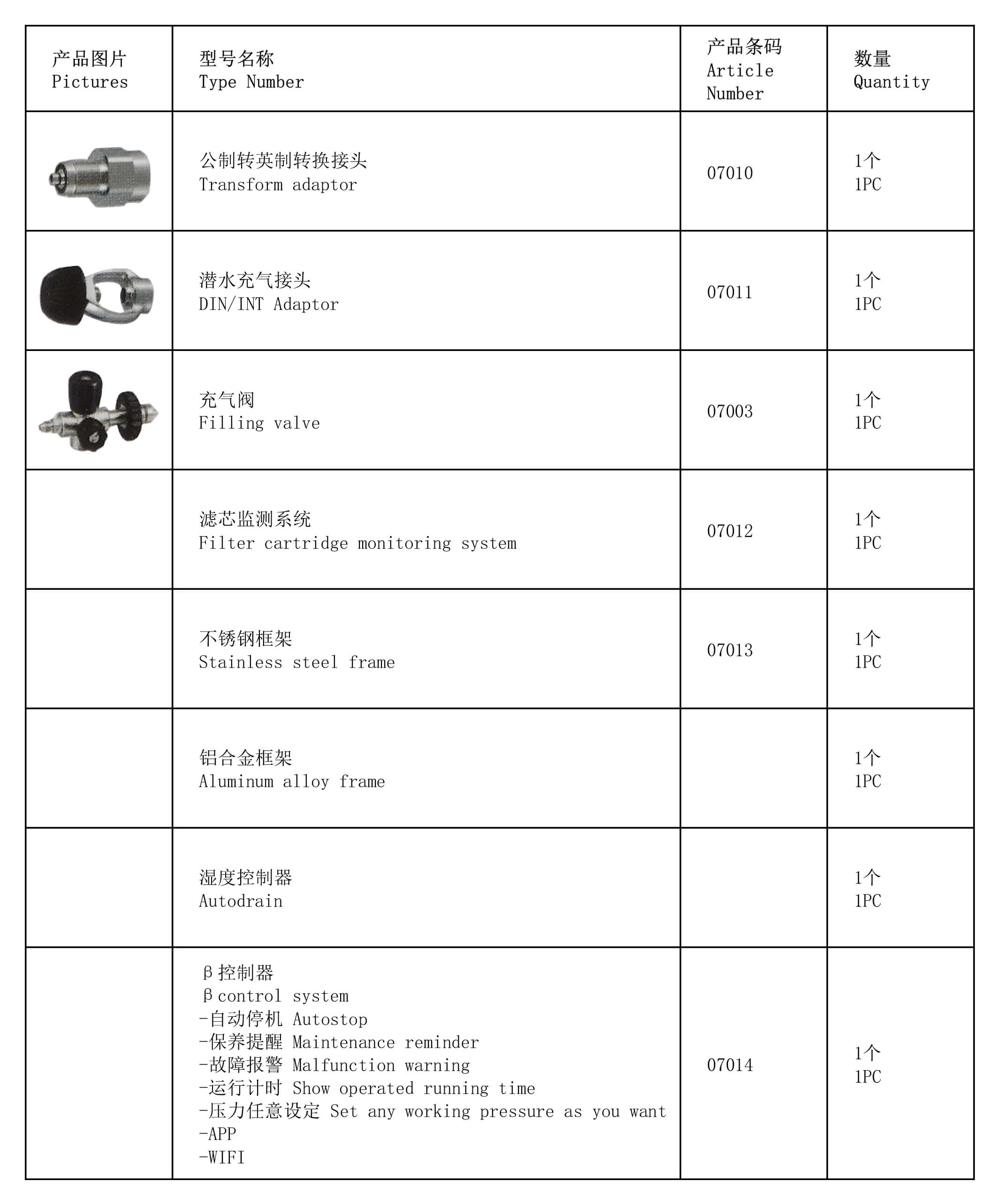

Available Options

Sample 1 for three columns

Technical parameter

Type
DS120-W
Capacity (L/min)
120
Capacity (CFM)
4.2
Power (kW)
3.0
Drive options
220-230V 50Hz Single phase electric motor (Recommend)
220-230V 60Hz Single phase electric motor
Working pressure (bar) (Positive pressure air breather filling pressure)
300
Working pressure (bar) (SCUBA(Aqualung) filling pressure)
225
Fuel quantity (L)
0.4
Rotation speed (RPM)
1850
Noise level (dB)
≤80
Breathing air standard
EN12021
Weight (KG/LBS)
50/114.7
Volume (cm) (L*W*H)
71*40*40
Filling time (min) ( Time to fill 1L cylinder 0-200Bar (0-3000psi) )
1.67
Sample 1 for three columns

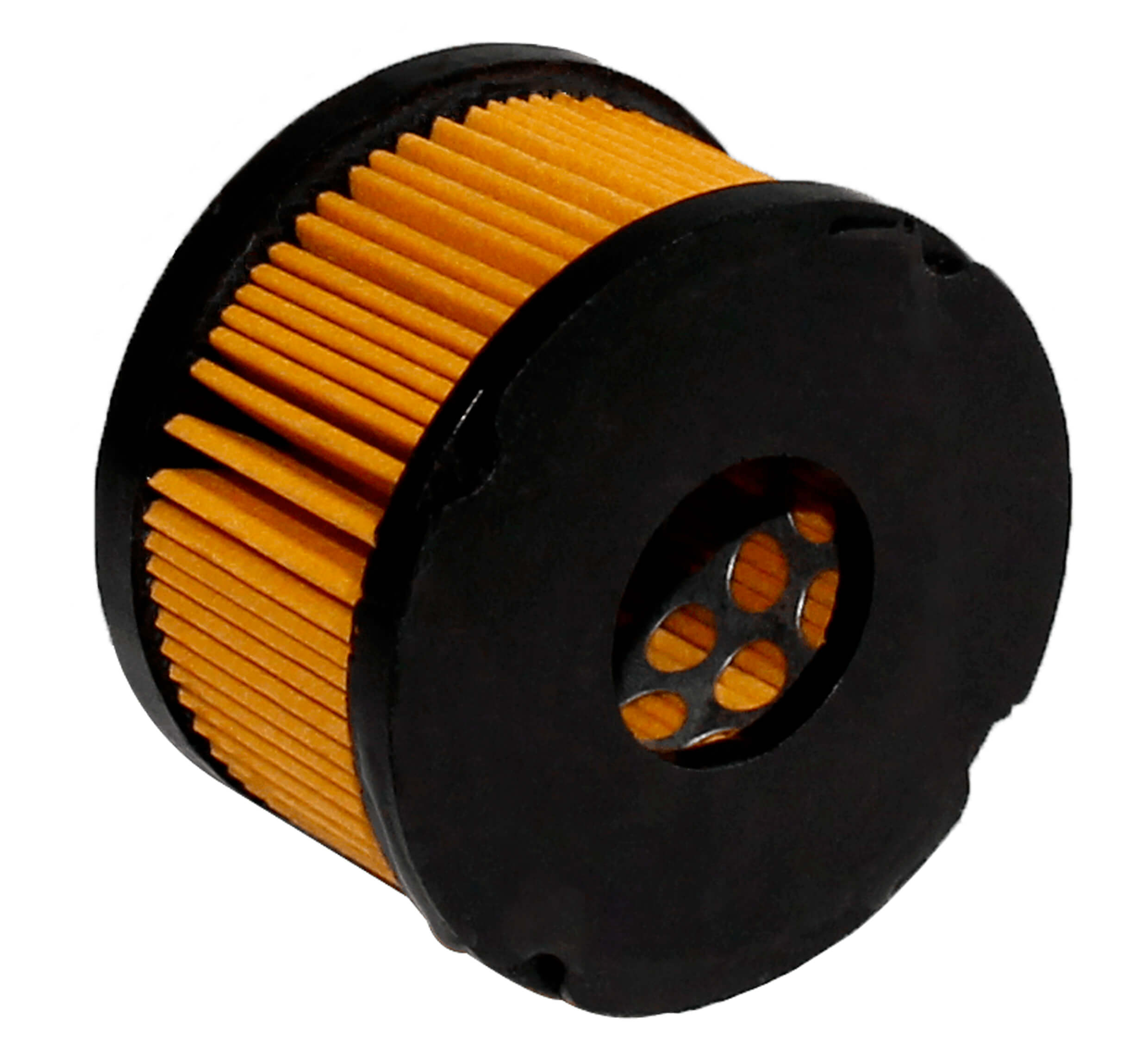

Intake filter

Sample 1 for three columns

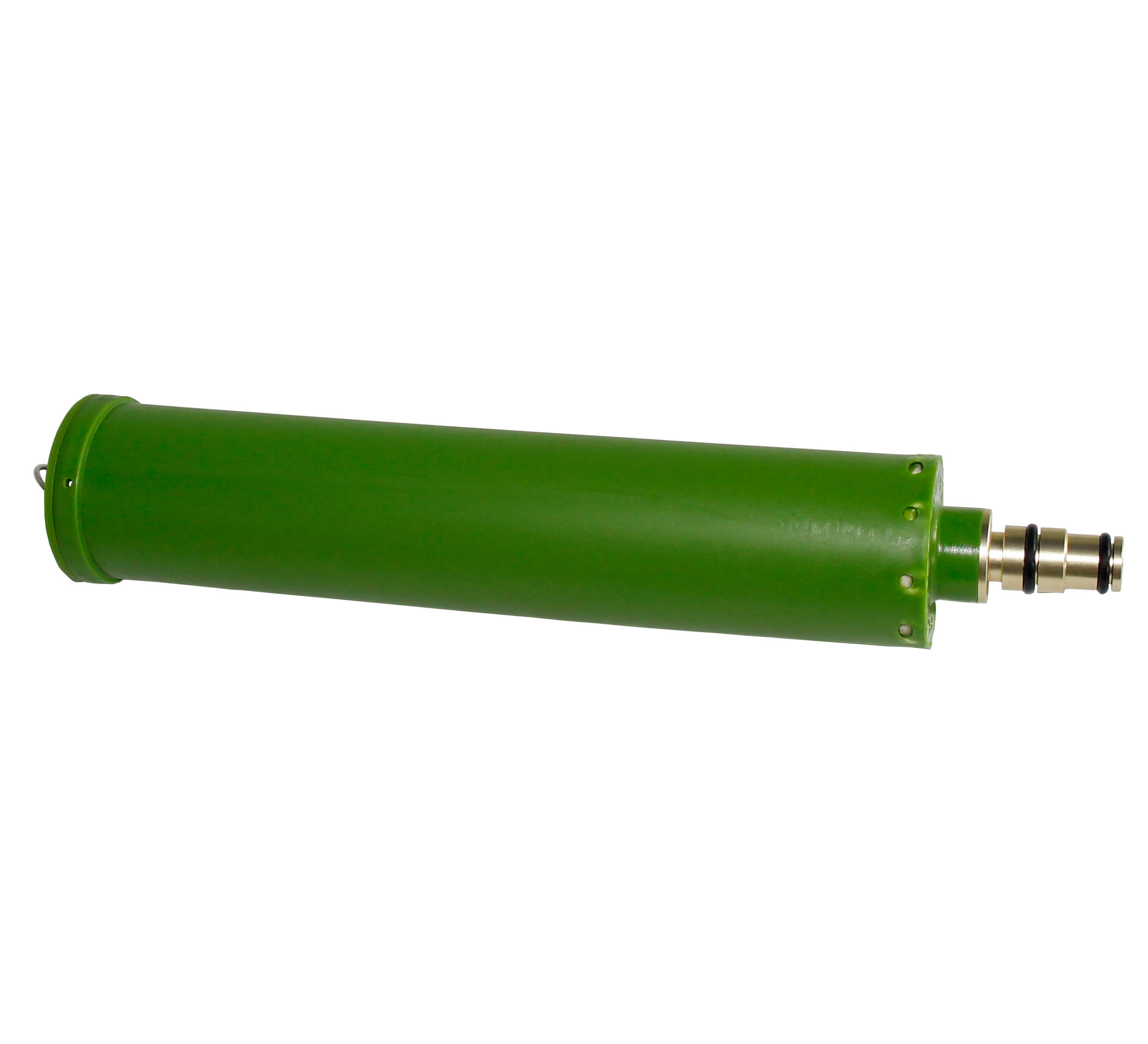

Activated carbon filter cartridge

Sample 1 for three columns

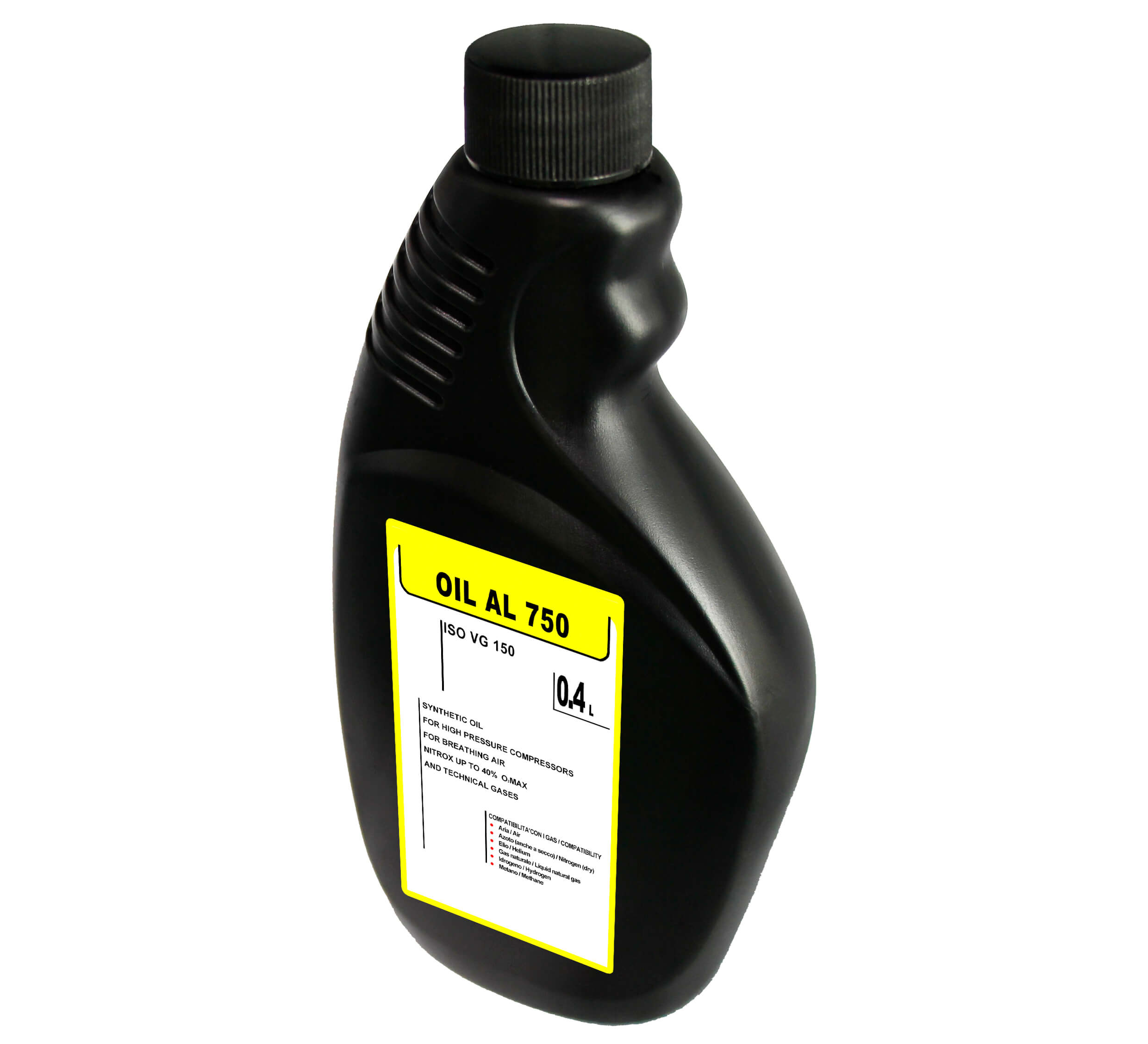

Lubricating oil

Sample 1 for three columns

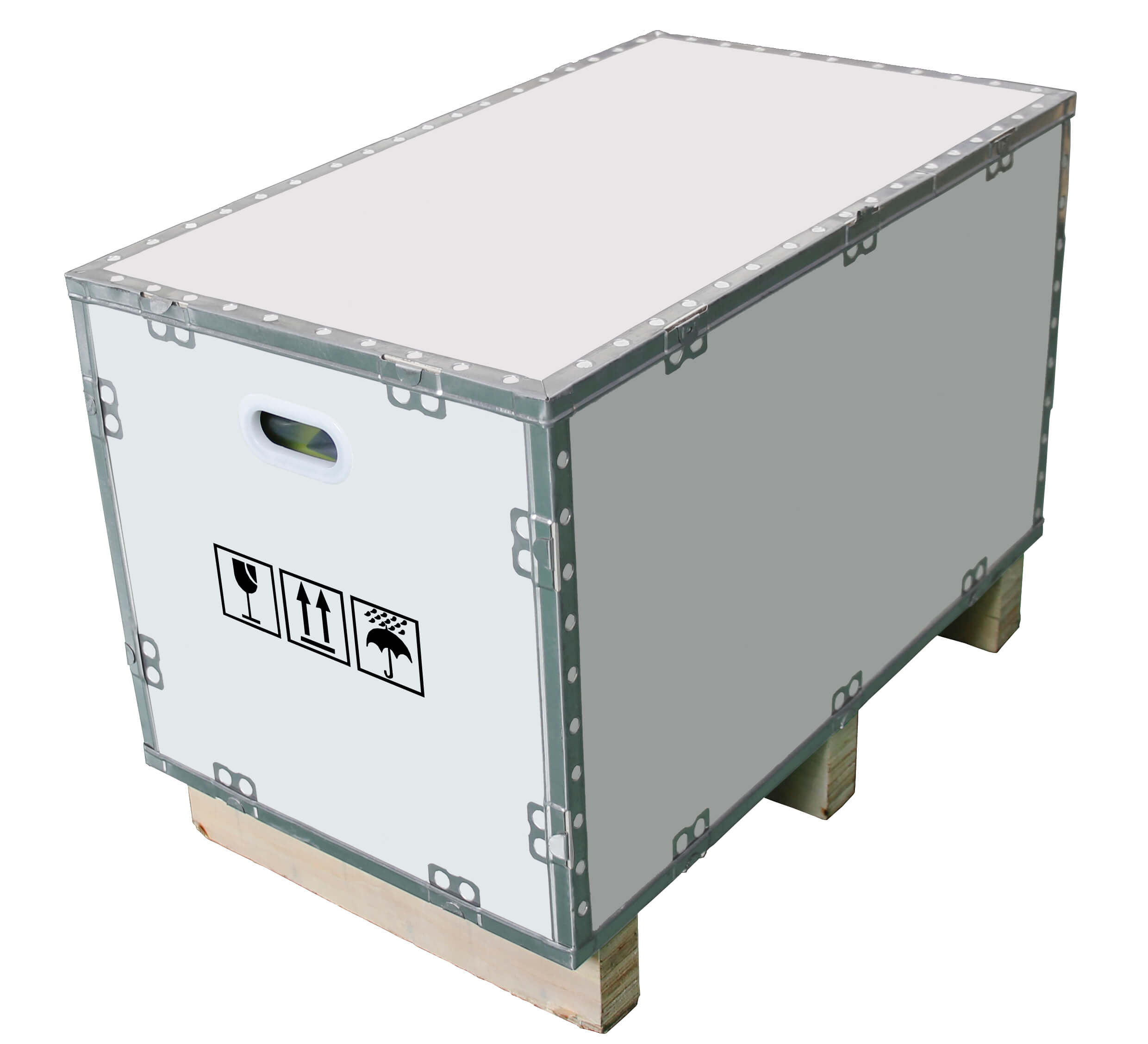

Outer packing

Odoo - Sample 1 for three columns
