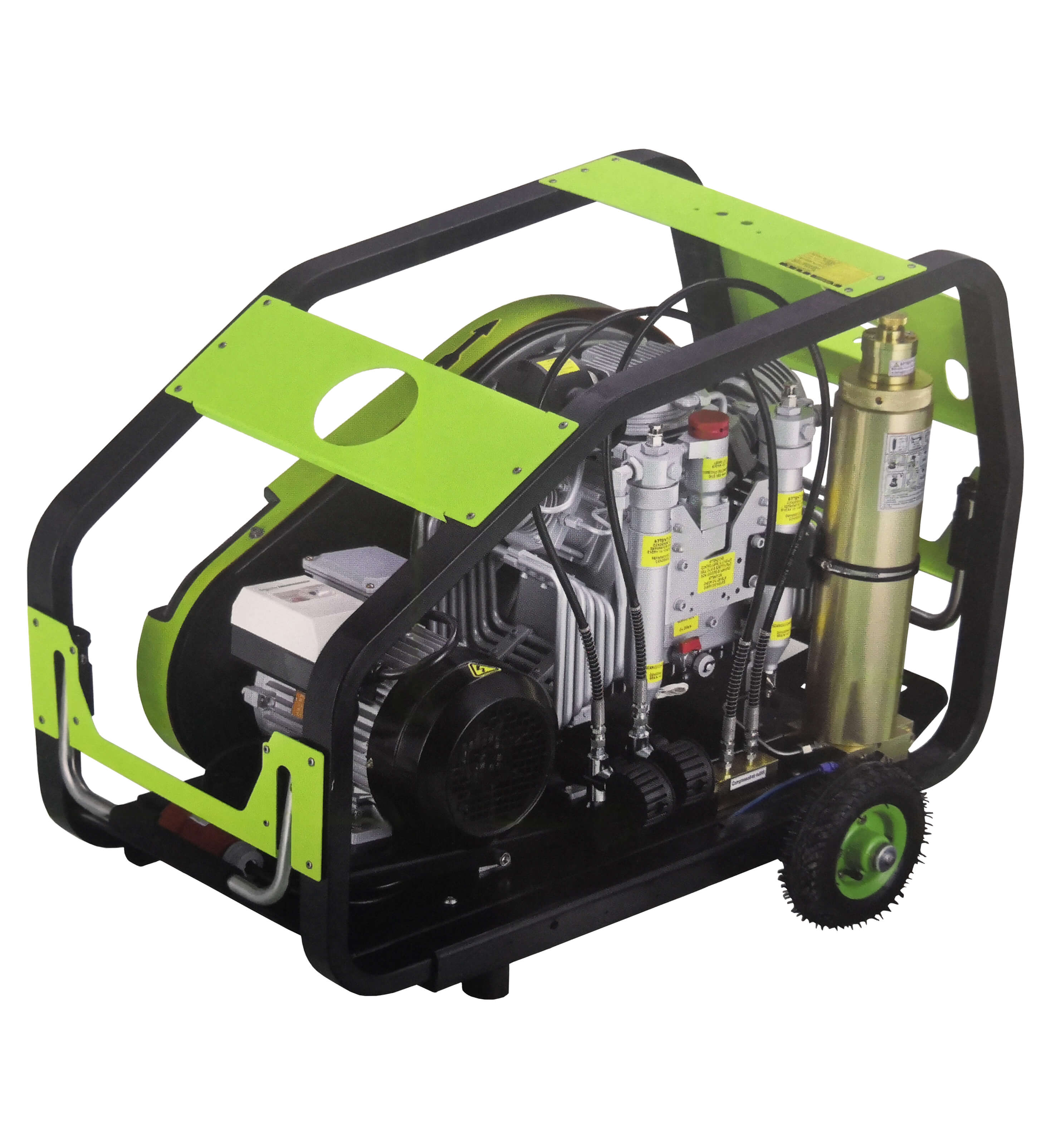

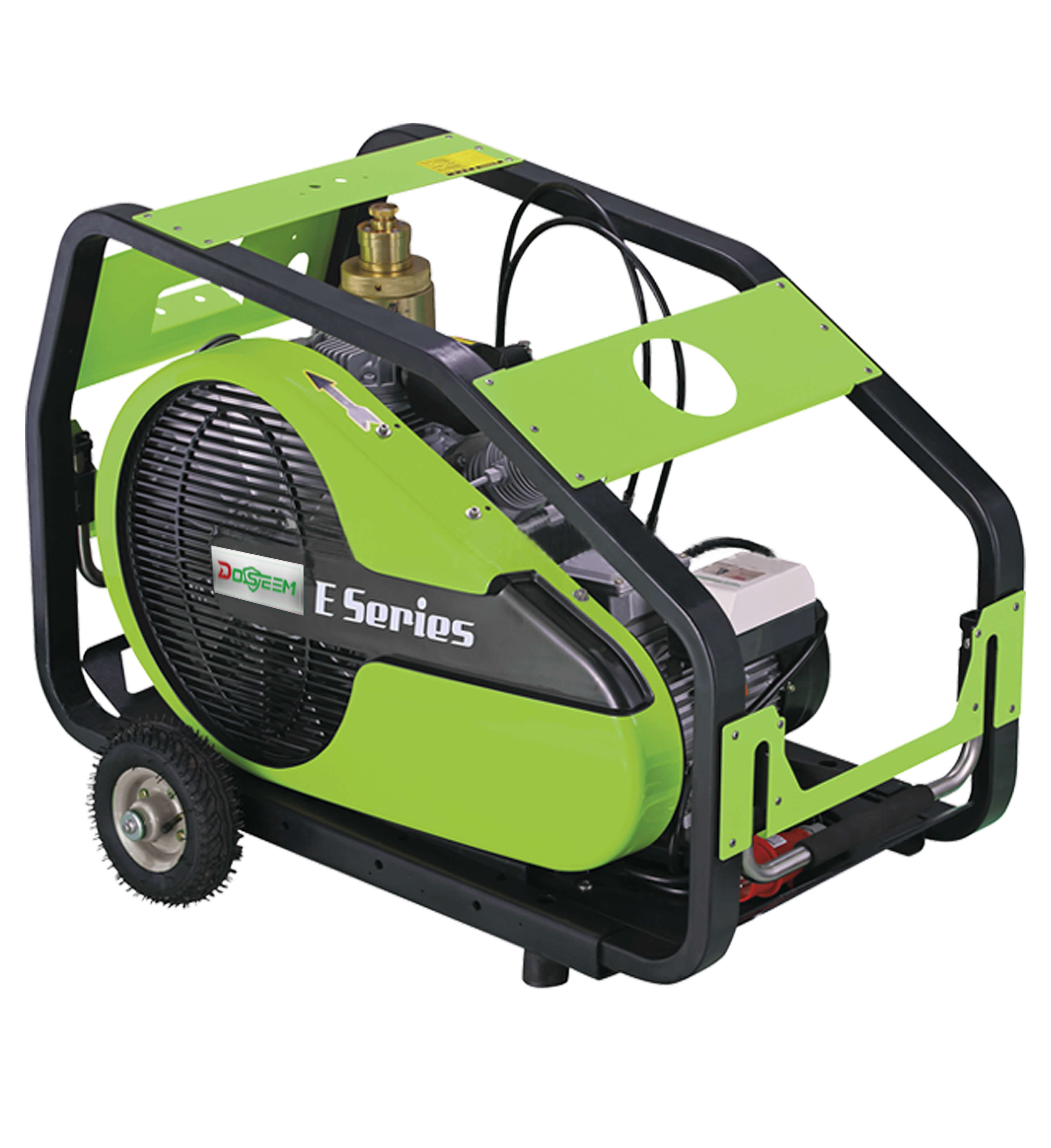

DOSEEM DS300-B STD Portable Breathing Air Compressor

Article number: 06013

Moldel: DS300-B STD

Introduction:

With a protecive portable compressor frame, DS300-B STD can be used in the harshest operating environment. Possessing a powerful compressor block, the E Series can be used in recreational breathing air filling or for heavy duty industrial use. Designed with a back wheel, this allows for greater convenience for the operator.

It is also applicable for use in a range of industries including: Recreational Diving, Defence, Shipbuilding, Medical Engineering, Shooting and Automobile Racing.

Image and text block
Image and text block

               1. SUBARU Petrol Engine

               2. Pumping Unit

               3. Intake Filter

               4. Oil Filling Barrel

               5. Safety Valve

               6. Active Carbon Molecular Sieve Filter

               7. High pressure tube

               8. Filling Valve With Gauge

               9. Vent Valve

Image and text block

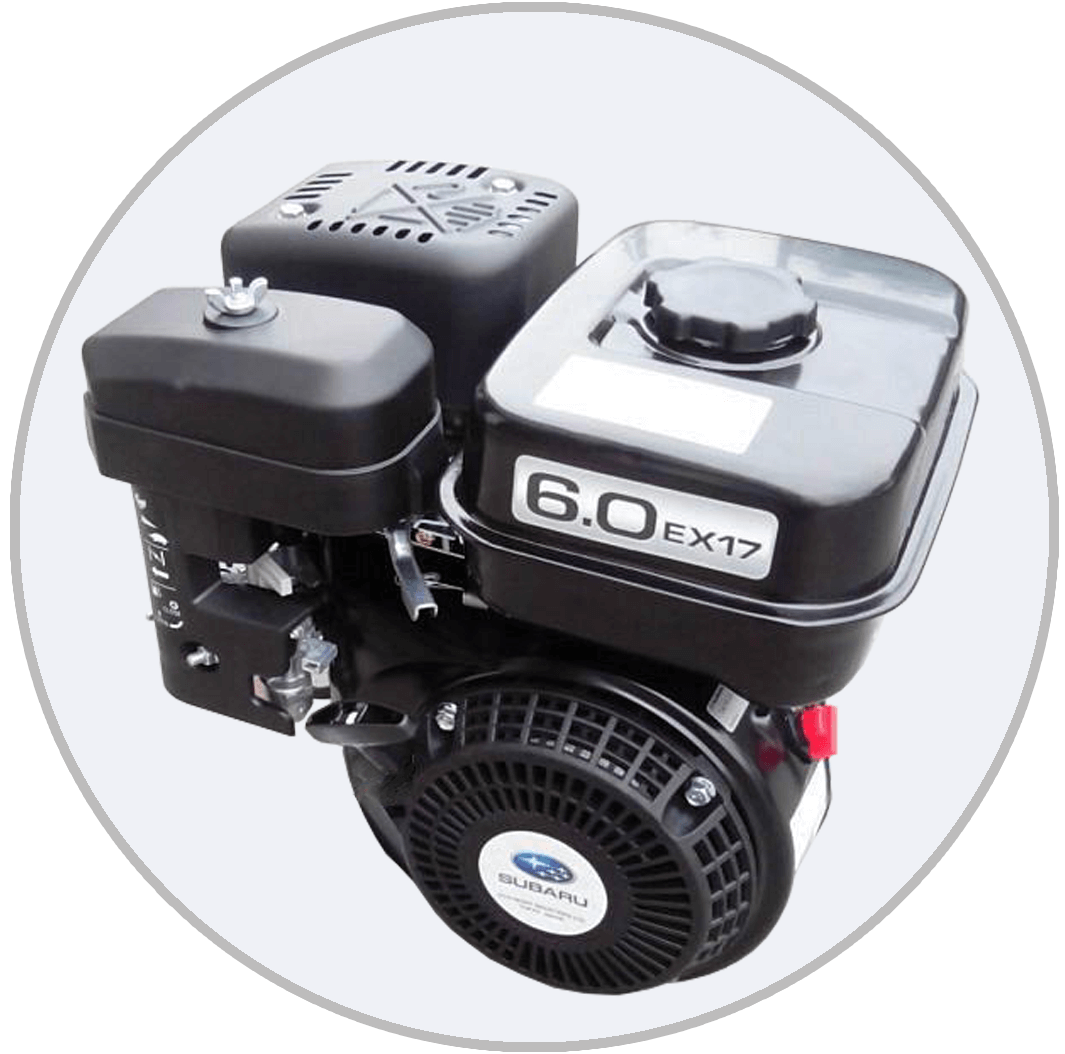

1. SUBARU Petrol Engine

The working cycle consists of four piston strokes, namely, intake stroke, compression stroke, power stroke and exhaust stroke.

Image and text block

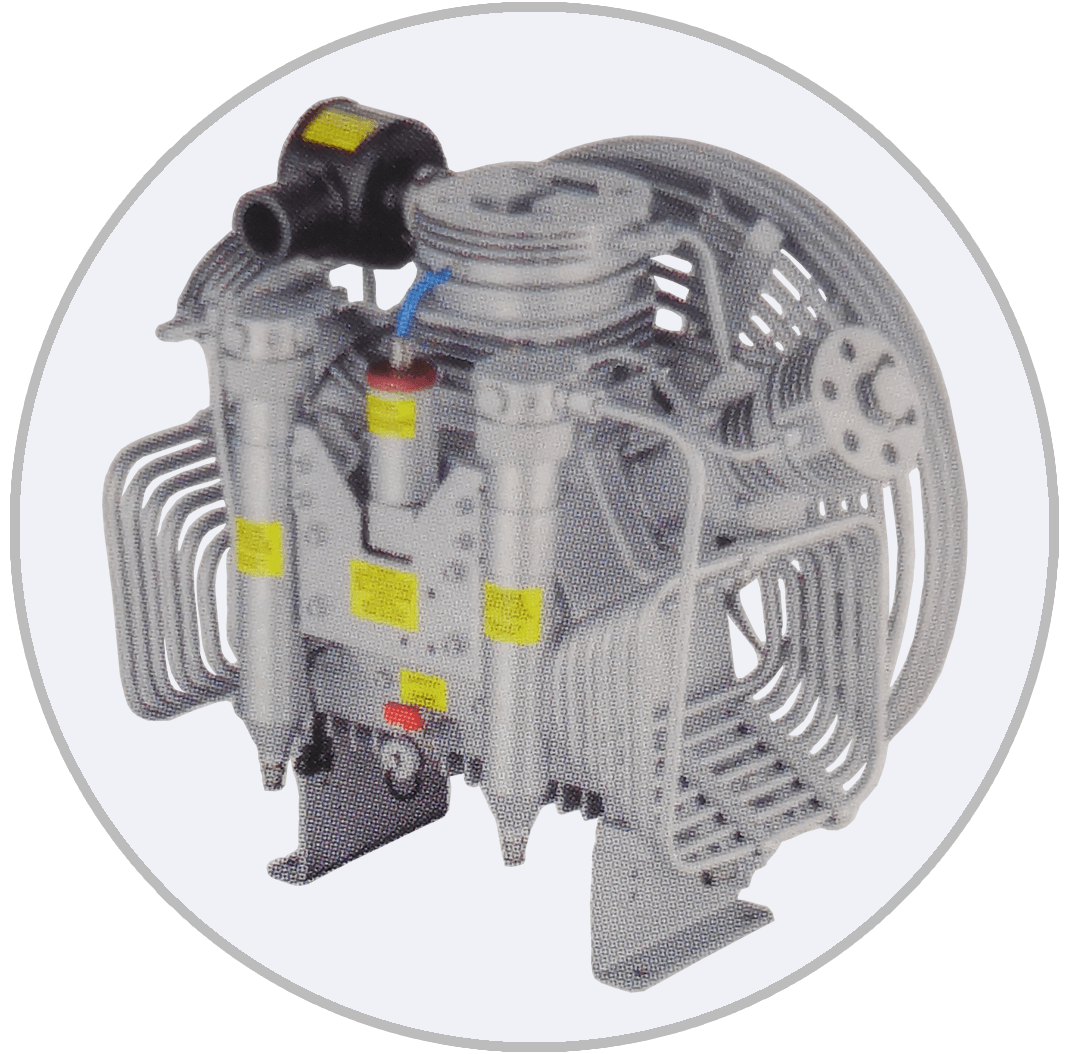

2. Pumping Unit

  • E series pumping unit made in Germany.

  • Interstage oil-water separator.

  • High-performance 3-stage W type design.

  • Stainless steel interstage condenser pipe.

  • Interstage safety valve.

Image and text block

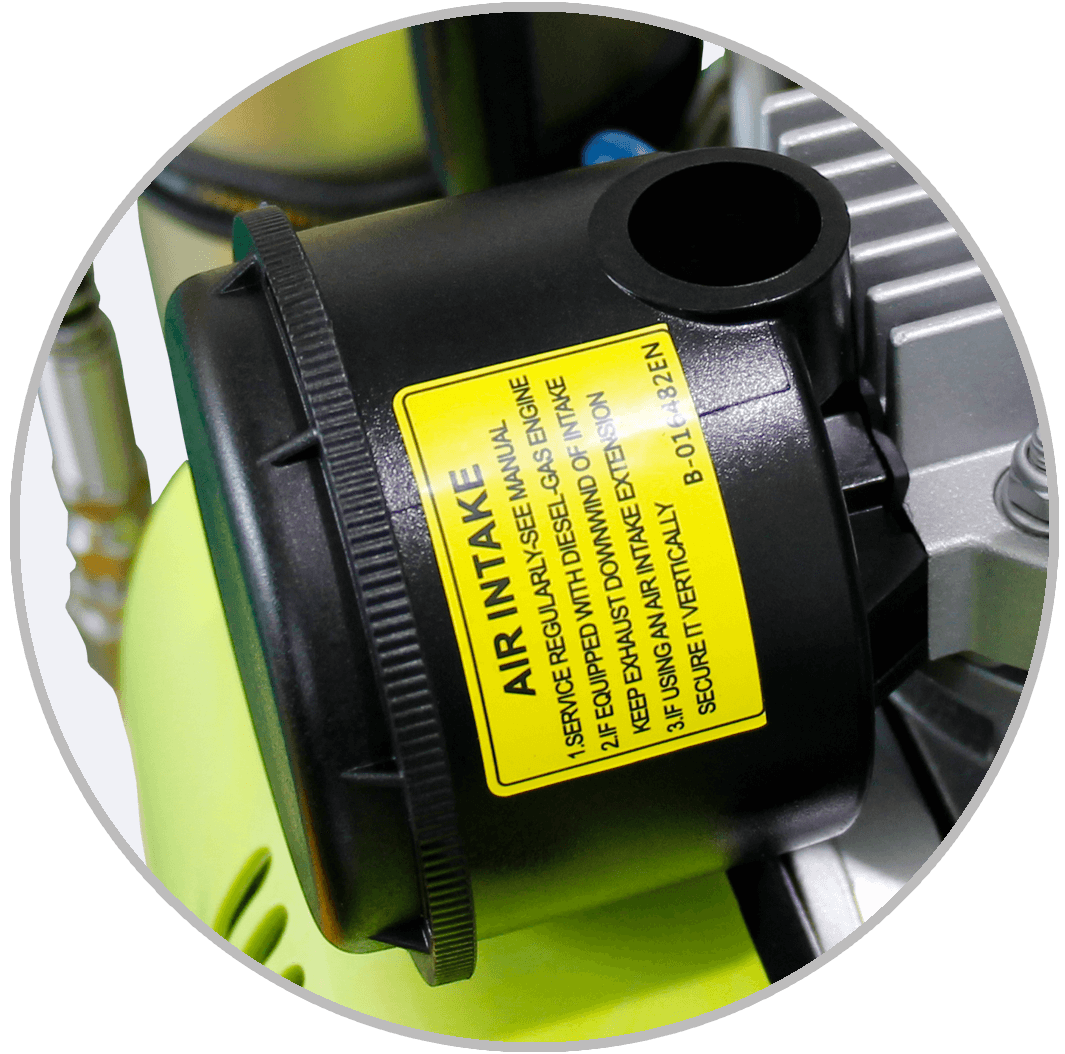

3. Intake Filter

Filter air to make compressed air comply with the EN12021 standard.

Image and text block

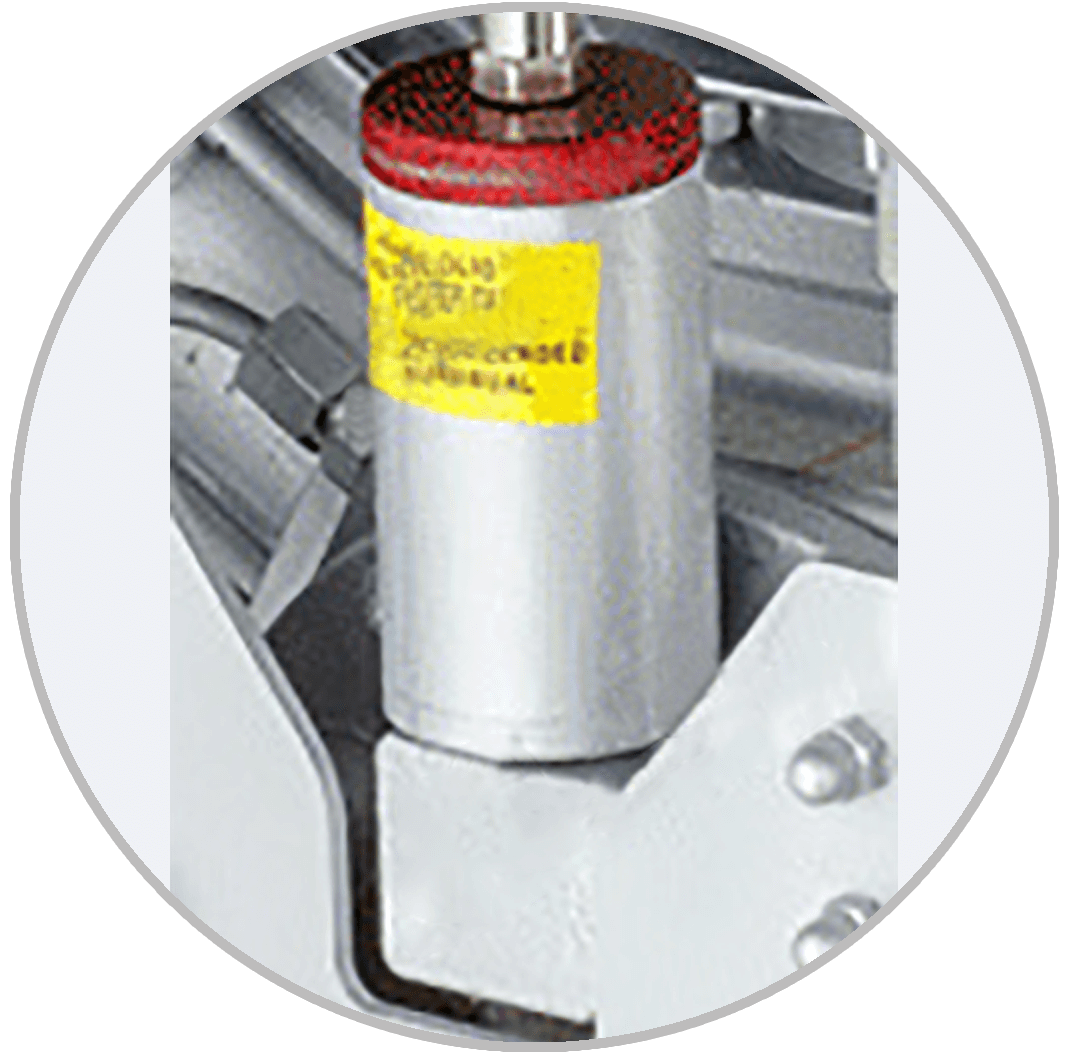

4. Oil Filling Barrel

Lubricating oil is thus injected, and lubrication is performed while the machine is running, thereby reducing wear and prolonging service life.

Image and text block

5. Safety valve

Final stage safety valve offer overload protection.

Image and text block

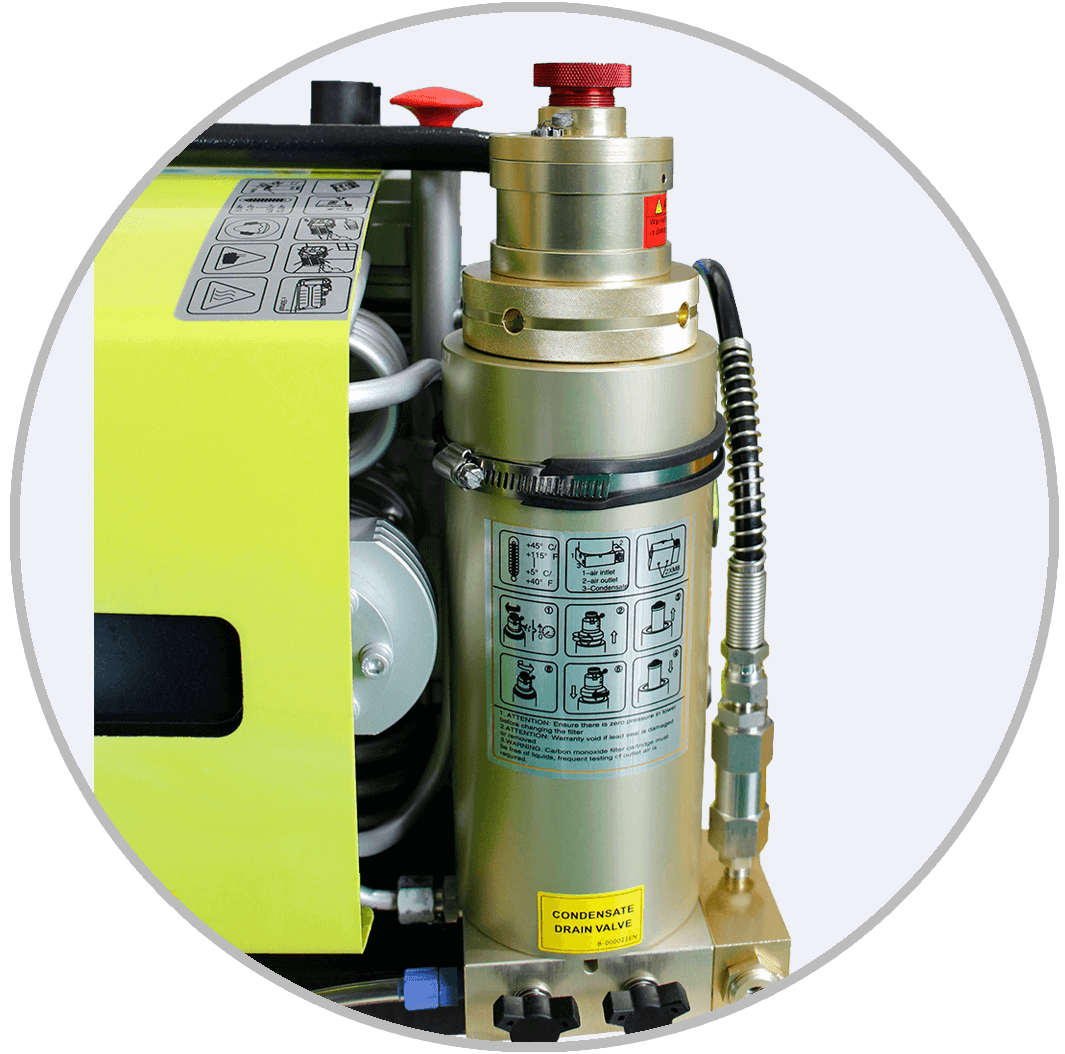

6. Active Carbon Molecular Sieve Filter

High-precision activated carbon molecular sieve filter Air Compressor conforms to the EN12021 Standards.

Has illustrated instructions on the bottle for safe and convenient use.

Pressure-limiting valve extend filter's life span.

Image and text block

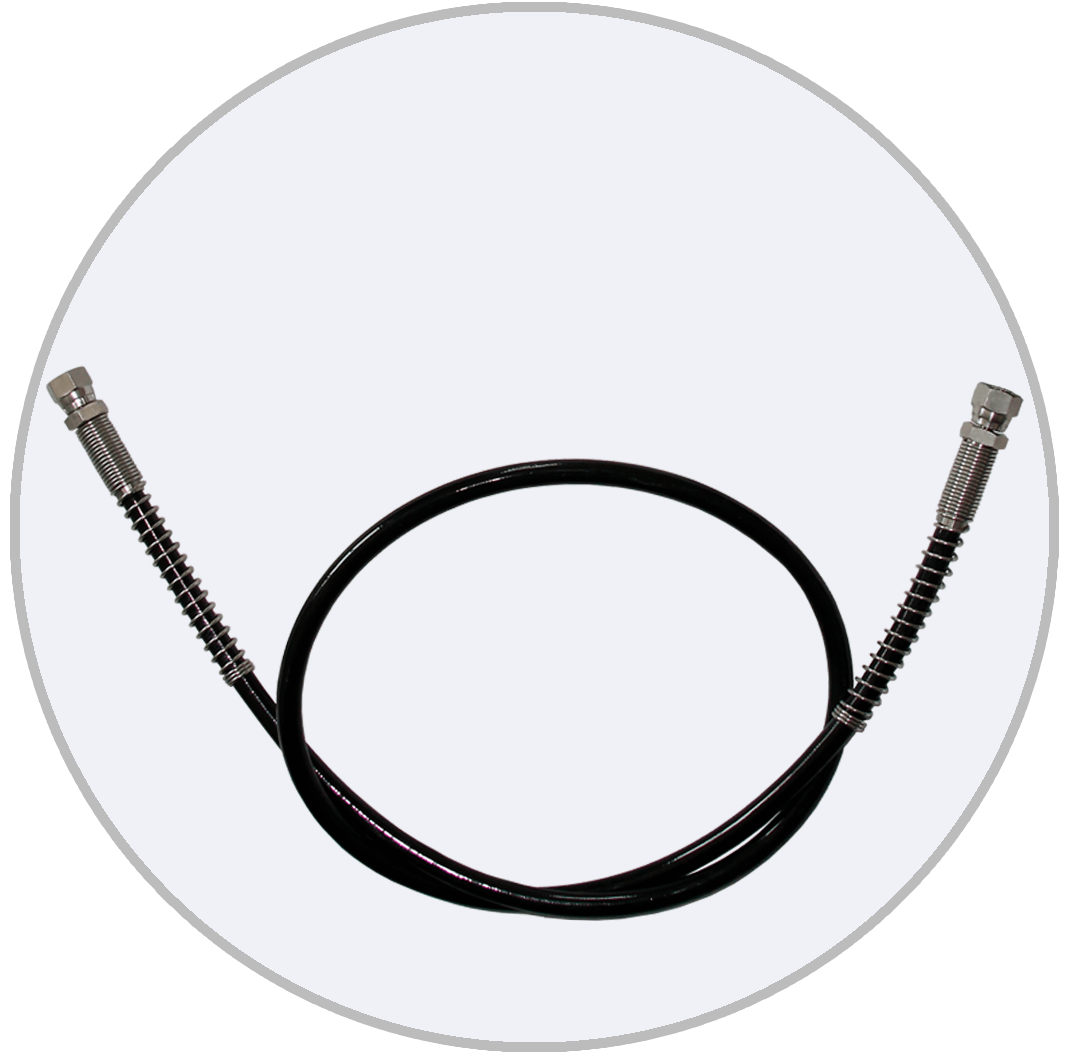

7. High pressure tube

Breathing air compressor special inflatable hose——12*1200

Image and text block

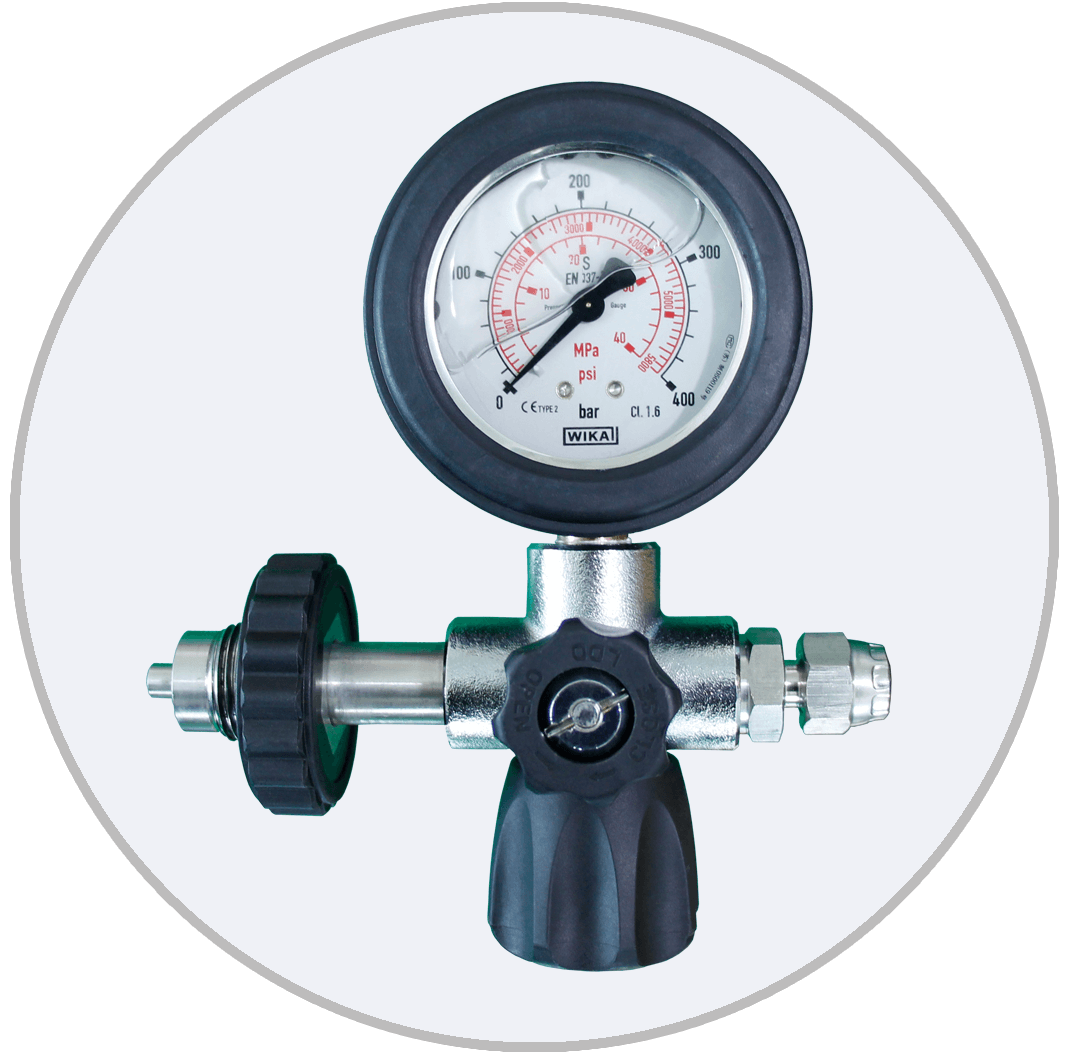

8. Filling Valve With Gauge

Pressure display and pressure relief valve, easy to operate.

Image and text block

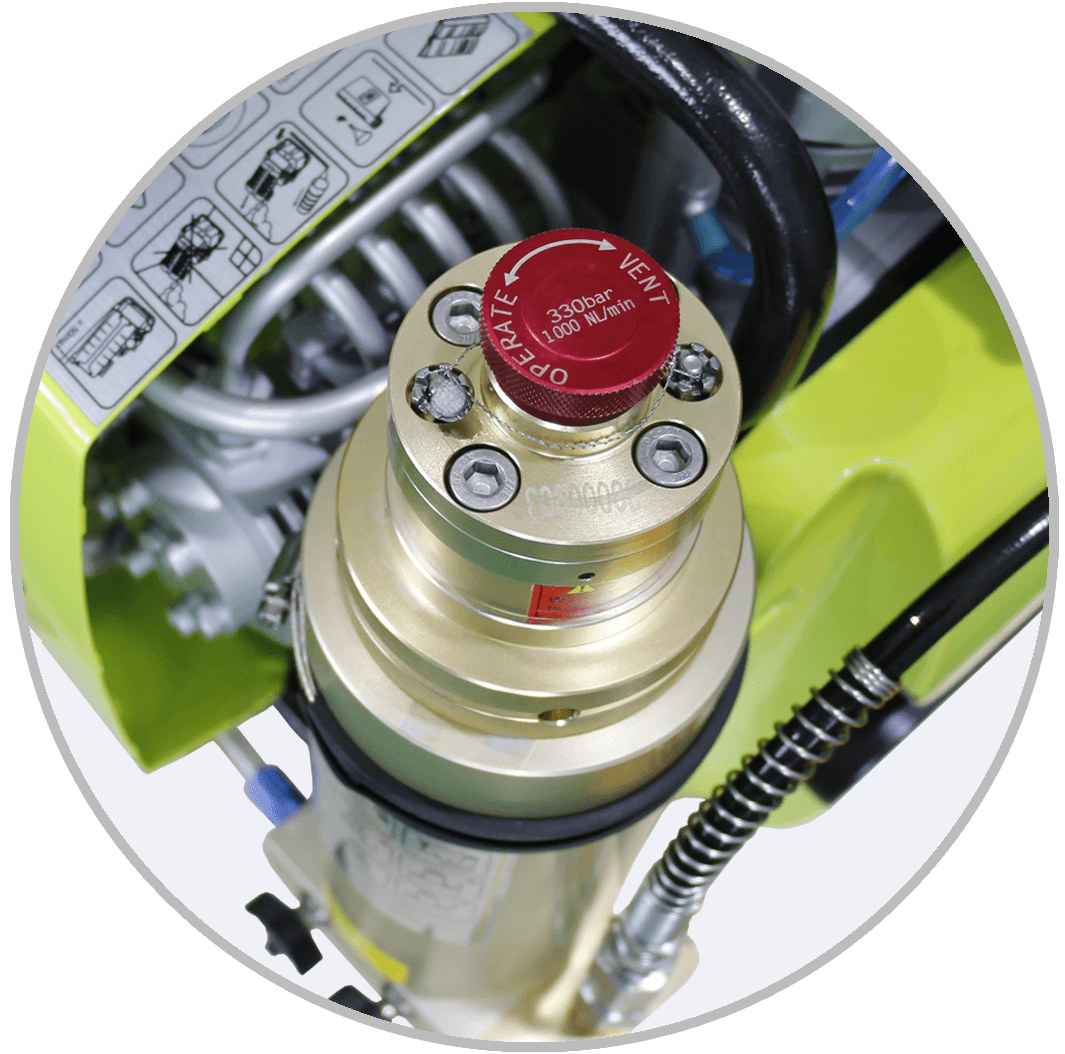

9. Vent Valve

After filling the cylinder, open the vent valve to discharge the remaining gas in the breathing air compressor, then the cylinder can be removed.

Specifications

  • High-performance 3-stage W type design

  • Interstage condenser pipe

  • Interstage pressure safety valve

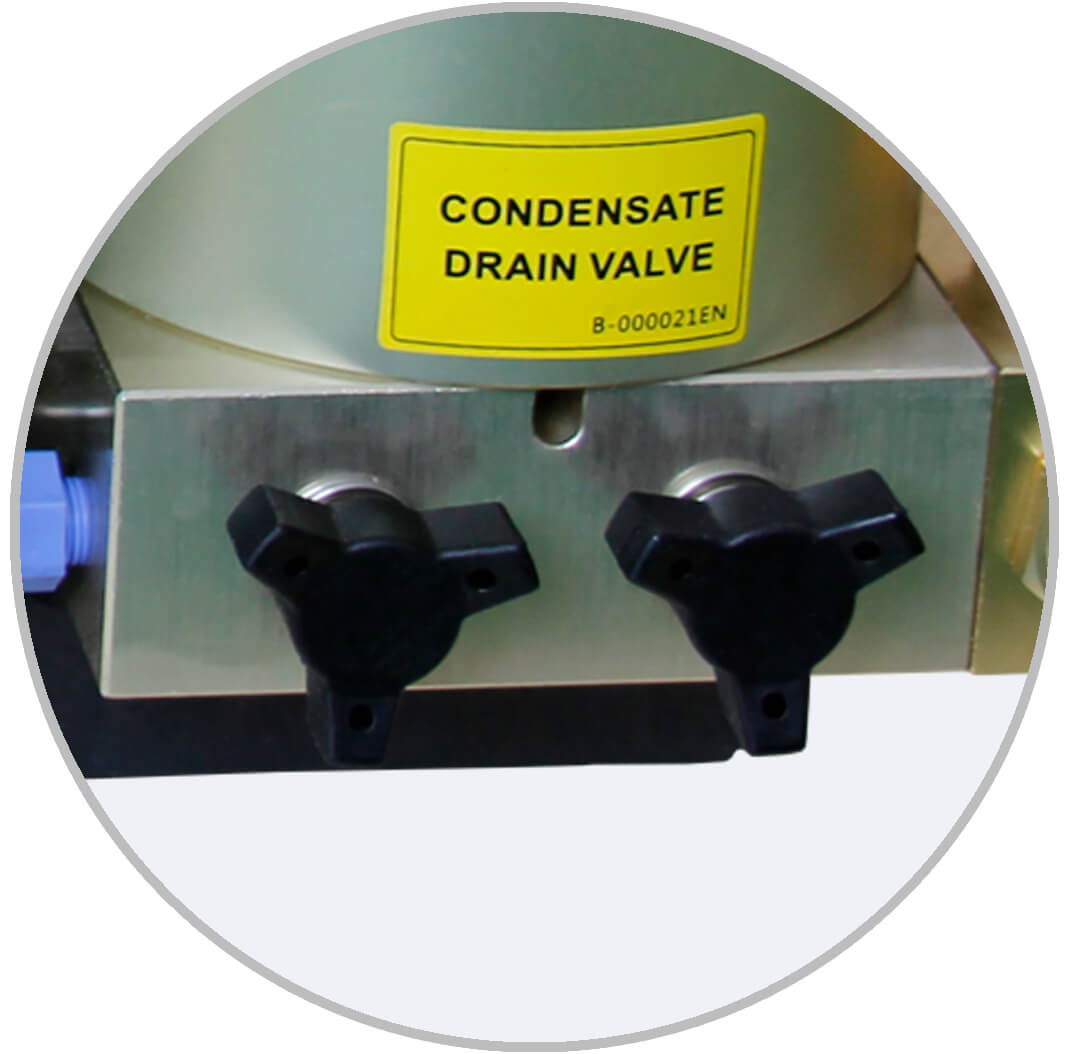

  • Autodrain / Manual drain system

  • Autostop

  • Electronic timer

  • Multiple drive options

  • Multiple auxiliary configuration meet different demands

  • Has illustrated instructions on the bottle for safe and convenient use

  • Safety valve and drain system integrated design

  • Active carbon molecular sieve filtration system

  • Interstage oil-water separator

  • Air inlet filter

  • Air conforms to the EN12021 standards

  • Strong anti-collision frame structure

  • Filtration system with armored structure

  • Final stage safety valve offer overload protection

  • Motor overload protection

  • Cut off switch

  • Fan and block protection cover

  • Anti-vibration pressure

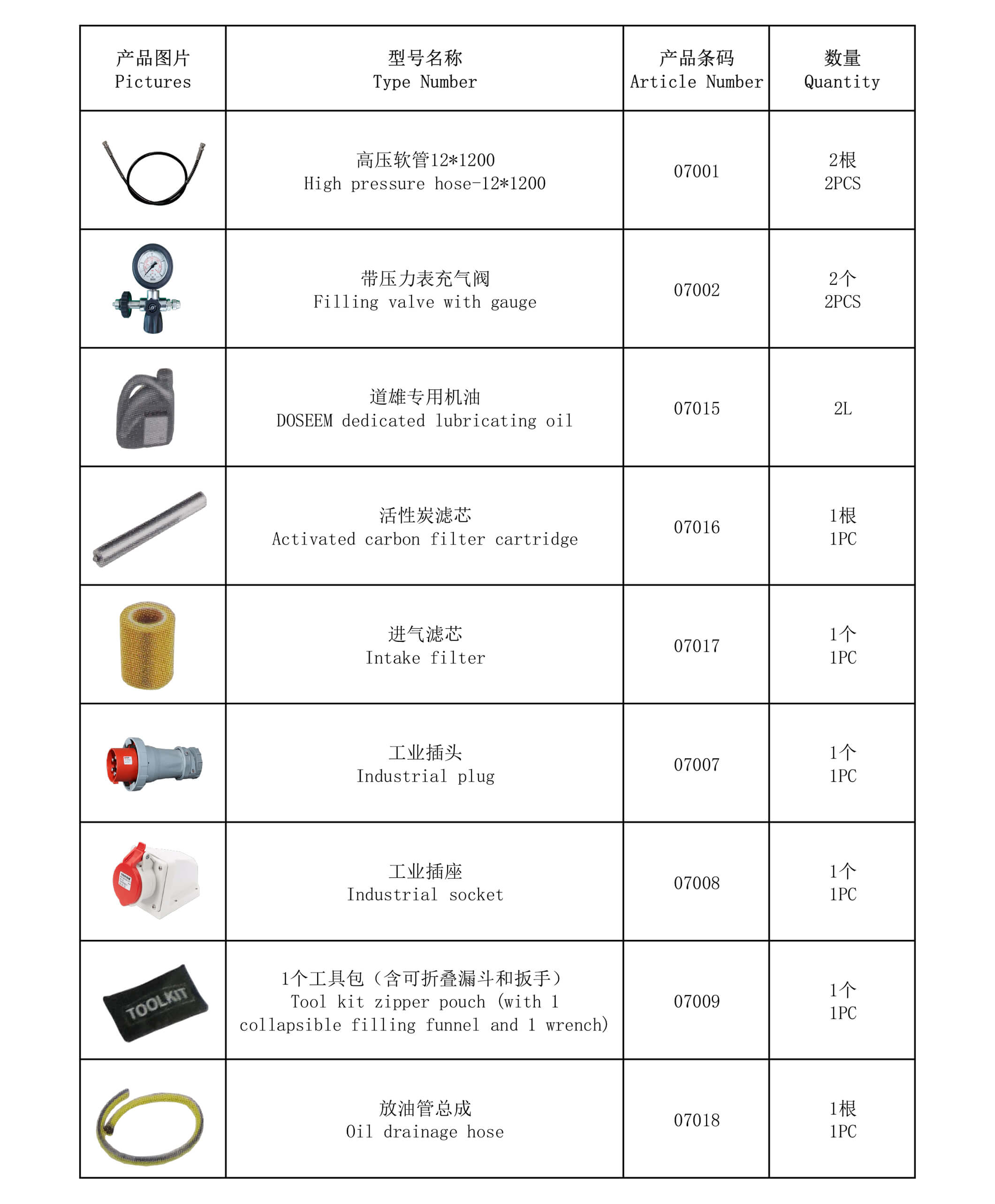

Standard Configuration

Sample 1 for three columns

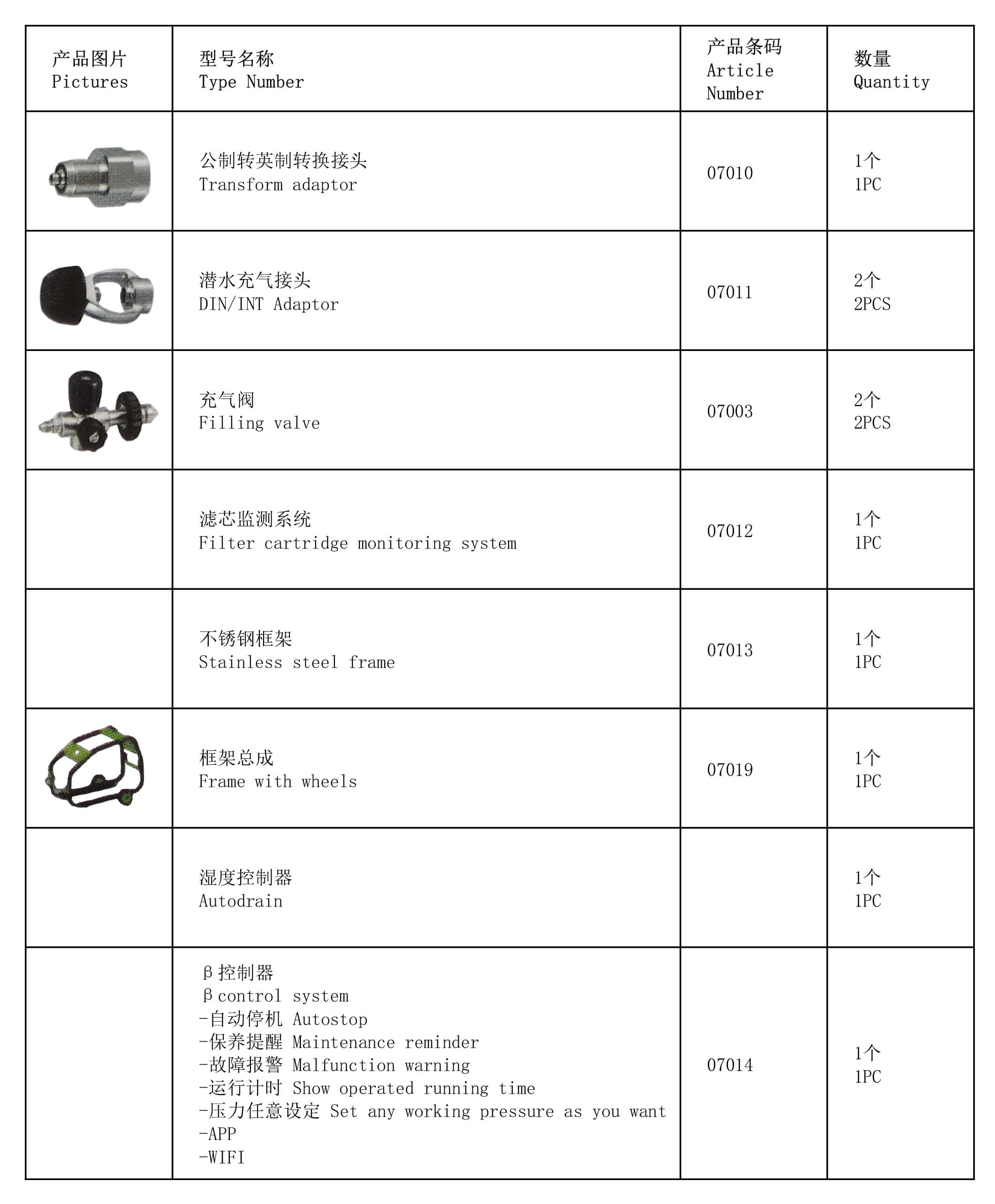

Available Options

Sample 1 for three columns

Technical parameter

Type
DS300-B STD
Capacity (L/min)300
Capacity (CFM)
10.6
Power (HP)
9.5
Drive options
SUBARU petrol engine
Working pressure (bar) (Positive pressure air breather filling pressure)
300
Working pressure (bar) (SCUBA(Aqualung) filling pressure)
225
Fuel quantity (L)
2
Rotation speed (RPM)
1750
Noise level (dB)
≤90
Breathing air standard
EN12021
Weight (KG/LBS)
180/397
Volume (mm) (L*W*H)
1180*640*760
Filling time (min) ( Time to fill 1L cylinder 0-200Bar (0-3000psi) )
0.67
