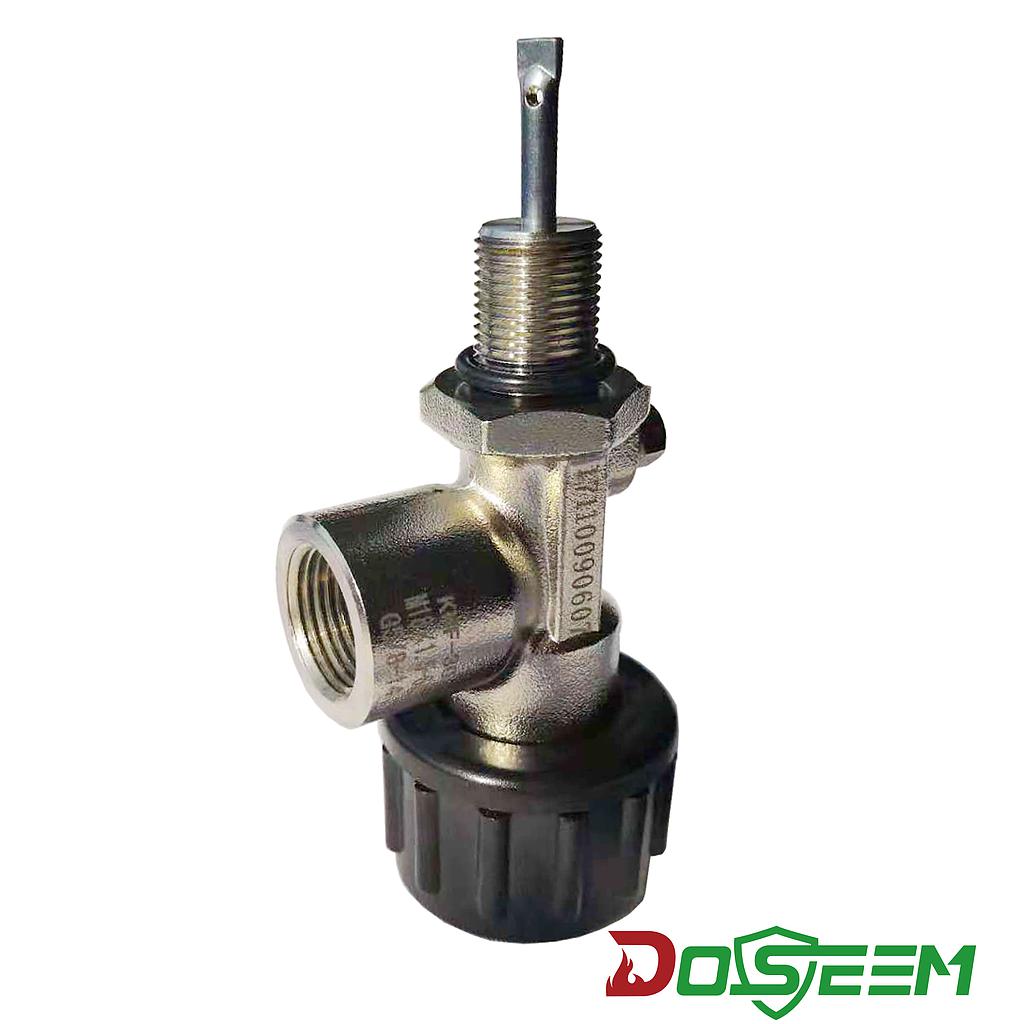

DOSEEM Self-locking cylinder valve KHF-30

DOSEEM Self-locking cylinder valve KHF-30

500.00 ¥ 500.0 CNY

500.00 ¥

加入购物车

The cylinder valve KHF-30 is an important part of the cylinder switch gas source. Its structure is a female threaded bottle valve. The thread is divided into two types: imperial G5/8 and metric M18*1.5. They are matched with the air cylinder and external thread reducer.


US 30-day money-back guarantee
物流时间表
售后

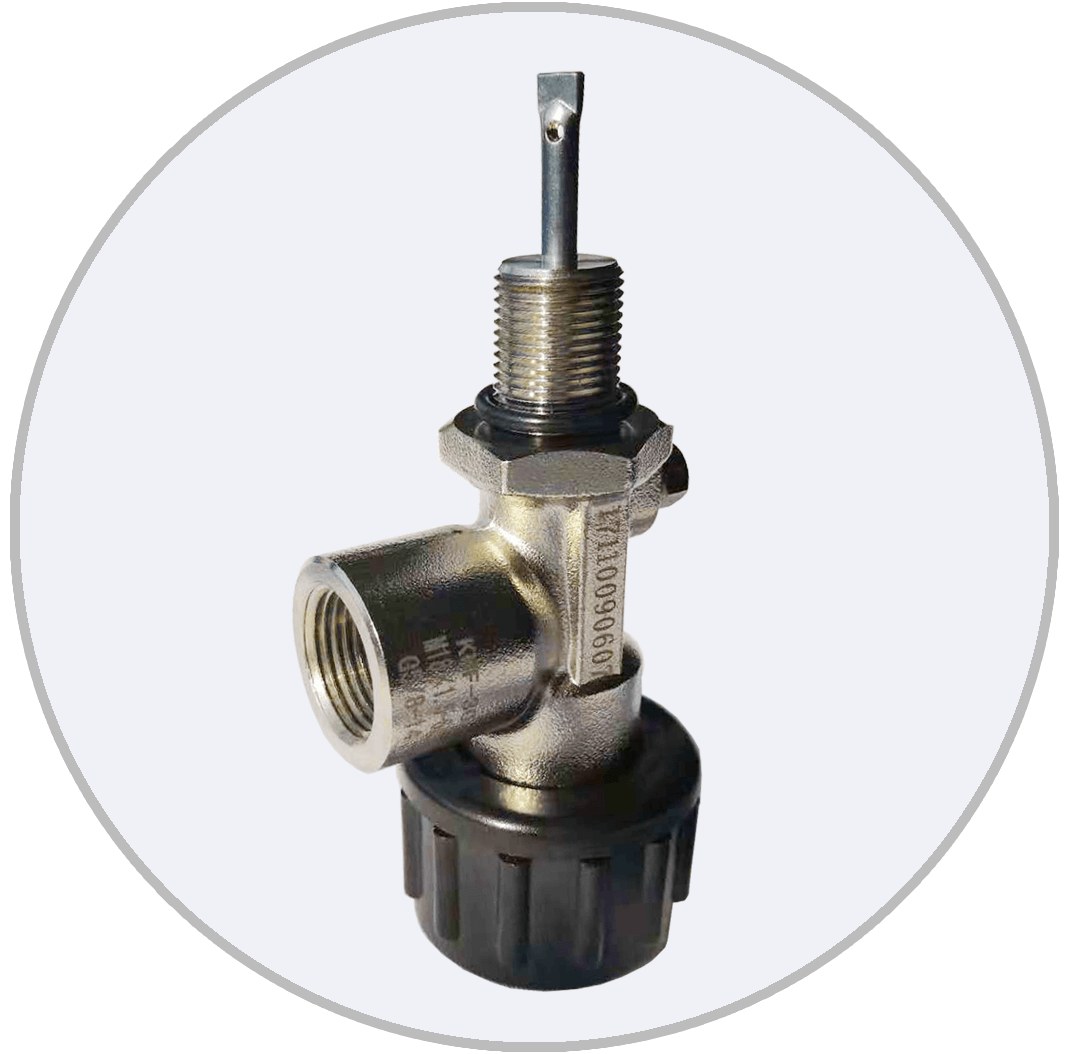

Self-locking cylinder valve

Article number: 02181

Introduction:

The cylinder valve is an important part of the cylinder switch gas source. Its structure is a female threaded bottle valve. The thread is divided into two types: imperial G5/8 and metric M18*1.5. They are matched with the air cylinder and external thread reducer. The cylinder valve of the internal thread structure is equipped with a high-pressure safety diaphragm. When the gas pressure in the cylinder exceeds 40.5MPa-45MPa, the safety diaphragm will burst and the gas will be rapidly relieved.

Odoo image and text block

Advantage:

High security

Cylinder valves built-in safety diaphragm, avoid high pressure cylinder bottle burst.

Self-locking function

The cylinder valve is automatically locked after being opened, which effectively prevents the wearer from causing the cylinder valve to close due to accidents during the operation, posing a safety hazard.

Technical parameter

Product name

Self-locking cylinder valve

Model

KHF-30

Size of external thread of bottle valve

M18*1.5-6H

Size of inner thread of bottle valve

G5/8

Heigth

110mm

Weight

0.48kg
Operating temperature
-40~60℃
Odoo - Sample 1 for three columns

download tech datas
