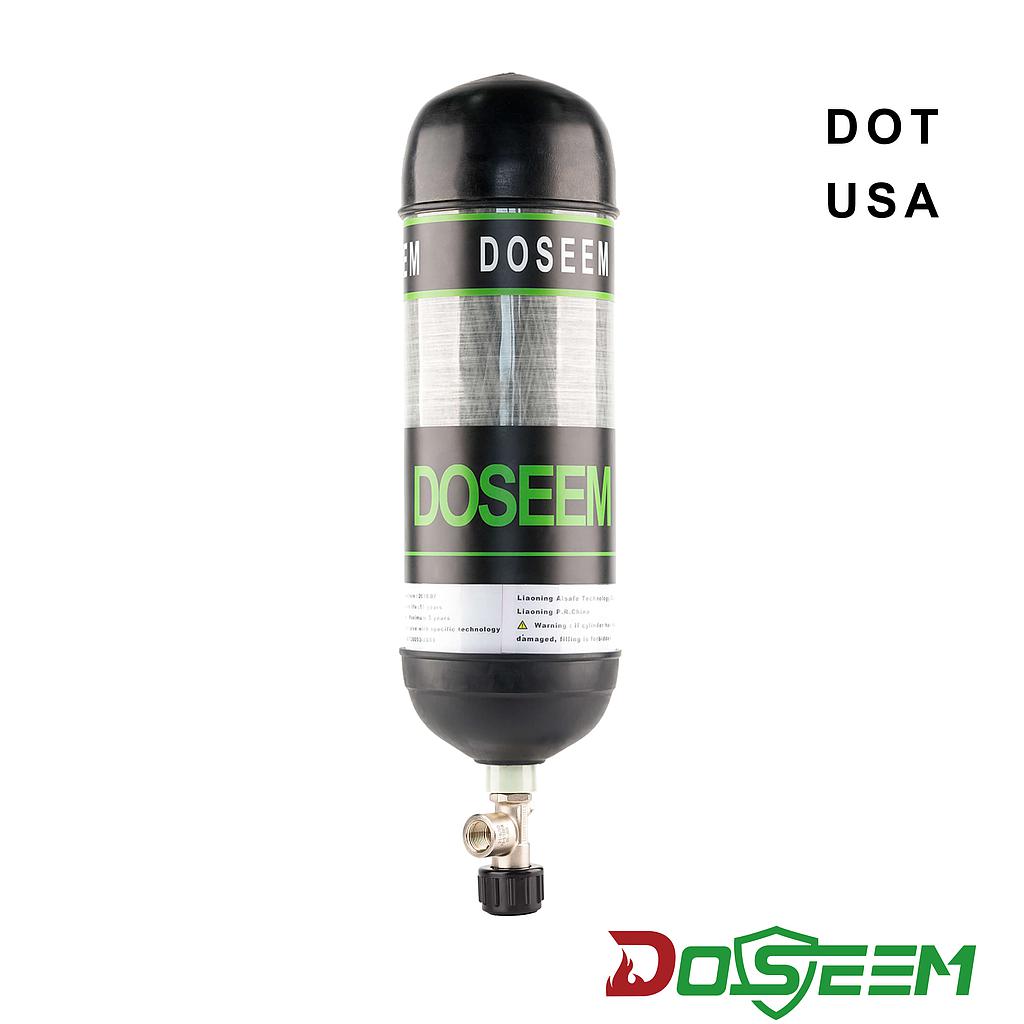

DOSEEM 6.8L Air cylinder (DOT) & Self-locking cylinder valve KHF-30
6.8L DOT Air cylinder is a high-pressure vessel for storing compressed air for human respiratory use. The rated storage pressure is 30 MPa.
KHF-30 Cylinder valve is a part of the cylinder switch gas source.
US 30-day money-back guarantee
6.8L Air cylinder & Self-locking cylinder valve
Article number: 02085

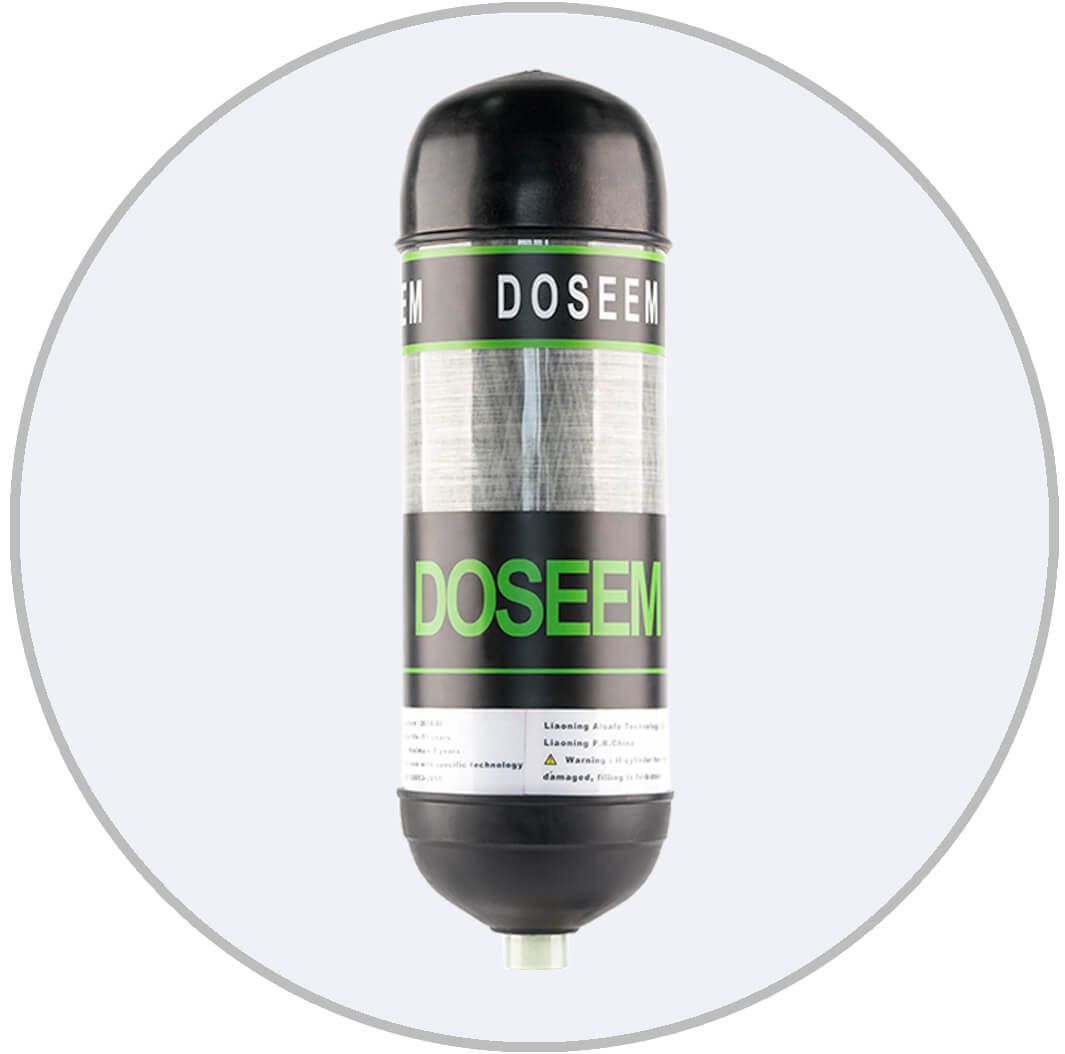

Carbon fiber composite gas cylinders are made of aluminum alloy liners with advanced equipment and processes. They are made of high-strength fibers such as carbon fiber and glass fiber, which are entwined with polymer materials. The gas cylinder is a high-pressure vessel for storing compressed air for human respiratory use. The rated storage pressure is 30 MPa. This gas cylinder is an international high-pressure cylinder.

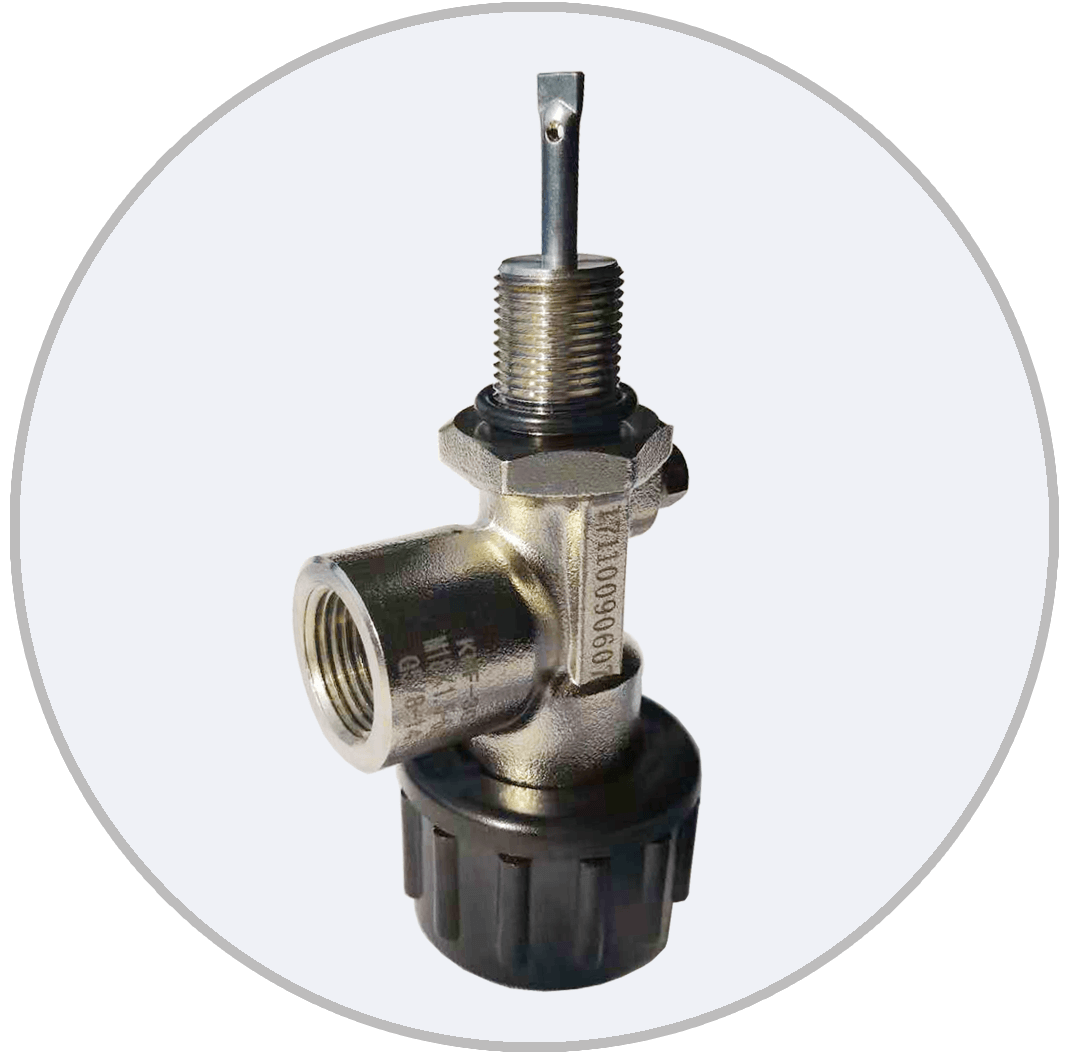

The cylinder valve is an important part of the cylinder switch gas source. Its structure is a female threaded bottle valve. The thread is divided into two types: imperial G5/8 and metric M18*1.5. They are matched with the air cylinder and external thread reducer. The cylinder valve of the internal thread structure is equipped with a high-pressure safety diaphragm. When the gas pressure in the cylinder exceeds 38MPa-45MPa, the safety diaphragm will burst and the gas will be rapidly relieved.
Advanced materials, durable
Seamless aluminum alloy liner with carbon fiber entanglement on the epoxy. The outer layer of the epoxy resin is wrapped around the cylinder with glass fiber. The outer layer of glass fiber is used to strengthen the anti-impact and anti-corrosion ability of the cylinder during use and maintenance. Epoxy resin after high temperature treatment, external gel coating on the surface of the cylinder to create a smooth, easy-to-clean surface for the cylinder.
Composite cylinders are difficult to conduct electricity and have neutralization in corrosive environments. Cylinder valves built-in safety diaphragm, avoid high pressure cylinder bottle burst. Have good elasticity and softness of the TPE pad holder, effectively protect the cylinder knock against fading.
Carbon fiber cylinder is about 50% lighter than the same volume cylinder, which greatly reduces the weight of the wearer during work and improves work efficiency.
You can choose from a wide variety of compressed air cylinders and configure respirators according to individual needs. Optional cylinder valves are available and can be configured with the cylinder configurator to meet customer requirements.
6061 aluminum alloy
First sandwich material
Second sandwich material
Size of external thread of bottle valve
Size of inner thread of bottle valve
Hydraulic test pressure
3 years / cycle
