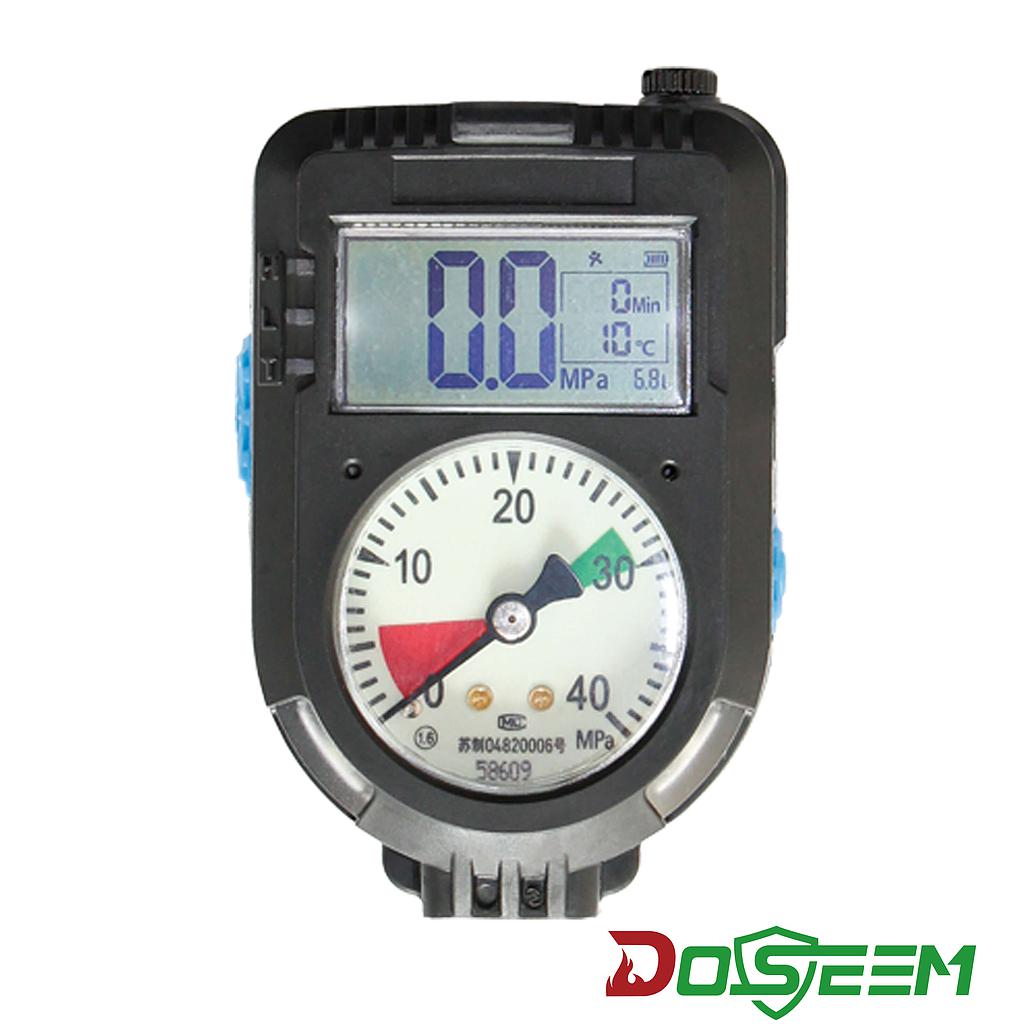

Both the pointer and the screen of the electronic pressure gauge (DSFSB-) can show the cylinder pressure.


US 30-day money-back guarantee
物流时间表
售后

DOSEEM Electronic pressure gauge

Article number: 02061

Type: DSFSB-1

Introduction:

Both the pointer and the screen of the electronic pressure gauge can show the cylinder pressure. At the same time, the data is transmitted to the HUD via Bluetooth to light up. Effectively avoid delaying the rescue time by looking down at the pressure gauge and affecting attention.

Odoo image and text block

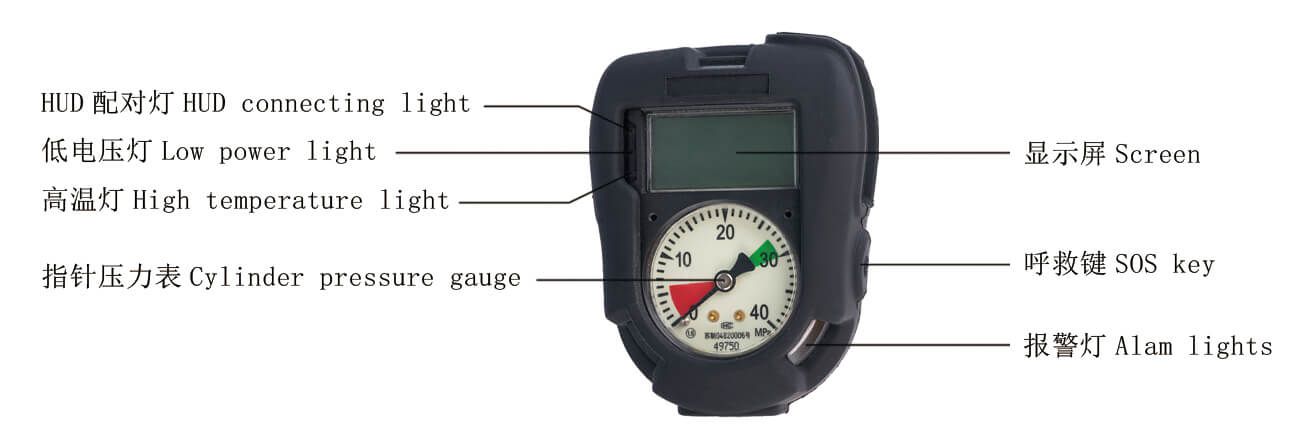

Advantages:

LED display

Electronic pressure gauge uses a high-brightness LED light source, display cylinder pressure, and it is clear. Display automatically adapts to the ambient brightness, and the pressure information can be clearly displayed even under conditions of insufficient light or strong light.

Low pressure sound and light warning

In addition to the low pressure alarm of the positive pressure respirator, if the cylinder pressure reaches the low pressure alarm value, electronic pressure gauge will emit sound and light alarms at the same time. This provides additional warnings to the operator.

Information display is comprehensive

Electronic pressure gauge can display cylinder pressure, remaining air volume, available air volume available time, on-site ambient temperature, and the respirator information is clear at a glance.

Bluetooth pairing

Electronic pressure gauge and HUD are paired through Bluetooth to realize real-time data transmission, which is convenient and fast, and reduces cost and connection errors.

Long usage time

Electronic pressure gauge has a continuous working time of more than 10 hours. Battery replacement is simple and convenient without using tools.

Quadruple protection

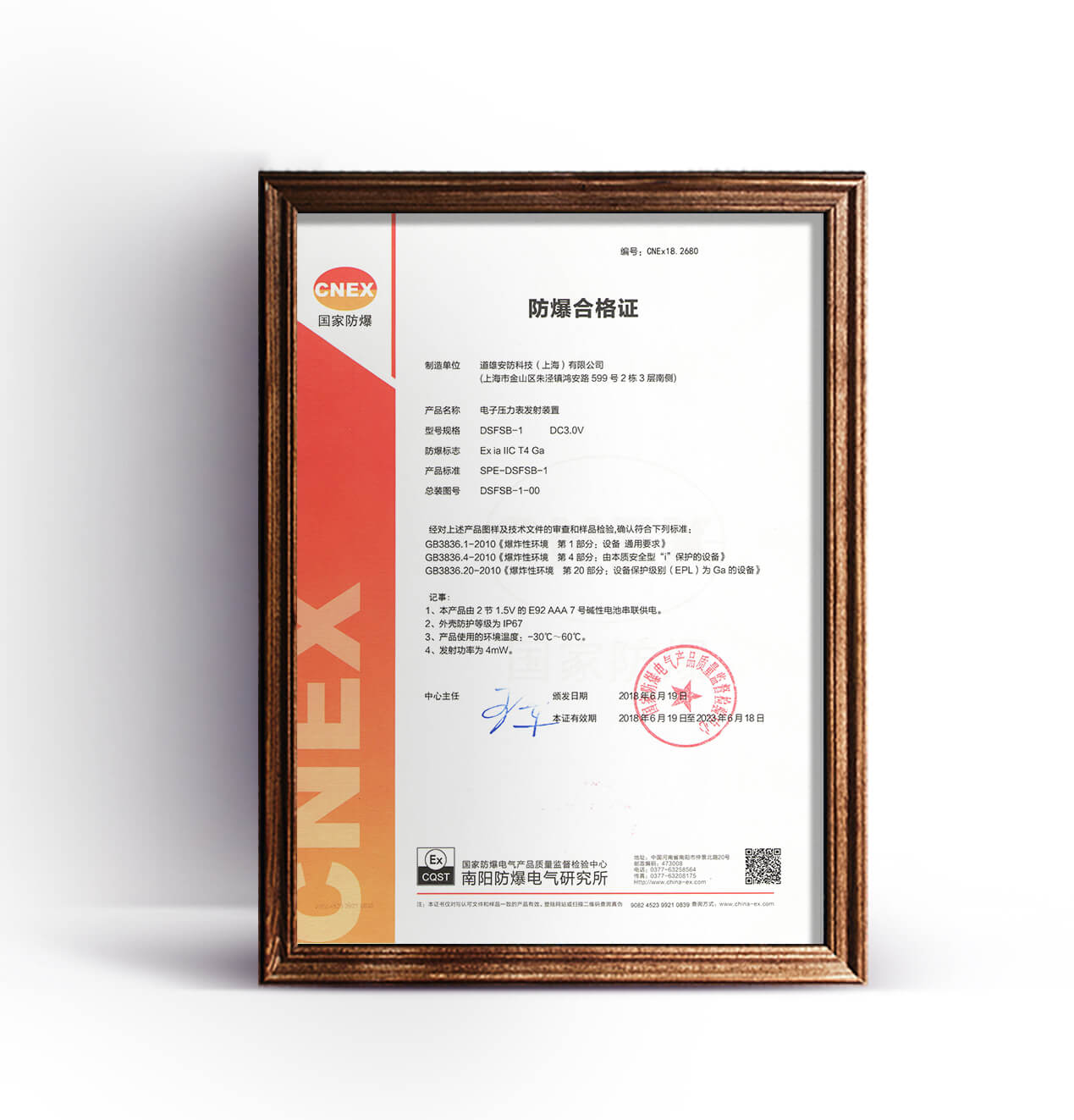

Waterproof, dustproof, drop-proof, explosion-proof (explosion-proof grade: Ex ia IIC T4 Ga). It can adapt to complex working environments.

Electronic pressure gauge parameters

Product name

Electronic pressure gauge

Model

DSFSB-1

Explosion-proof grade

Ex ia IIC T4 Ga

Pointer display table accuracy

Level 1.6

Digital pressure display accuracy

Level 1.6

Operating temperature

-30℃~60℃

Size

97mm*64mm*40mm

Weight

200g

Continuous working time

>10h

Continuous alarm time

>2h

Theoretical standby time

1 year

Continuous operating time when the battery is under voltage

>2h

Power supply battery

2 Section on the 7th batteries (E92 AAA 1.5V)

Odoo image and text block
Odoo image and text block
Odoo image and text block
Odoo - Sample 1 for three columns

download tech datas
