RHZK6.8/A (CCS) SCBA comprises full face mask, HUD, demand valve, air cylinder & valve, pressure reducer unit, backplate, electronic pressure gauge.
For marine.

US 30-day money-back guarantee

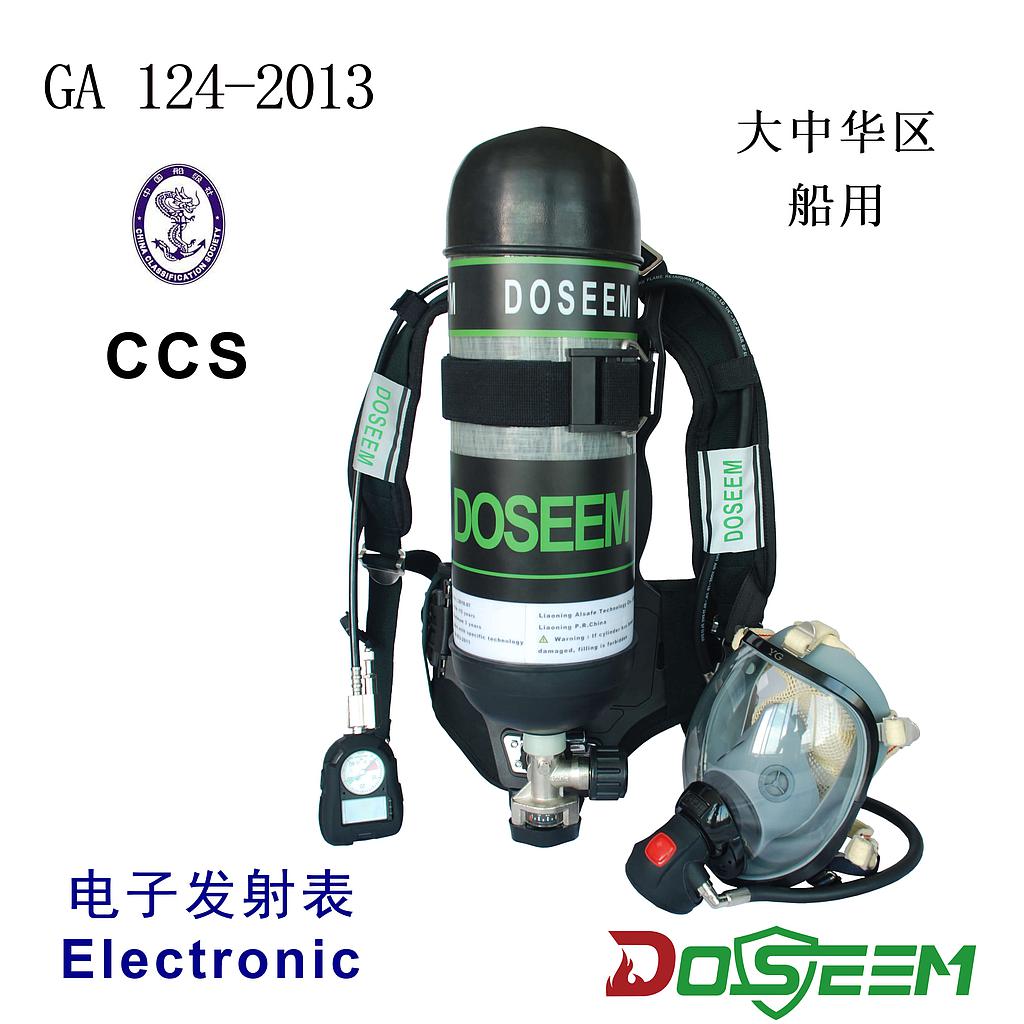

DOSEEM RHZK6.8/A (CCS) Self-contained Breathing Apparatus

Article number: 01015

Model: RHZK6.8/A



Fulfill the standard

GB/16556-2007; EN 137:2006

Approve: CCS

Software image and text block


DOSEEM RHZK self-contained breathing apparatus (SCBA) is widely used in fire control, chemical, ship, oil, smelting, electric power, warehouse, laboratory, mine and other key departments for fire fighting, fire, gas, steam, and oxygen. It is a safe and effective for fire extinguishing and rescue. An ideal personal breathing protection device.

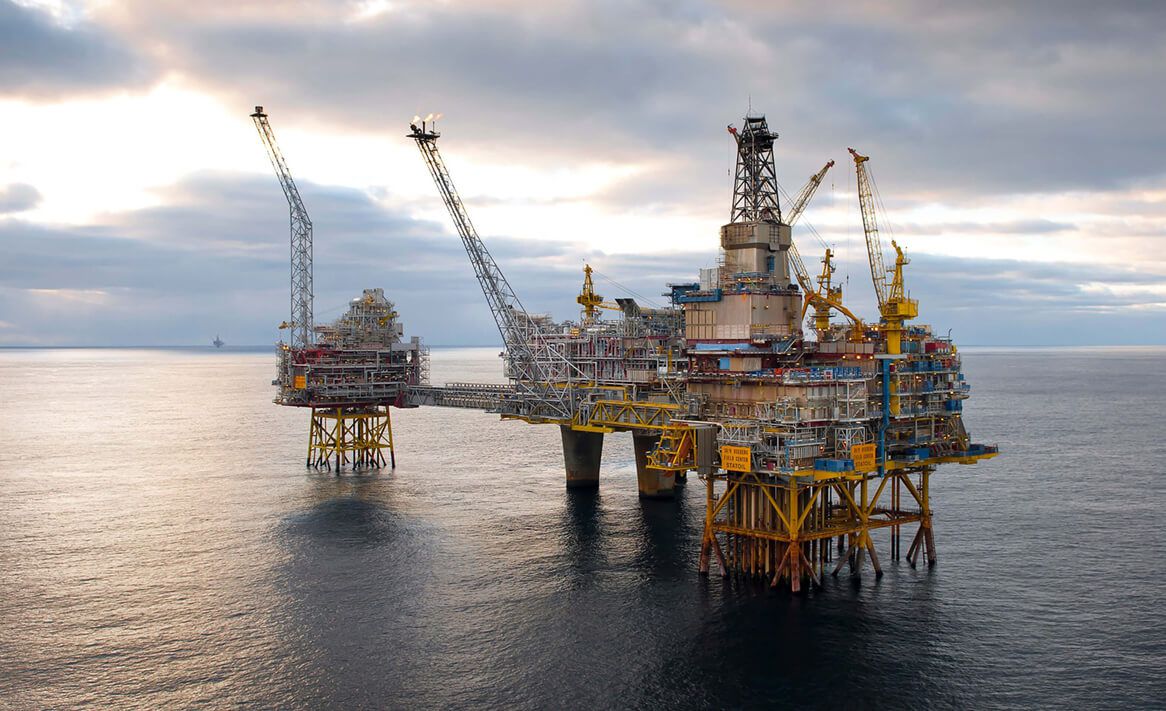

Recommended field: Marine offshore

Software image and text block
Software image and text block

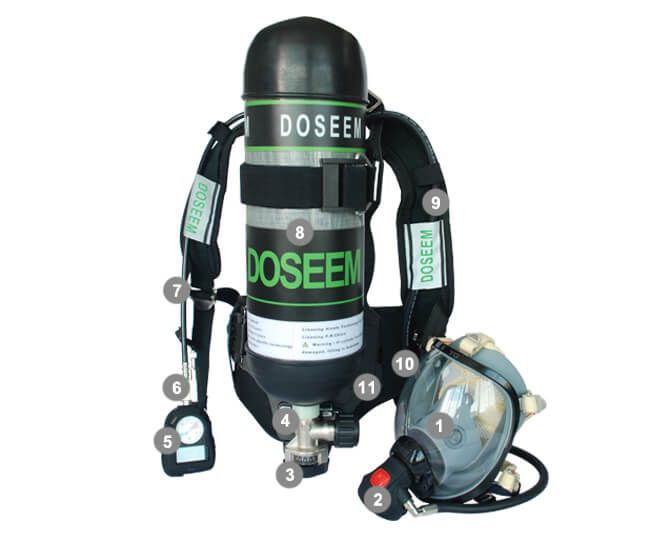

DOSEEM RHZK6.8/A SCBA comprises a full facemask, a HUD, a demand valve, an air cylinder, a pressure gauge cylinder valve, a pressure reducing valve, a high pressure tube, a medium pressure tube, a backplate, a warning whistle and a electronic pressure gauge.

Software image and text block

               1. Full facemask & HUD

               2. Demand valve

               3. Pressure gauge cylinder Valve

               4. Pressure reducing valve

               5. Electronic pressure gauge

               6. Alarm whistle

               7. High pressure tube

               8. Air cylinder

               9. Medium pressure tube

               10. Fast connector

               11. Backplate

Software image and text block

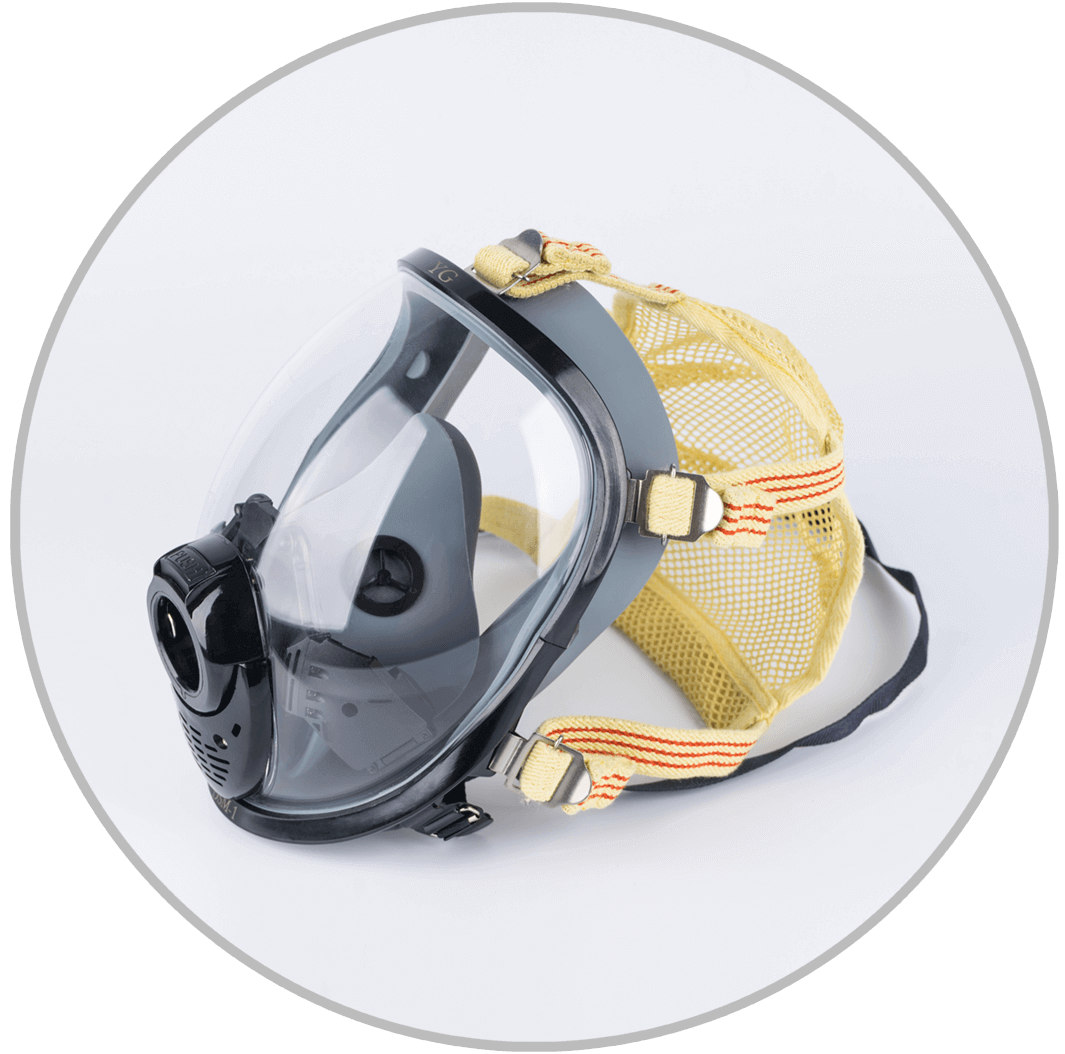

1. Full facemask

The full-face mask is a positive-pressure mask that adopts a single-eye window and a double-layer annular seal, and has the characteristics of wide vision and good transparency. The main frame of the face mask is made of silicone rubber material and has a small mouth nasal mask which is attached to the nose and mouth. It can enhance the full-face mask effective breathing space and reduce respiratory resistance. The face mask is made of polycarbonate, which is always clear, bright and fog-free during use. The head cover is connected with the fast clip with the tightening belt, and the tightening belt can be tightened to make the face mask double seal ring close to the wearer's face so as to ensure the safety of the user's breathing.

More & Tech Datas

Software image and text block

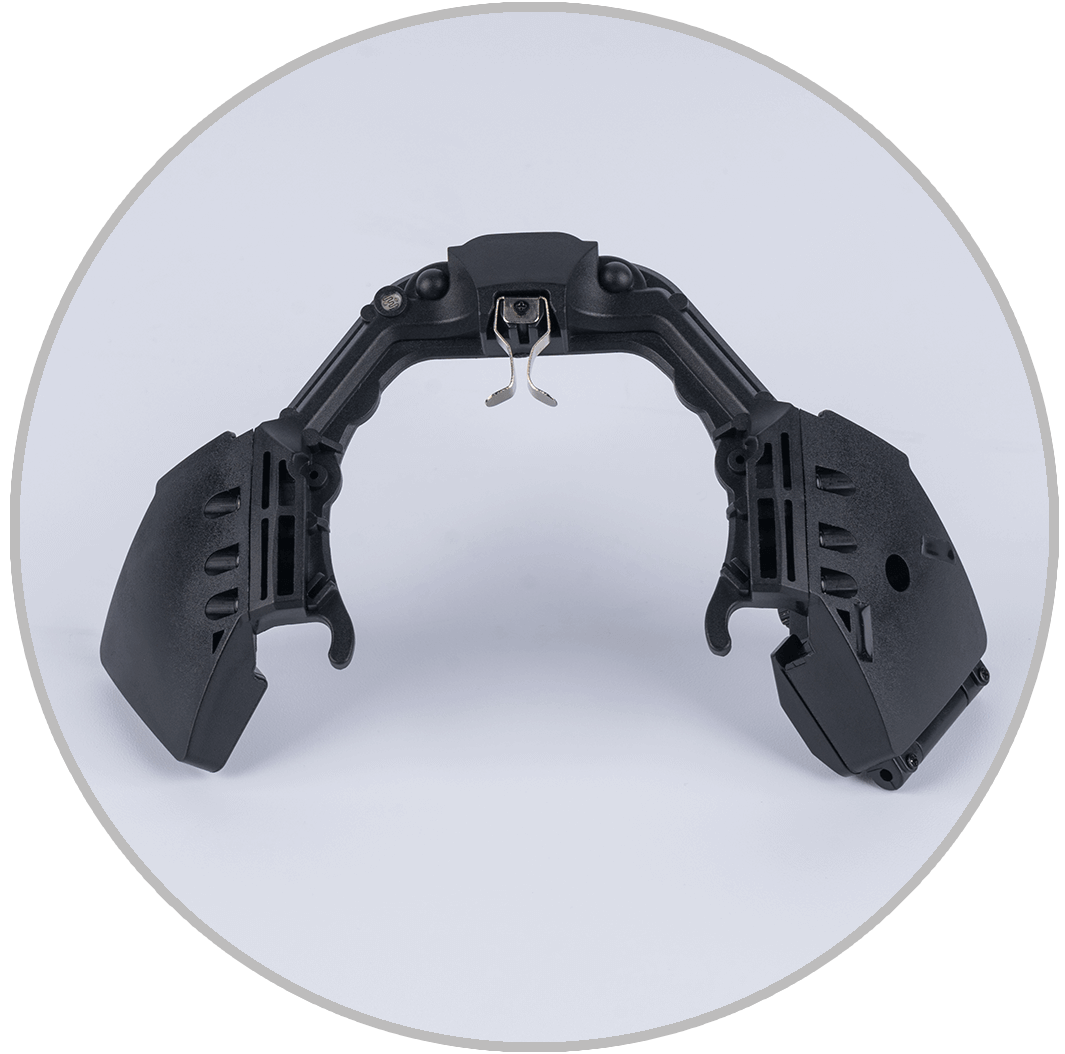

Pressure head-up display device

HUD is mounted on the double current side of the mask, and the color change of the air pressure indicator light can be seen, prompting the use of the gas cylinder. Green light: cylinder pressure above 10MPa; yellow light: cylinder pressure between 10~6MPa; red light: cylinder pressure below 6MPa.

More & Tech Datas

Software image and text block

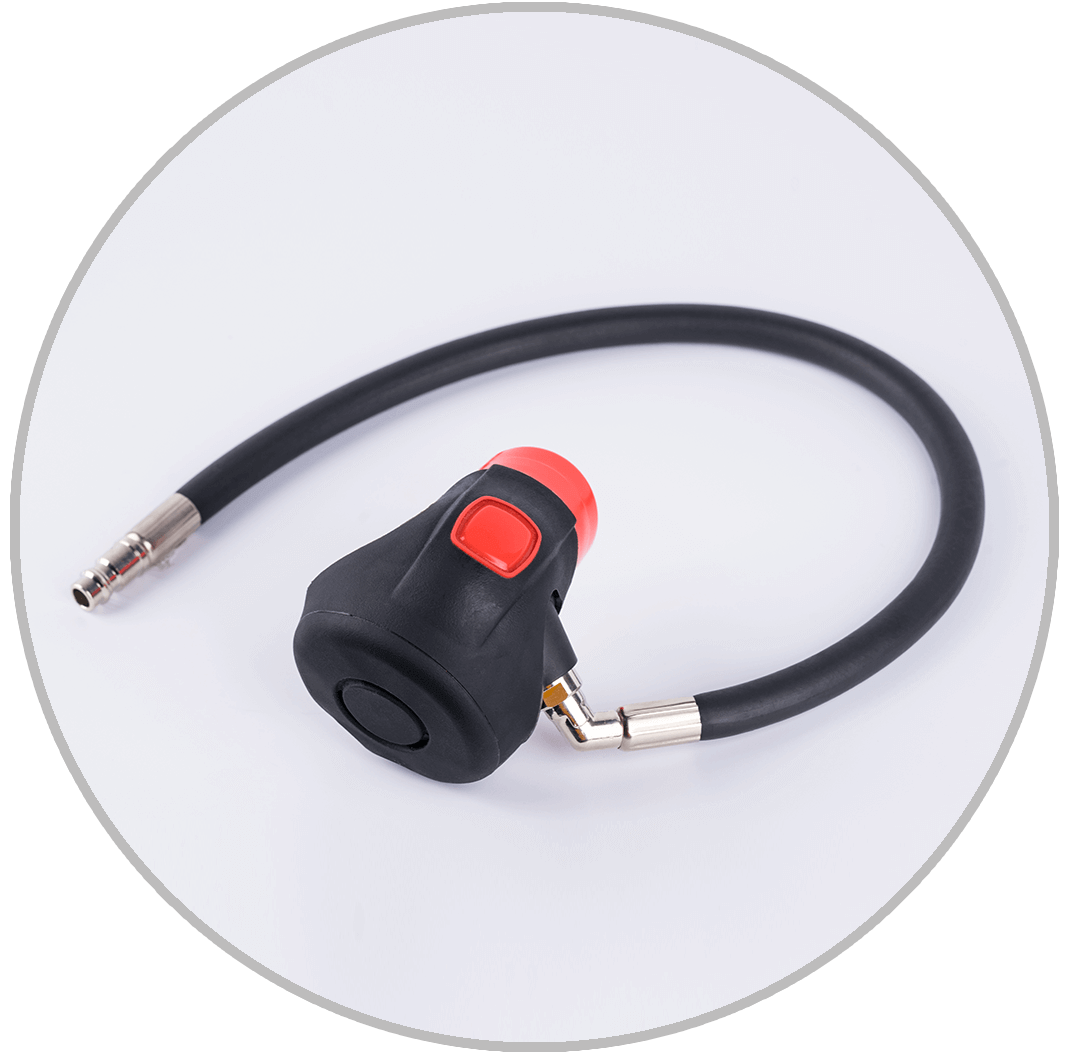

2. Demand valve

This demand valve is a plug-in type positive pressure demand valve. The air supply flow is greater than 300L/minute. Simply insert the mask during use and take a deep breath to open the demand valve for air. Operation method: Place the demand valve inlet Insert the mask directly, and hear a "beep" sound, indicating a smooth insertion. Take a deep breath and the demand valve will automatically open the air.

The bypass valve is a method for the use of an emergency valve designed on the demand valve: when the demand valve fails, the bypass valve button is directly pressed, and the demand valve can supply the mask directly to the air for the operator to evacuate and use.

More & Tech Datas

Software image and text block

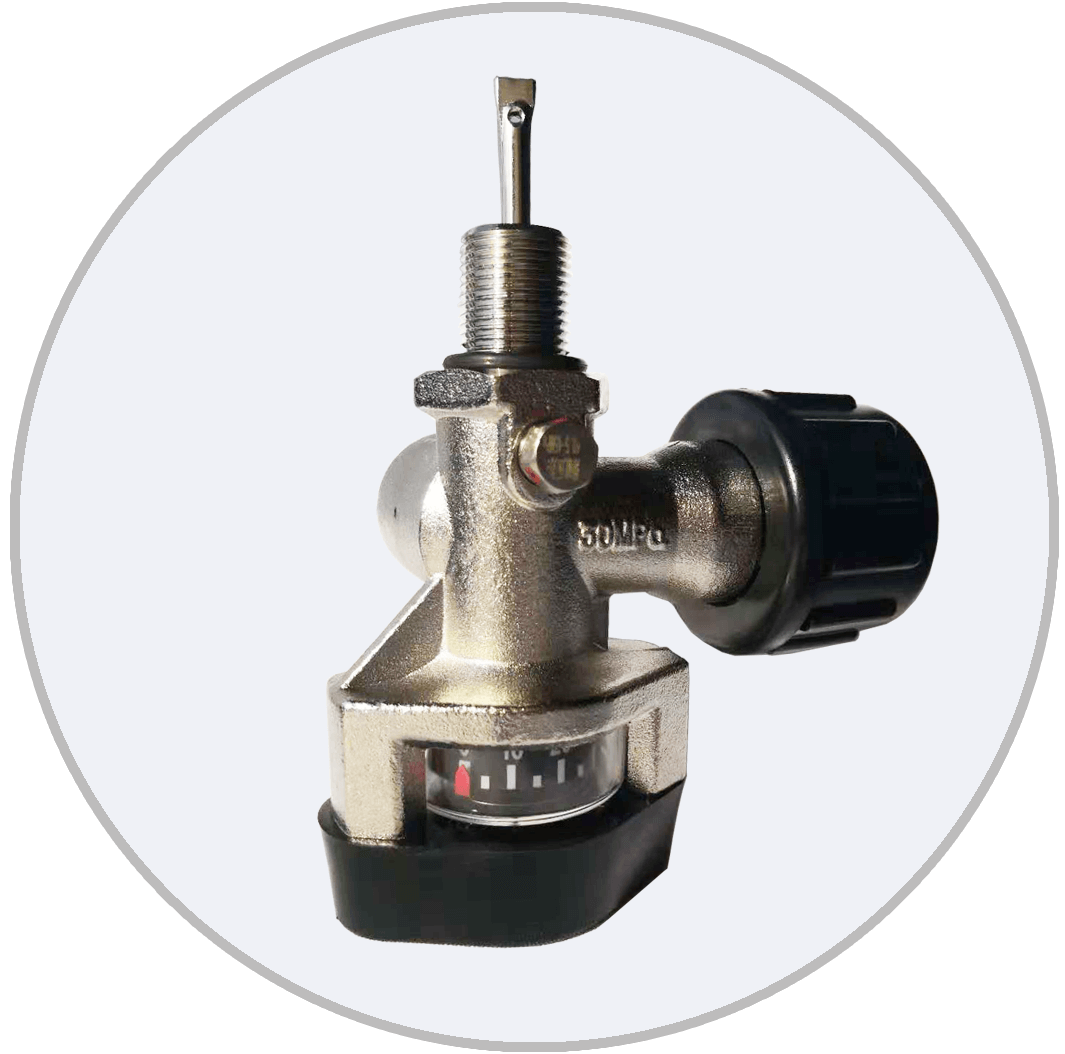

3. Pressure gauge cylinder valve

Air cylinder valve is an important part of the cylinder switch gas source. Its structure is a female threaded bottle valve. The thread is divided into two types: imperial G5/8 and metric M18*1.5. They are matched with the external thread reducer. The cylinder valve of the internal thread structure is equipped with a high-pressure safety diaphragm. When the gas pressure in the cylinder exceeds 38MPa-45MPa, the safety diaphragm will burst and the gas will be rapidly relieved.

The valve also can display the pressure of cylinder directly.

More & Tech Datas

Software image and text block

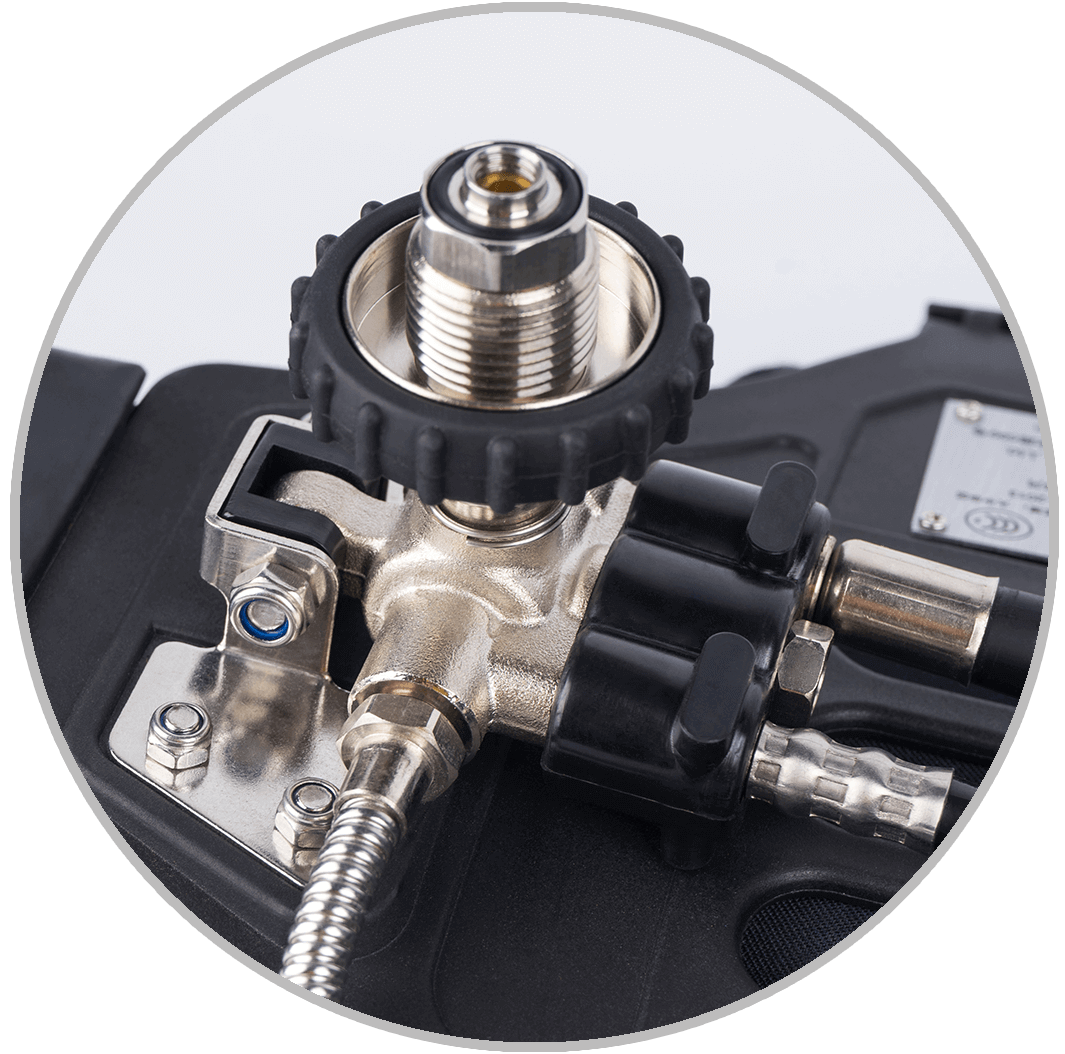

4. Pressure reducing valve

The pressure reducing valve is a device that depressurizes the high-pressure gas to a constant output pressure of 0.8±0.2 MPa and supplies the gas to the demand valve. The pressure relief valve is mounted on the backrest and is linked to the cylinder valve by the connection nut hand-wheel. The gas source output is divided into two parts: high pressure and low pressure. The high-pressure gas source gas is sent to the high pressure meter and residual gas alarm through the high pressure tube. After decompression, the low-pressure gas source is sent to the demand valve through the medium pressure tube, and the low pressure end is provided with a safety valve in the crucible cavity. Pressure relief valve and medium pressure tube, high pressure tube connection are plug-in type, the tube can rotate freely.

More & Tech Datas

Software image and text block

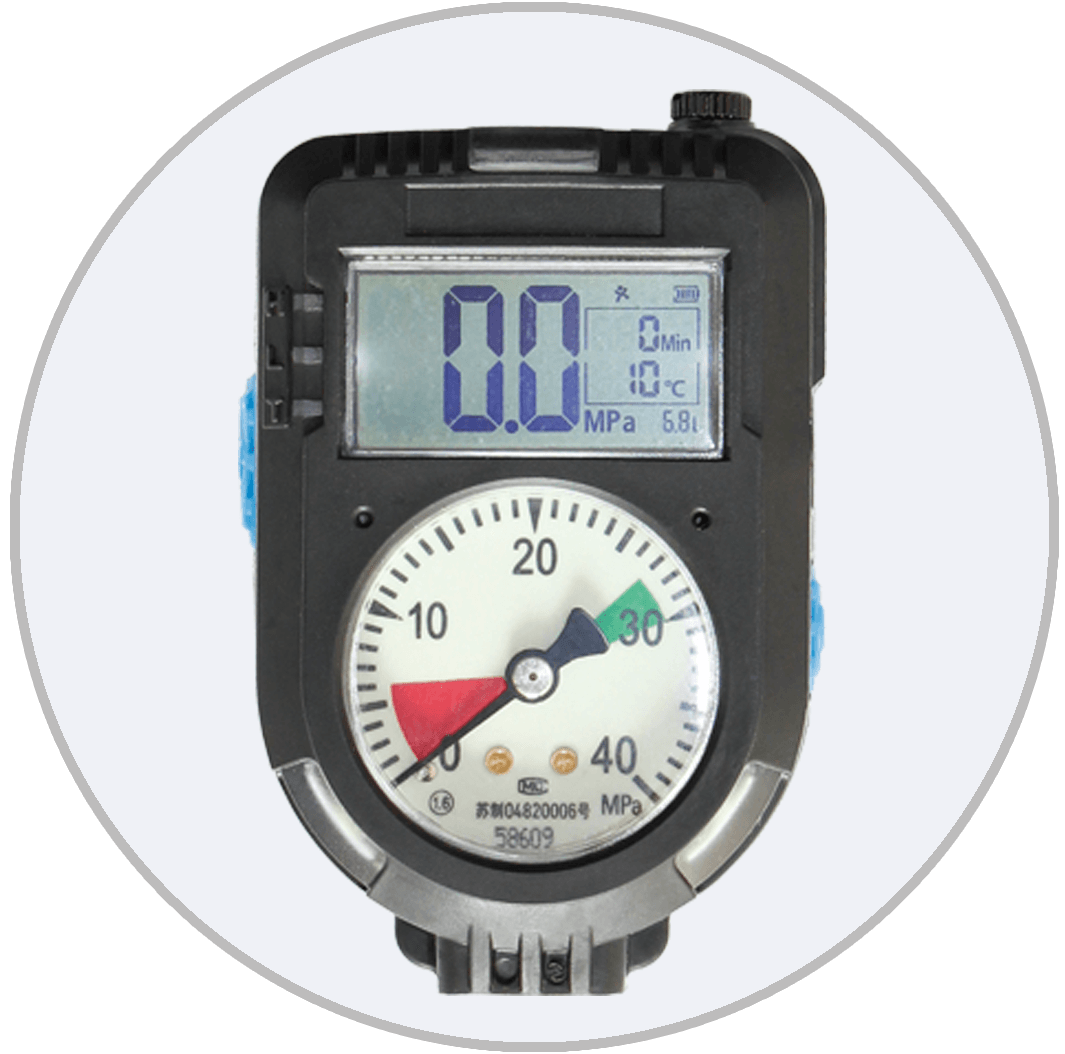

5.  Electronic pressure gauge

Both the pointer and the screen of the electronic pressure gauge can show the cylinder pressure. At the same time, the data is transmitted to the HUD via Bluetooth to light up.

Advantages: Effectively avoid delaying the rescue time by looking down at the pressure gauge and affecting attention.

More & Tech Datas

Software image and text block

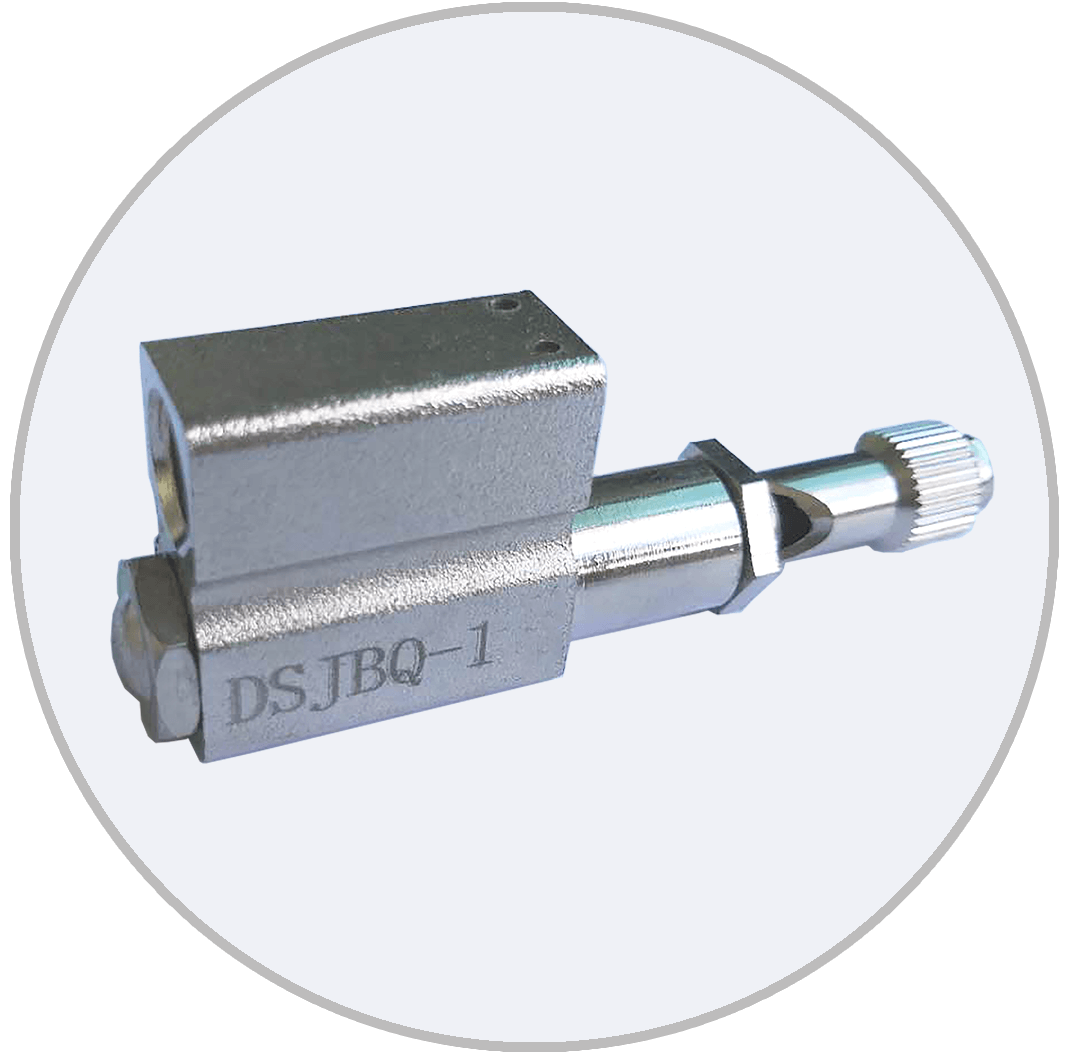

6. Alarm whistle

High pressure tube design combined with front alarm system, when the pressure in the bottle is less than 5±0.5MPa, it will automatically alarm, the alarm decibel is not less than 90db, and the alarm can be heard clearly in relatively noisy environment.

More & Tech Datas

Software image and text block

7. High pressure tube

The high-pressure tube is a pressure-resistant rubber tube, and it is responsible for delivering the high-pressure gas source to the high pressure meter and the residual gas alarm system. The combination of a high-voltage gauge and a residual alarm can both indicate the air supply pressure of the cylinder and give an audible alarm when the cylinder reaches the design approval pressure.

Software image and text block

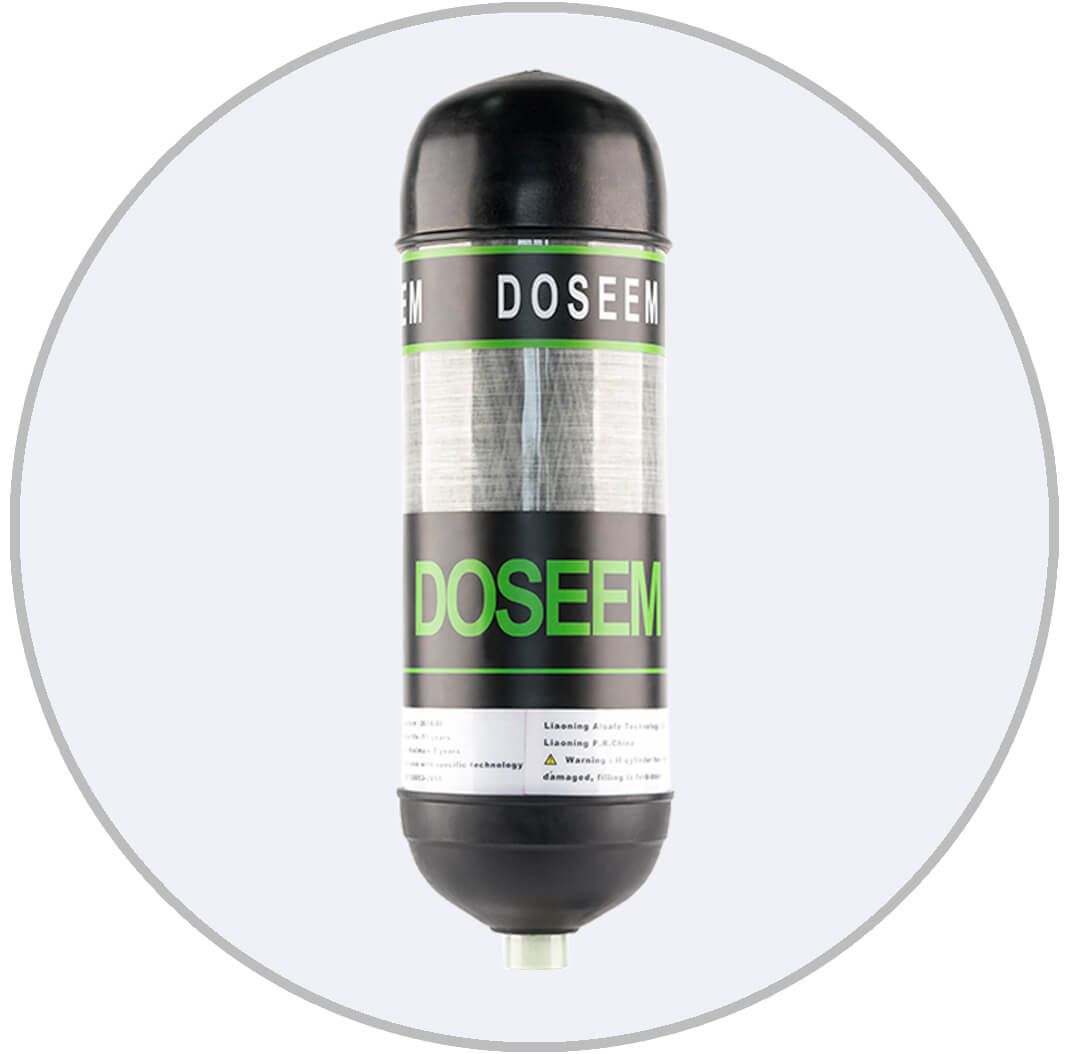

8. Air cylinder

The gas cylinder is a high-pressure vessel for storing compressed air for human respiratory use. The rated storage pressure is 30 MPa. This gas cylinder is an international high-pressure cylinder.

The process of carbon fiber composite cylinders: In the aluminum alloy liner, high-strength fibers such as carbon fiber and glass fiber are wound together with polymer materials.

Features: light weight, high strength, corrosion resistance, long service life.

More & Tech Datas

Software image and text block

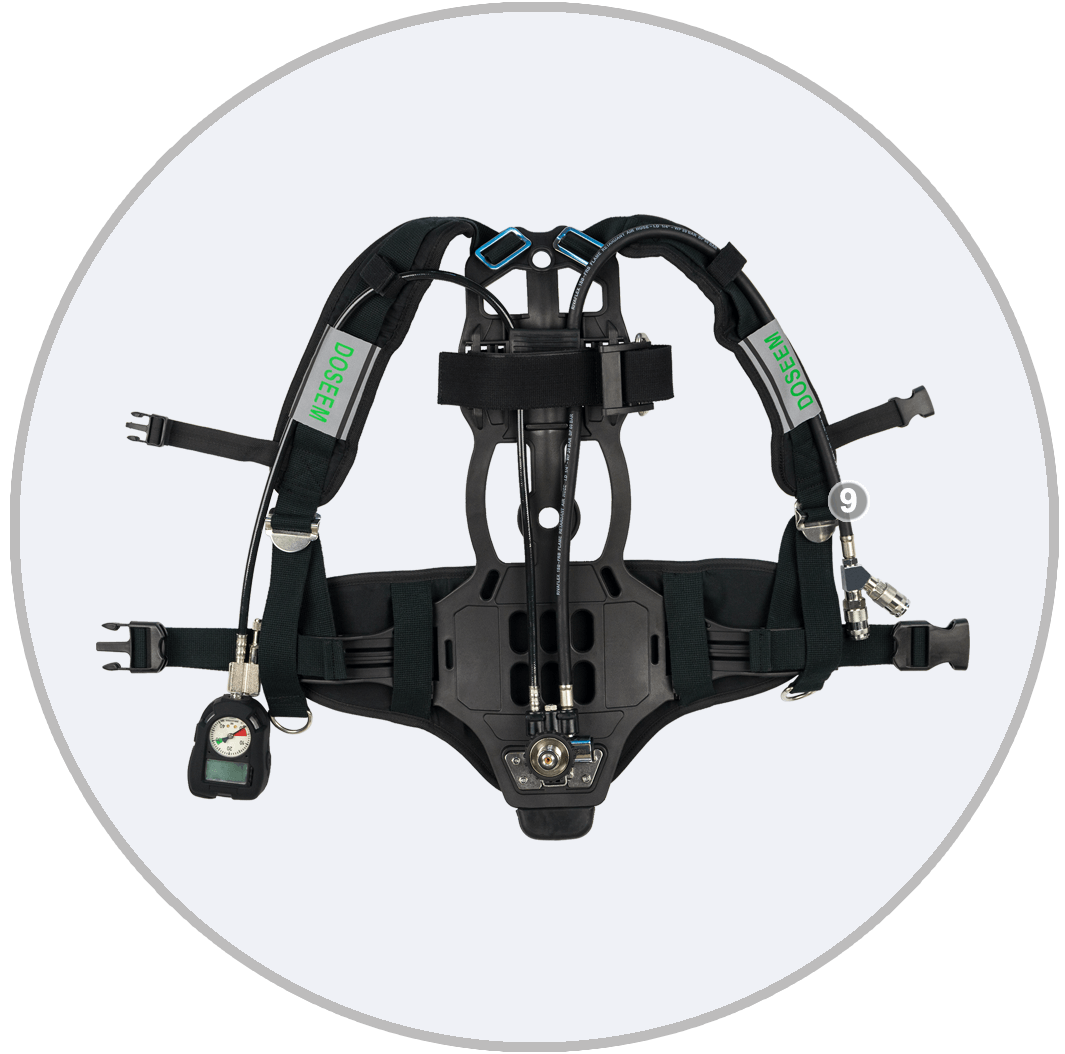

9. Medium pressure tube

The medium pressure tube is an air output flexible conduit composed of a rubber tube and a quick connector. One end is connected to an demand valve, and the other end is connected to a pressure reducer. The connection method is a card-type connection, which can be quickly loaded and unloaded, and can also be freely rotated in the same plane.

Software image and text block

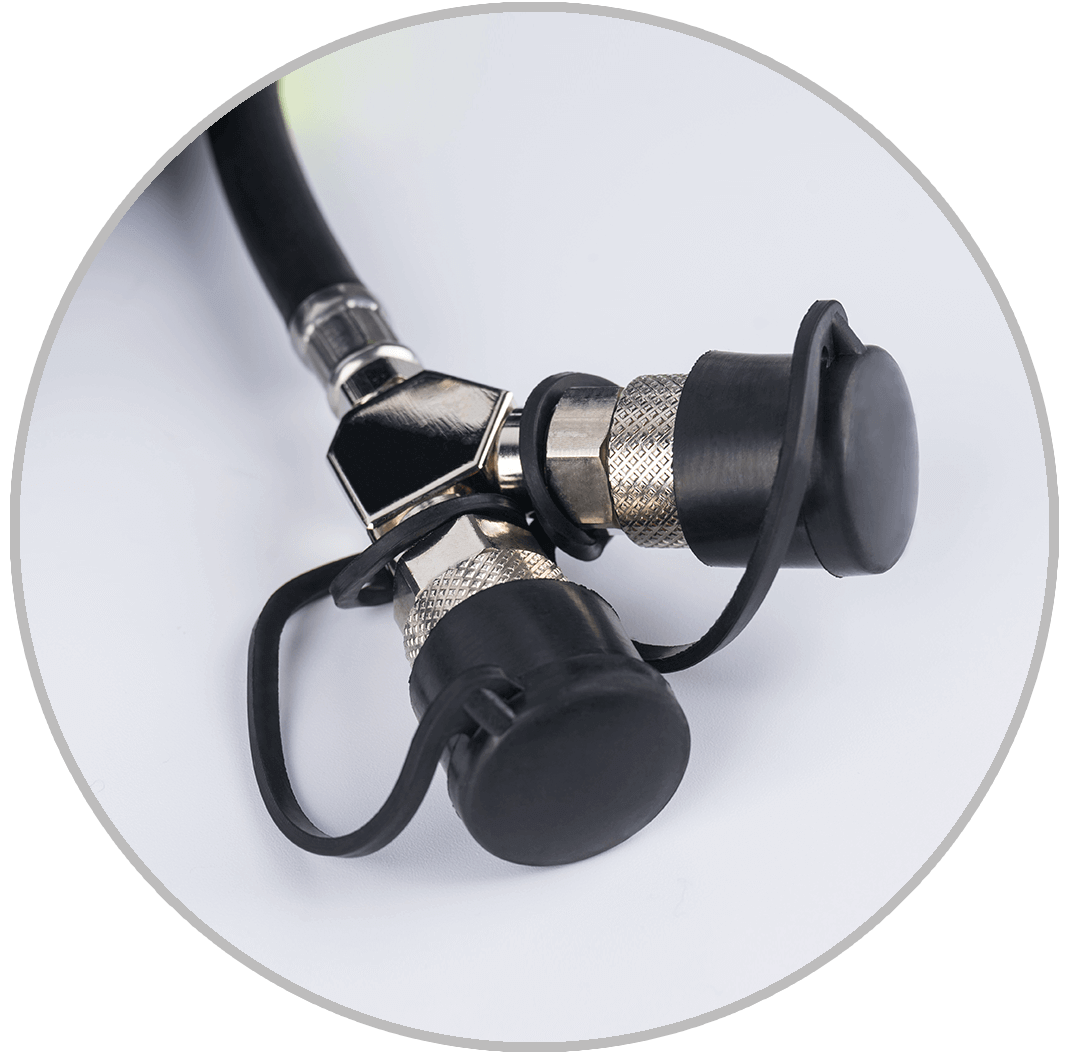

10. Fast connector

High safety standards

  • Imported stainless steel, no rust, corrosion resistance, no deformation resistance

  • Fast locking, convenient loading and unloading

  • Strong air tightness

  • Use safety

Software image and text block

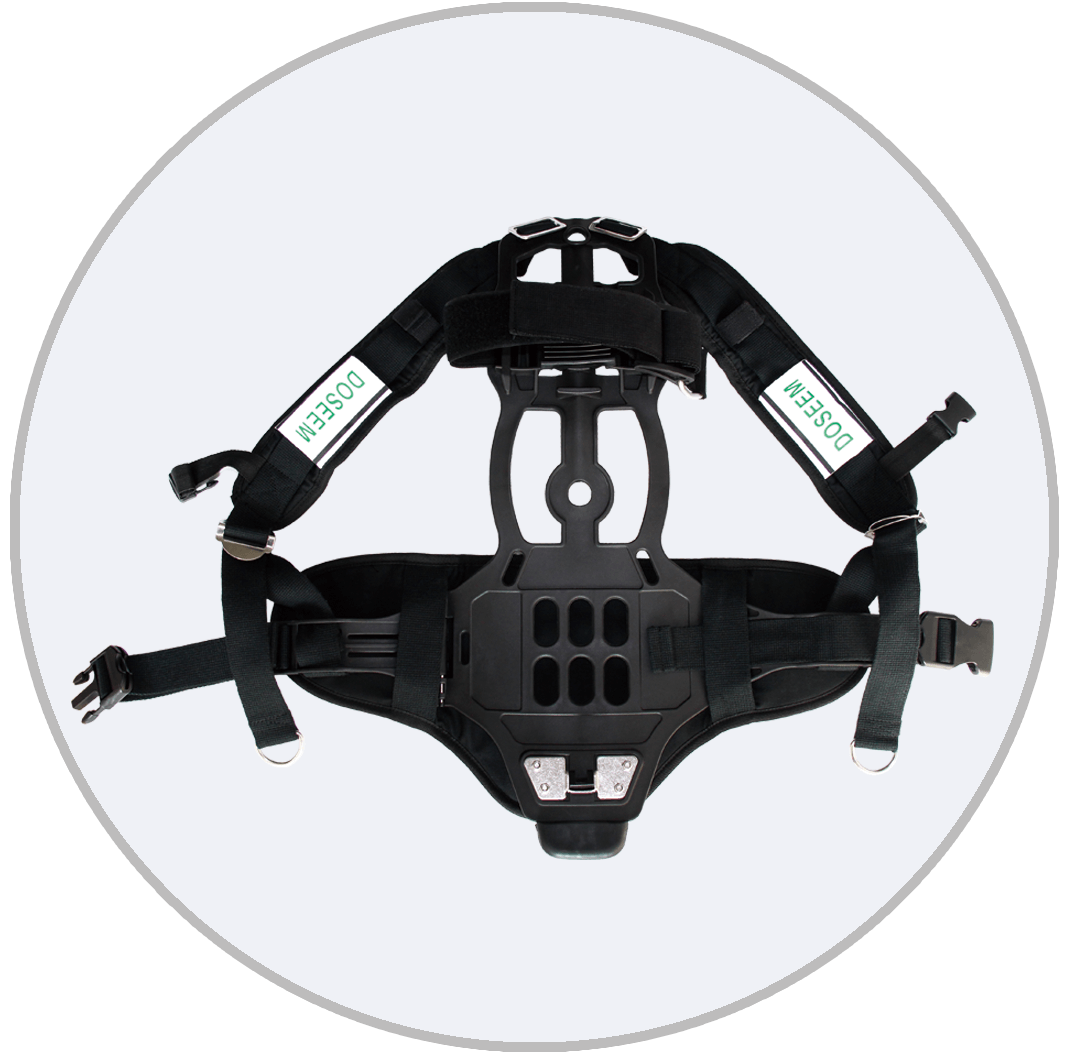

11. Backplate

The role of backplate is to support the fixed cylinder and pressure reducer. The weight on the backplate is evenly distributed on the shoulders by the straps. The strap consists of a shoulder strap and a waistband. Both can be quickly adjusted in length so that the backrest rests on the back and buttocks of the human body. The gas cylinder is fixed on the backrest by a quick fixing device, and the diameter of the cylinder can be adjusted to fix the length of the cylinder.

More & Tech Datas

Software - Sample 1 for three columns
Software - Sample 1 for three columns
Software - Sample 1 for three columns

DOSEEM RHZK6.8/A Advantages:

Optimized design, easy to use

DOSEEM RHZK6.8/A SCBA is one of the lightest fire breathing apparatus in the world. Innovatively developed an ergonomic backsheet with outstanding resistance to heat radiation, abrasion, tear and chemical resistance. Even in the harsh fire environment, DOSEEM RHZK6.8/A respirator is very comfortable to wear and stable. DOSEEM RHZK6.8/A not only obtained the latest CCCF mandatory fire certificatiom an LA certification from the Ministry of Public Security, but also passed the EN137 1000℃ high temperature flame test, which has excellent anti-wear and anti-heat radiation characteristics.

Easy maintenance

During service and maintenance, in order to minimize downtime and minimize costs, DOSEEM RHZK6.8/A incorporates a number of unique designs, all of which can be easily removed or reconnected from the backplane using simple tools. The strap is attached to the backing plate by a single adjustment of the innovative design. The snap connection of the primary pressure relief valve allows the pneumatic section to be quickly installed or removed from the respirator. The tubing can be quickly removed and cleaned from the backing plate.

Enhanced backpack system

DOSEEM RHZK6.8/A integrates a strap that can be precisely attached to the backplate. Advanced extruded waterproof EVA harness material is protected by a CR rubber edge seal that resists tearing and wear. The wear-resistant and flame-retardant FR-TPE belt ensures a tight fit on the user's body even during large movements. The refined stainless steel metal lock makes the RHZK6.8/A quality more convenient and easy to use.

Pressure head-up display device

It is convenient for firefighters to check the pressure of the cylinder at any time and completely liberate the hands. DOSEEM pressure head-up display device consists of an electronic pressure gauge and HUD. The special technology of DOSEEM ensures the accuracy of data transmission and the uniqueness of pairing.

Pipeline integration, safe and reliable

In order to reduce the danger of being hooked and avoid physical damage, pressure tube and the air supply tube are integrated in the backplane clamp of DOSEEM RHZK6.8/A backboard, which not only prevents thermal radiation impact, but also greatly enhances the safety of the enclosed space environment entering and working.

The best performance strap material

RHZK6.8/A uses state-of-the-art harness materials designed to withstand the high wear and tear that firefighters face every day. The product is equipped with a durable stainless steel lock and a long-life aramid blending belt, making it ideal for long wear and frequent use.

Software image and text block

Technical parameter

Machine parameters



Expiratory resistance (25 times/min)




Expiratory resistance (40 times/min)


Storage capacity


Operating temperature


Maximum air flow


The whole weight


Working pressure


Alarm intensity


Alarm pressure


Light work usage time


Static pressure in a mask cavity


Moderate work usage time


Suction resistance


Heavy work usage time

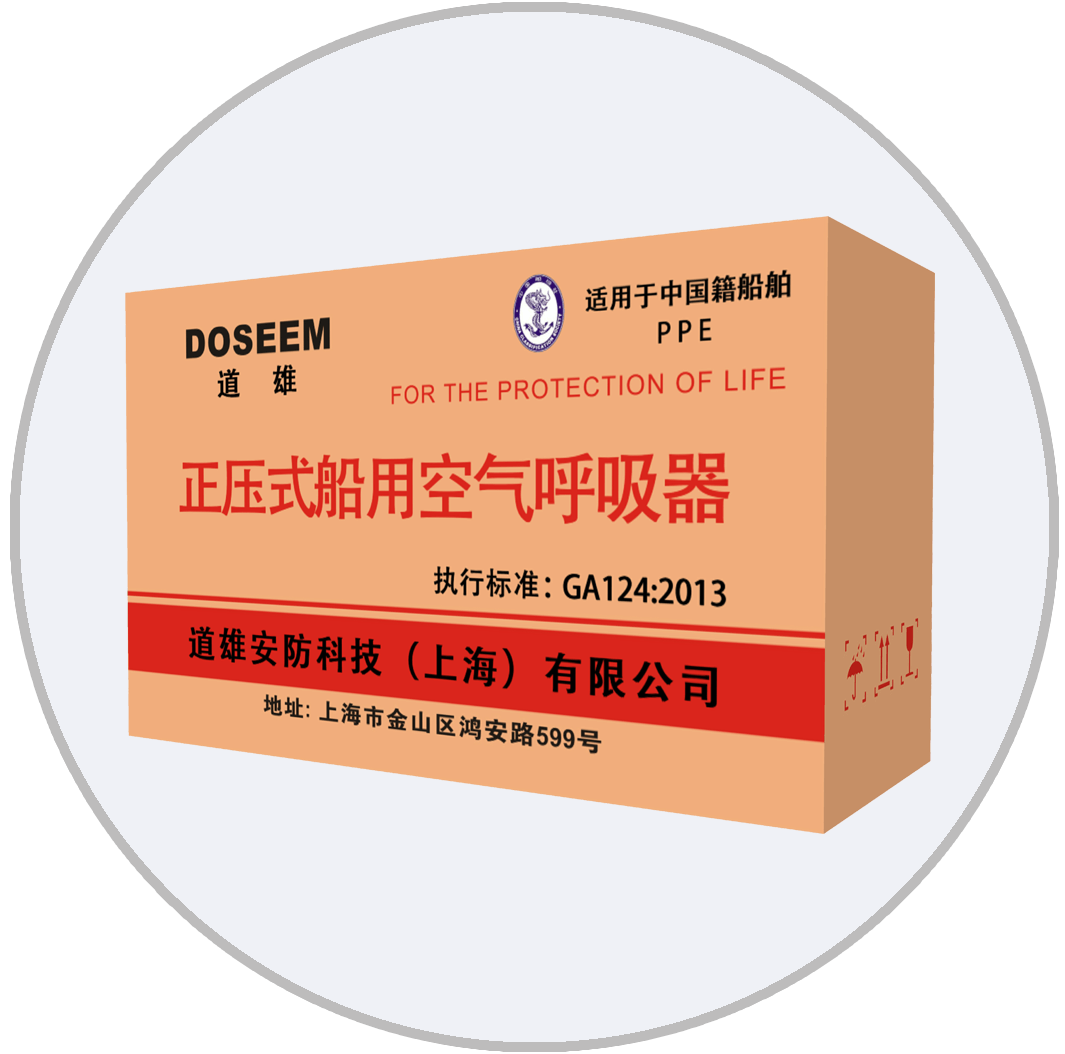

Packing parameters

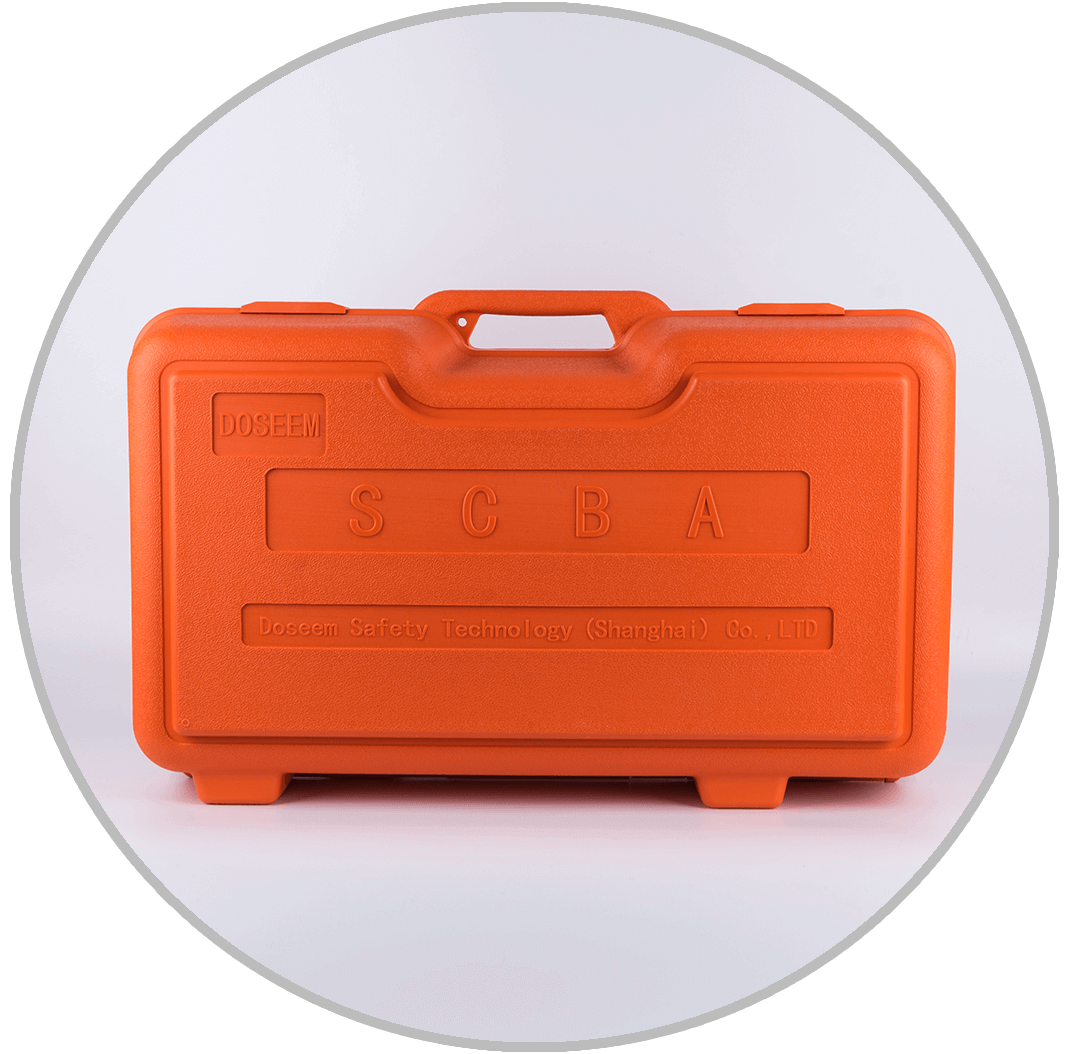

Inner packaging

Material: PC/ABS

Size: 70cm * 29cm * 43cm

Outer packing

Material: moisture-proof carton

Size: 71cm * 30cm * 44cm
